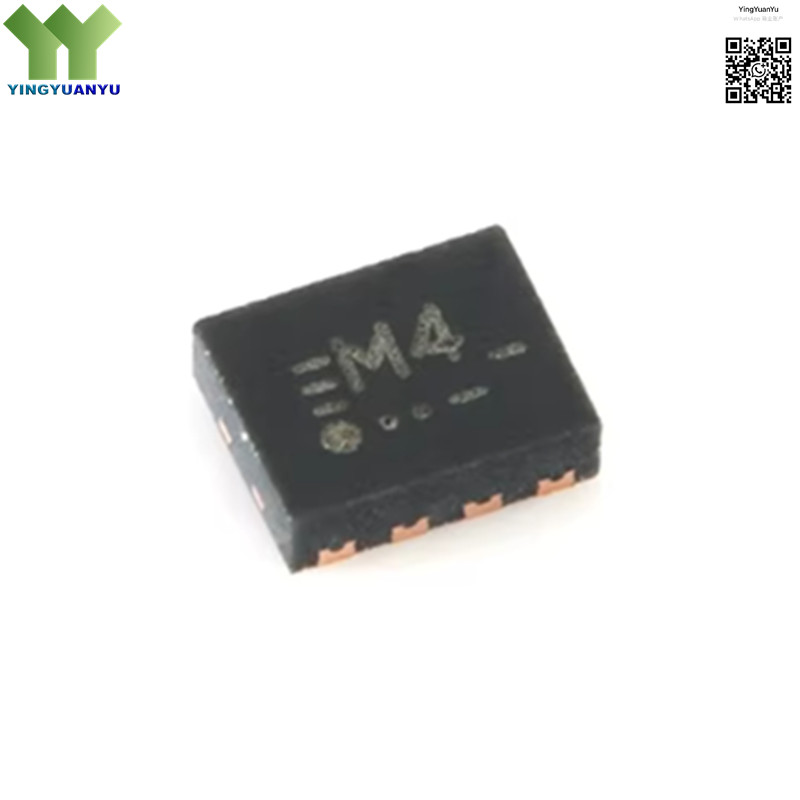

IP4252CZ8-4-TTL,13
IP4252CZ8-4-TTL,13
| Part Number | IP4252CZ8-4-TTL,13 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | ESD Protection Devices; Quad-Channel ESD Protection Arrays |
| Description | 4-Channel Ultra-Low Capacitance ESD Protector, IEC 61000-4-2, High Signal Integrity, WSON-8-EP(1.4×1.7) Package |
Product Overview
The IP4252CZ8-4-TTL,13 is a high-performance quad-channel ESD (Electrostatic Discharge) protection array designed to safeguard sensitive high-speed data interfaces and I/O ports in modern electronic systems. It offers ultra-low input capacitance to preserve signal integrity, complies with strict IEC 61000-4-2 ESD standards, and provides robust protection for four independent signal lines. The device features low clamping voltage, fast response time, and minimal leakage current, making it ideal for high-frequency interfaces, sensor lines, and low-voltage digital circuits. Housed in a compact WSON-8-EP(1.4×1.7) surface-mount package, it delivers reliable ESD protection for space-constrained portable, consumer, and industrial electronics.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | NXP Semiconductors |
| Channels | 4 Independent ESD Channels |
| ESD Standard | IEC 61000-4-2 Support |
| Capacitance | Ultra-Low Capacitance |
| Package Type | WSON-8-EP(1.4×1.7) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Speed Data Interface ESD Protection
- I2C, SPI, UART, GPIO Signal Lines
- Portable & Wearable Electronics
- IoT Sensor & Module I/O Protection
- Consumer Electronics & Mobile Devices
- MCU & FPGA I/O Pin Protection
- Industrial Control & Communication Ports
- High-Frequency & Low-Voltage Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
