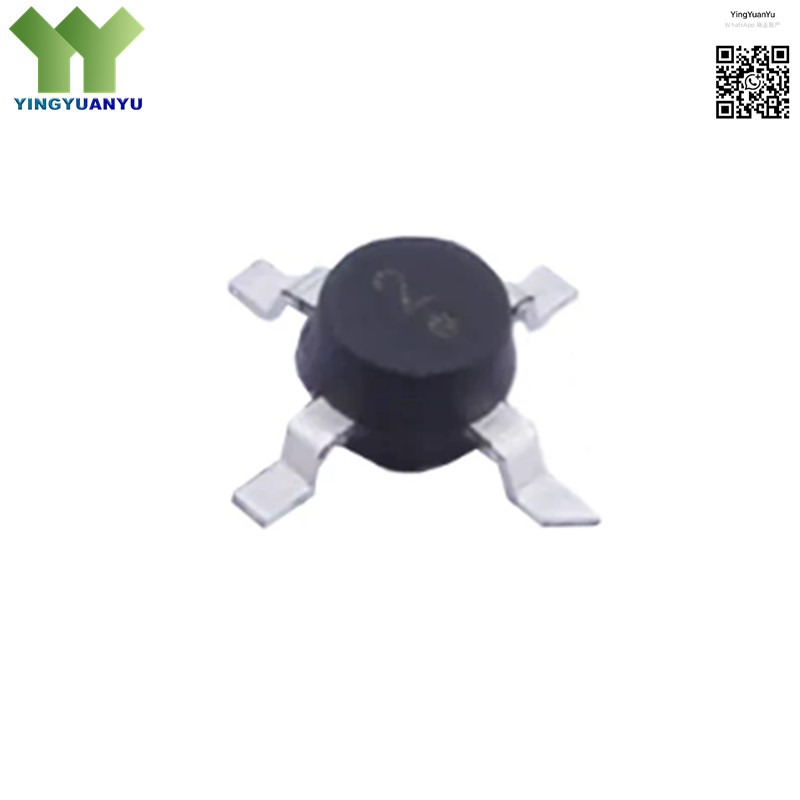

ERA-2SM+
ERA-2SM+
| Part Number | ERA-2SM+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Amplifiers; Broadband MMIC Gain Block Amplifier |
| Description | Wideband MMIC Amplifier, DC to 6 GHz, 50Ω, Single Supply, 10.7dB，4-SMD (Micro-X Style, WW107T) Package |
Product Overview
The ERA-2SM+ is a high-performance, wideband monolithic microwave integrated circuit (MMIC) amplifier designed for RF and microwave applications from DC to 6 GHz. This linear gain block features an internally matched 50Ω impedance, high dynamic range, and unconditional stability, ensuring consistent performance across the entire frequency spectrum. Operating from a single 3.2V to 3.6V supply, it delivers reliable gain with low power consumption and minimal variation over temperature. Housed in a compact 4-SMD Micro-X style package, the ERA-2SM+ is ideal for surface-mount assembly in space-constrained designs, offering excellent thermal efficiency and transient protection for robust operation in demanding environments.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | Symbol, Footprint, 3D Model Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | DC to 6 GHz |
| Impedance | 50Ω (Internally Matched) |
| Supply Voltage | 3.2V to 3.6V (Single Supply) |
| Supply Current | 40mA (Typical) |
| Package Type | 4-SMD (Micro-X Style, WW107T) |
| Operating Temperature | -45°C to +85°C |
Typical Applications
- Cellular and PCS Communication Systems
- CATV, DBS, and WLAN RF Front-Ends
- Broadband Test and Measurement Equipment
- RF Signal Processing and Gain Stages
- Microwave Radio and Satellite Communication
- Industrial, Scientific, and Medical (ISM) Bands
- High-Dynamic-Range Receiver Designs
- Low-Power Portable RF Devices
