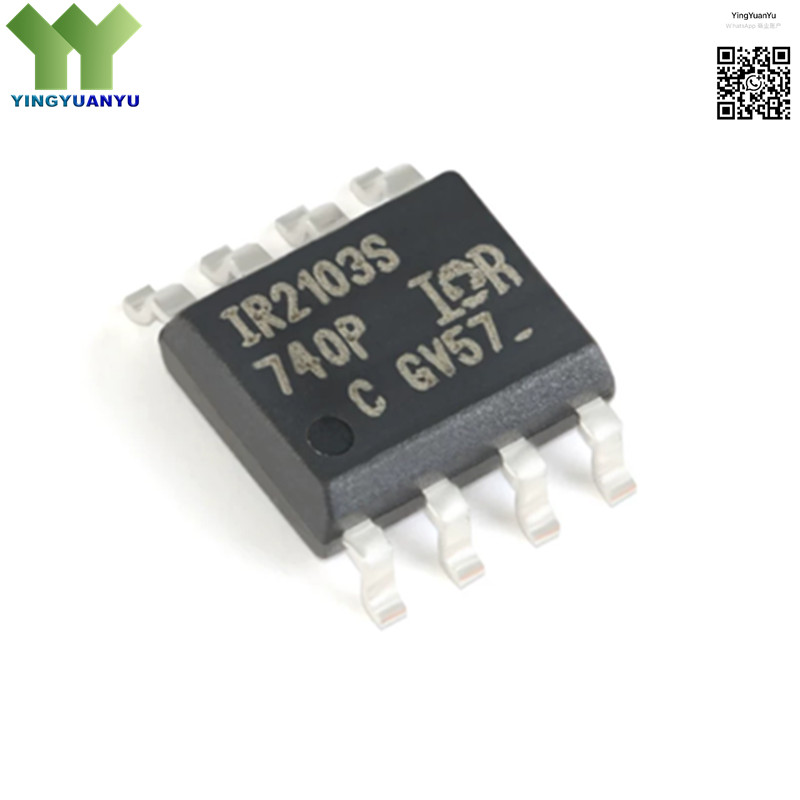

IR2103STRPBF
IR2103STRPBF
| Part Number | IR2103STRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Gate Drivers; High-Side Low-Side Gate Driver |
| Description | Dual Channel High-Side & Low-Side Gate Driver, 600V,MOSFET and IGBT, SOIC-8 Package |
Product Overview
The IR2103STRPBF is a high-performance dual-channel gate driver designed for driving MOSFETs and IGBTs in high-efficiency power conversion systems. It supports both high-side and low-side switching configurations with a voltage rating up to 600V, featuring fast switching speed, high output current capability, and robust noise immunity. The device integrates advanced protection features, low power consumption, and stable operation across extreme temperature ranges. Housed in a compact SOIC-8 surface-mount package, it enables reliable and space-efficient drive solutions for industrial, automotive, and consumer power electronics.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount (SMD) |
| Voltage Rating | 600 V |
| Channels | Dual High-Side & Low-Side |
| Output Current | High Peak Output Current |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- DC-DC Converters & Switch-Mode Power Supplies
- Motor Control & Inverter Systems
- UPS & Industrial Power Modules
- LED Lighting Drivers
- Automotive Power Control Systems
- High-Frequency Power Conversion
- Home Appliances & Consumer Electronics
- IGBT/MOSFET Gate Drive Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
