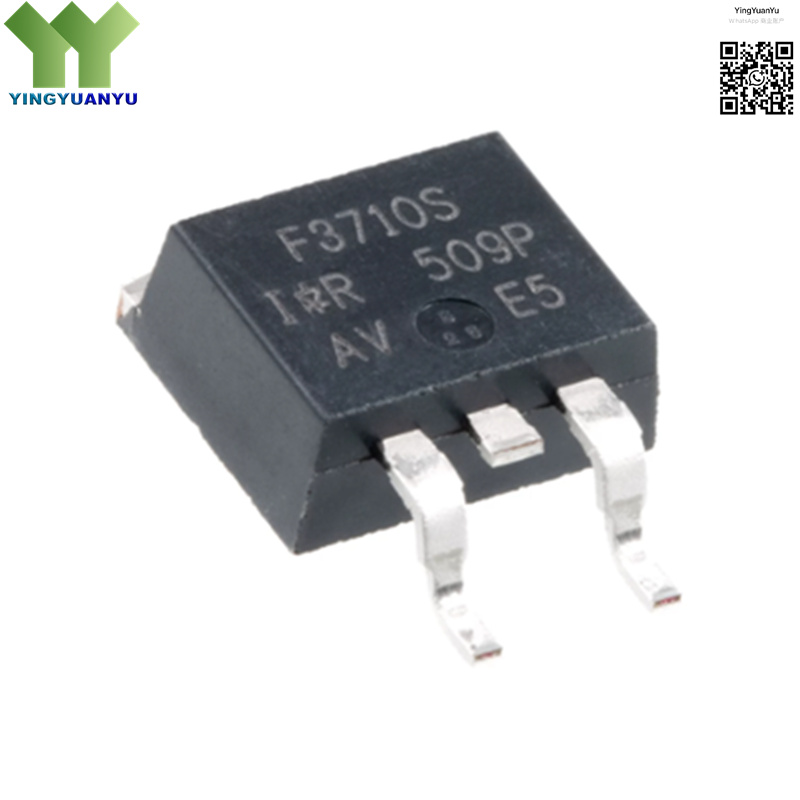

IRF3710STRLPBF
IRF3710STRLPBF
| Part Number | IRF3710STRLPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 100V, 57A,23 mΩ, Fast Switching, D2PAK Surface Mount Package |
Product Overview
The IRF3710STRLPBF is a compact, high-speed N-channel HEXFET power MOSFET from Infineon Technologies. Designed for surface-mount applications, it features low on-resistance, fast switching speed, low gate charge, and excellent high-frequency performance. This RoHS-compliant device delivers reliable operation, high efficiency, and space-saving design, ideal for compact power supplies, DC-DC converters, lighting drivers, and low-to-medium power switching systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies (IR) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | D2PAK |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | F3710S |
| Drain-Source Voltage (Vdss) | 100 V |
| Continuous Drain Current (Id) | 57 A |
| On-State Resistance (Rds(on)) | 23 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Compact DC-DC Converters & Voltage Regulators
- High-Frequency Switching Power Supplies
- LED Lighting Driver Circuits
- Portable Electronic Power Systems
- Low-Power Motor Control Modules
- Consumer Electronic Power Switches
- Industrial Low-Voltage Control Circuits
- SMD High-Efficiency Power Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
