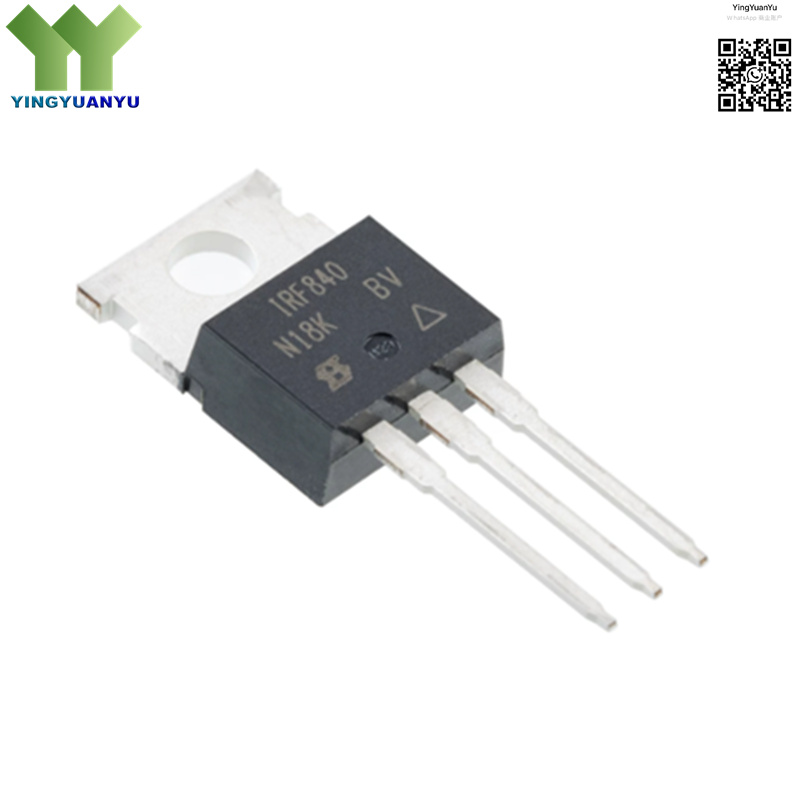

IRF840PBF
IRF840PBF
| Part Number | IRF840PBF |
|---|---|
| Manufacturer | VISHAY |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 500V, 8A,850mΩ, TO-220AB Through Hole Package |
Product Overview
The IRF840PBF is a high-voltage N-channel power MOSFET produced by Infineon Technologies, designed for reliable power switching and linear control applications. It provides high breakdown voltage, fast switching speed, low on-resistance, and strong thermal stability. This RoHS-compliant device features excellent ruggedness and easy heat dissipation, widely used in industrial power supplies, inverters, lighting drivers, and other high-voltage electronic systems.
| Key Specifications | |
|---|---|
| Brand | VISHAY |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB Through Hole Package |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRF840 |
| Drain-Source Voltage (Vdss) | 500 V |
| Continuous Drain Current (Id) | 8 A |
| On-State Resistance (Rds(on)) | 850mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High-Voltage Switching Power Supplies
- AC-DC and DC-DC Converters
- Motor Control and Inverter Systems
- Electronic Ballasts and LED Drivers
- Industrial Automation Equipment
- Power Management and Control Modules
- Lighting and Home Appliance Systems
- General-Purpose High-Voltage Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
