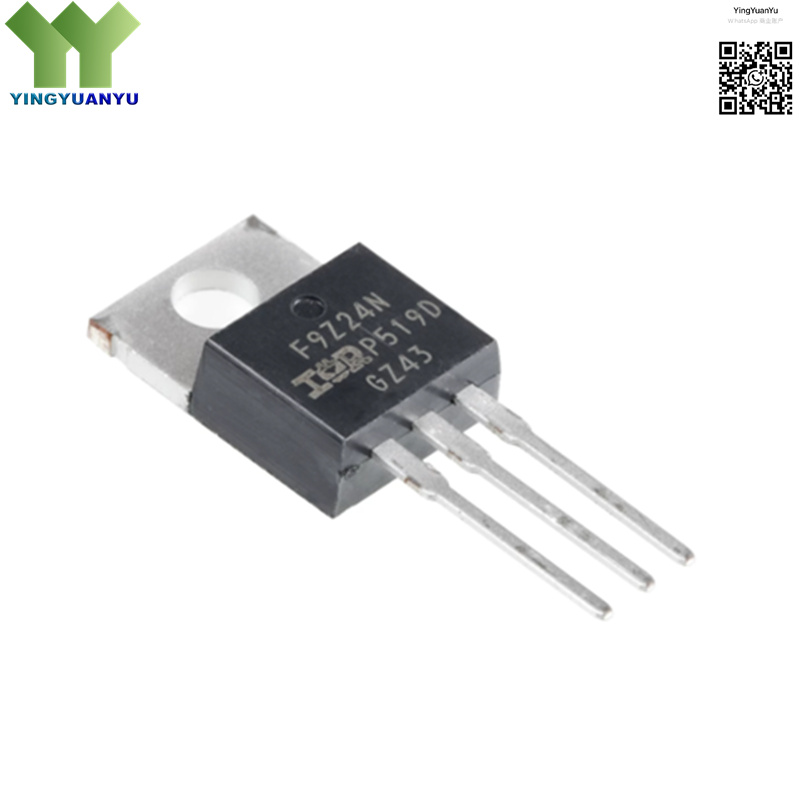

IRF9Z24NPBF
IRF9Z24NPBF
| Part Number | IRF9Z24NPBF |
|---|---|
| Manufacturer | Infineon Technologies (IR) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -55V, -12A,175 mΩ, Low Rds(on), TO-220AB Surface Mount Package |
Product Overview
The IRF9Z24NPBF is a high-performance P-channel enhancement mode power MOSFET from Infineon Technologies. Utilizing advanced HEXFET power MOSFET technology, it delivers low on-state resistance, high current capability, fast switching speed, and excellent thermal performance. This RoHS-compliant device offers robust reliability, low power dissipation, and stable operation, making it ideal for power switching, DC-DC converters, battery management, and general-purpose power control applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies (IR) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | F9Z24N |
| Drain-Source Voltage (Vdss) | -55 V |
| Continuous Drain Current (Id) | -12 A |
| On-State Resistance (Rds(on)) | 175 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Converters & Voltage Regulators
- Power Switching & Load Control Systems
- Battery Management & Protection Circuits
- Motor Drive & Control Modules
- Switching Power Supplies & Adapters
- Industrial Power Control Equipment
- LED Lighting Driver Circuits
- Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
