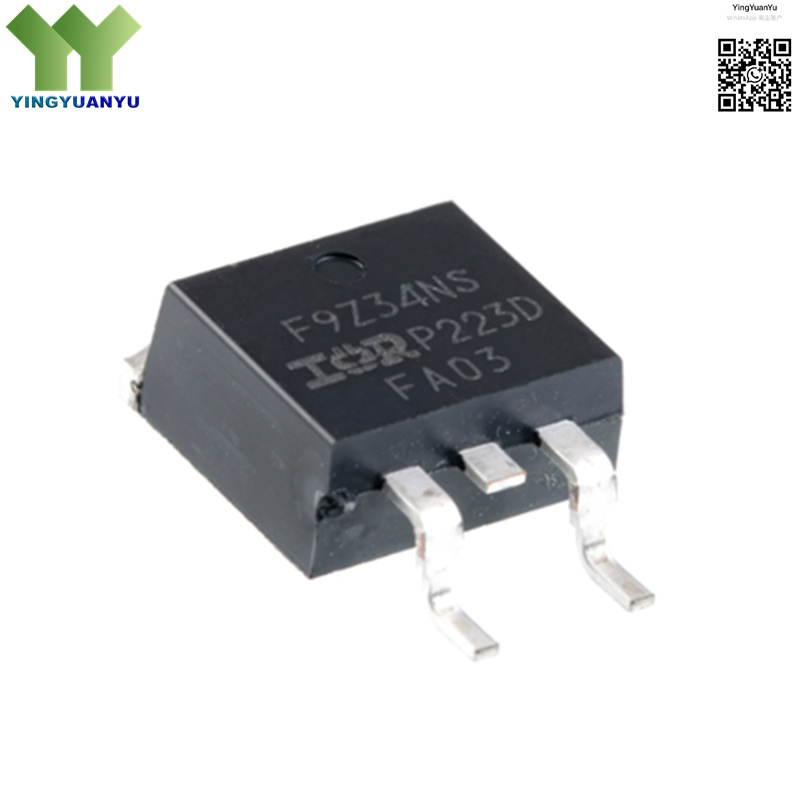

IRF9Z34NSTRLPBF
IRF9Z34NSTRLPBF
| Part Number | IRF9Z34NSTRLPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -55V, 19A,100 mΩ, Low On-Resistance, D2PAK Surface Mount Package |
Product Overview
The IRF9Z34NSTRLPBF is a high-performance P-channel power MOSFET from Infineon Technologies, designed for reliable power switching and linear amplification applications. It features low on-state resistance, fast switching speed, high current handling capability, and excellent thermal stability. This RoHS-compliant device offers rugged operation, low gate drive power, and wide temperature tolerance, making it suitable for industrial power systems, consumer electronics, DC-DC converters, and motor control circuits.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | D2PAK |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | F9Z34NS |
| Drain-Source Voltage (Vdss) | -55 V |
| Continuous Drain Current (Id) | 19 A |
| On-State Resistance (Rds(on)) | 100 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Converters and Power Regulators
- Motor Drive and Control Circuits
- Load Switching and Power Distribution
- Battery Protection and Management Systems
- Industrial Power Electronics
- Consumer Electronic Power Modules
- Automotive Auxiliary Systems
- High-Efficiency Switching Applications
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
