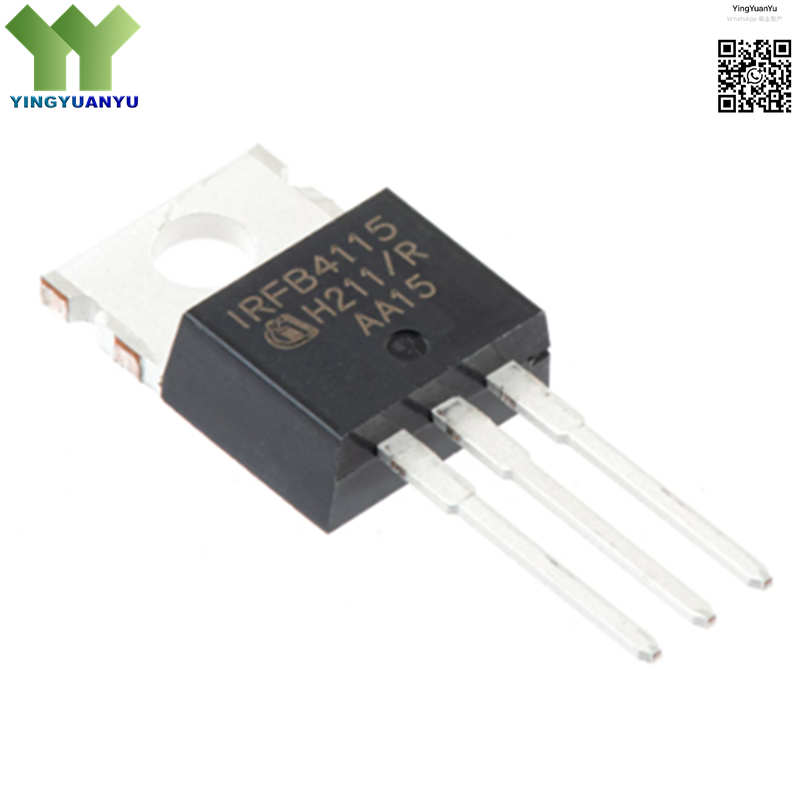

IRFB4115PBF
IRFB4115PBF
| Part Number | IRFB4115PBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel enhancement power MOSFET, low on-resistance 11mΩ,150V,104A,TO-220 through-hole package |
Product Overview
The IRFB4115PBF is a robust N-channel power MOSFET manufactured by Infineon Technologies. It delivers ultra-low Rds(on), high continuous drain current and excellent thermal efficiency to minimize power dissipation under heavy load conditions. The standard TO-220 through-hole package allows convenient heatsink mounting for reliable high-power operation. This component is widely deployed in motor drives, DC-DC converters, battery inverters and various industrial power switching applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRFB4115 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 150 V |
| Continuous Drain Current (Id) | 104 A |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High Voltage DC-DC Converter Modules
- Brushed and BLDC Motor Control Units
- Off-Grid DC-AC Power Inverters
- E-Bike and Industrial Vehicle Controllers
- Uninterruptible Power Supply (UPS)
- Battery Pack Charge Management Circuits
- High Voltage Industrial LED Drivers
- General Medium-High Voltage Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is IRFB4115PBF RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel type of IRFB4115PBF?
A: It is N-channel enhancement mode power MOSFET. - Q: Can I get engineering samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the operating temperature range?
A: Operating temperature ranges from -55°C to +175°C.
