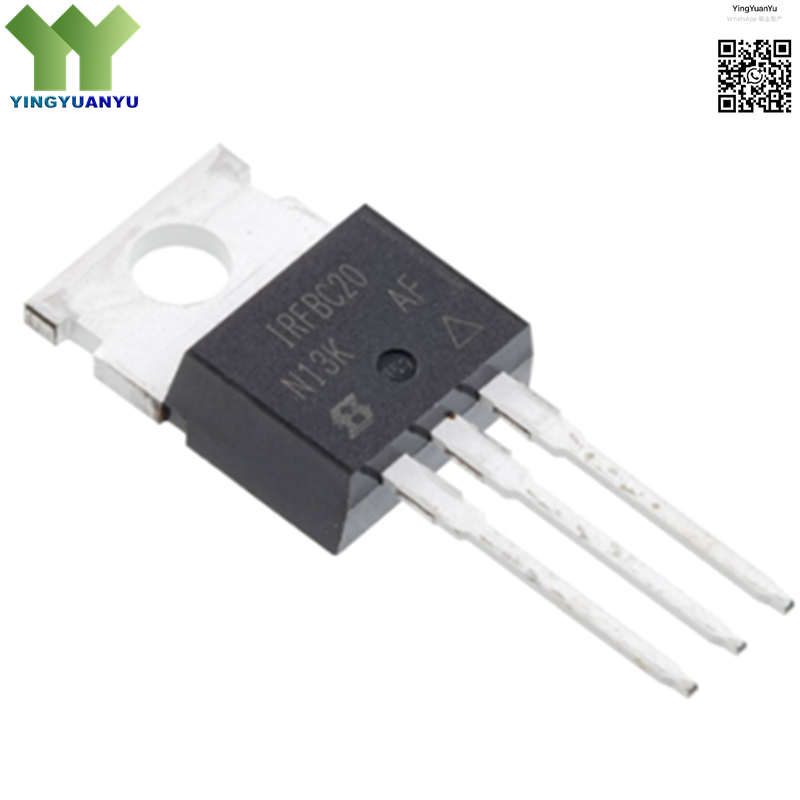

IRFBC20PBF
IRFBC20PBF
| Part Number | IRFBC20PBF |
|---|---|
| Manufacturer | VISHAY |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel enhancement mode power MOSFET, low gate charge,600V,2.2A,4.4Ω,TO-220AB-3 through-hole package |
Product Overview
The IRFBC20PBF is a versatile N-channel power MOSFET produced by Infineon Technologies. It features low input capacitance, stable switching characteristics and moderate on-resistance for reduced switching losses. Packaged in standard TO-220AB-3 through-hole form, the component allows easy heatsink assembly and reliable performance across wide working conditions. It is commonly used in low-to-medium power switching supplies, small motor drivers and general-purpose electronic switching circuits.
| Key Specifications | |
|---|---|
| Brand | VISHAY |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB-3 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRFBC20 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Id) | 2.2 A |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Offline Small Switch Mode Power Supplies
- Low Power AC-DC Converter Circuits
- Small DC Motor Drive Control
- High Voltage LED Driver Power Units
- Home Appliance Auxiliary Power Switches
- General High Voltage Signal Switching
- Charger Power Control Modules
- Industrial Low-Current Switching Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is IRFBC20PBF RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel type of IRFBC20PBF?
A: It is N-channel enhancement mode high voltage MOSFET. - Q: Can I apply for test samples?
A: Sample service is available, please submit an inquiry form. - Q: What is the rated Vds of this device?
A: The rated drain-source voltage reaches 600V.
