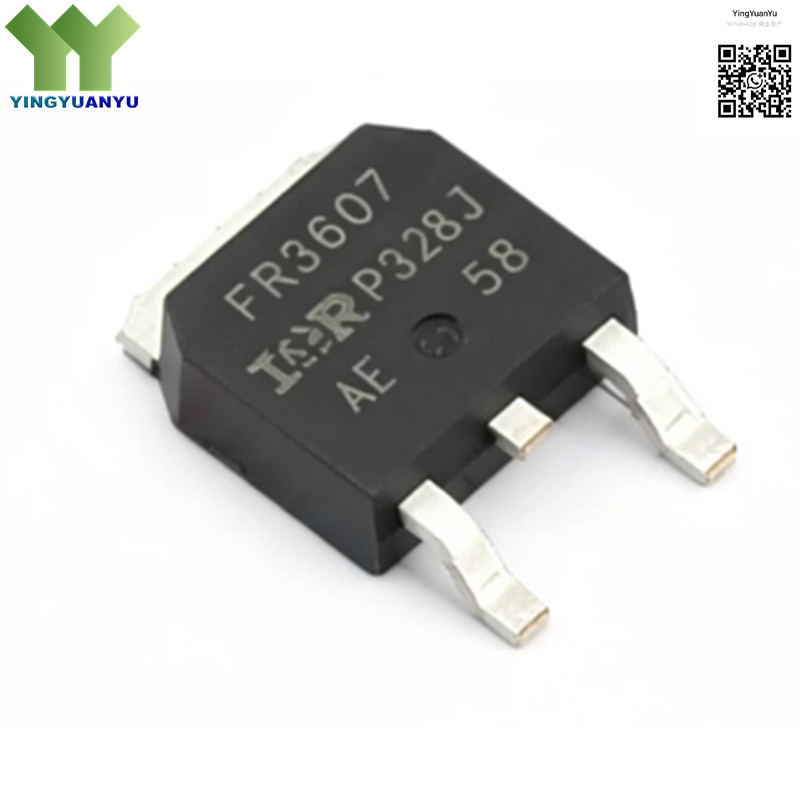

IRFR3607TRPBF
IRFR3607TRPBF
| Part Number | IRFR3607TRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 75V 10A, Low On-Resistance, Logic Level, TO-252 Package |
Product Overview
The IRFR3607TRPBF is a high-performance N-channel power MOSFET optimized for high-efficiency power switching applications. It features a 75V drain-source voltage rating, 10A continuous drain current, ultra-low on-resistance, and logic-level gate drive compatibility for direct control from 3.3V/5V microcontrollers. The device offers fast switching speed, low power dissipation, excellent thermal performance, and robust reliability for industrial, automotive, and consumer power systems. Housed in a compact TO-252 (D-PAK) surface-mount package, it enables space-saving and high-density PCB designs.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (D-PAK) |
| Mounting Type | Surface Mount (SMD) |
| VDS (Drain-Source Voltage) | 75 V |
| ID (Continuous Drain Current) | 10 A |
| RDS(on) | 0.013 Ω @ VGS=10V |
| Gate Drive | Logic Level (3.3V/5V Compatible) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Converters & Switch-Mode Power Supplies
- Motor Control & Driver Circuits
- Battery Management & Charging Systems
- Power Inverters & Industrial Power Modules
- Automotive Power Control Systems
- Consumer Electronics & Appliances
- Low-Voltage High-Current Load Switches
- PWM Control & High-Efficiency Power Drivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
