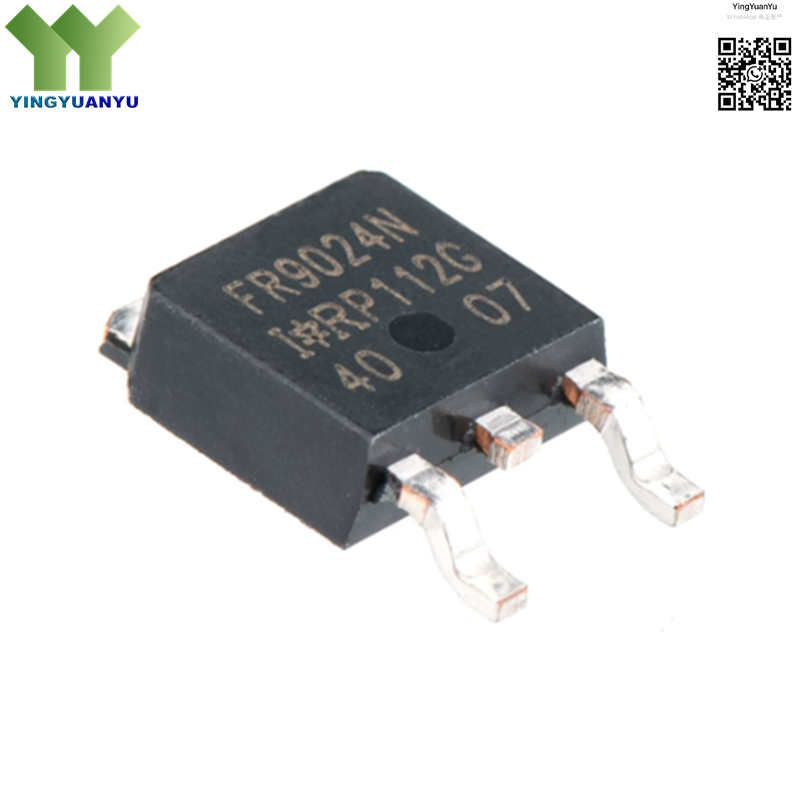

IRFR9024NTRPBF
IRFR9024NTRPBF
| Part Number | IRFR9024NTRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; P-Channel Power MOSFET |
| Description | P-Channel Power MOSFET, 55V, 11A, 175 mΩ, Low Rds(on), DPAK(TO-252AA) Surface Mount Package |
Product Overview
The IRFR9024NTRPBF is a reliable P-channel power MOSFET produced by Infineon Technologies. It features low on-resistance, low gate charge and fast switching performance to reduce power loss effectively. The compact DPAK(TO-252AA) package offers excellent thermal conductivity and is ideal for dense PCB designs. This component delivers stable performance and is widely used in voltage conversion, load switching and battery management circuits.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DPAK(TO-252AA) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | FR9024N Marking |
| Channel Type | P-Channel |
| Drain-Source Voltage (Vds) | 55 V |
| Continuous Drain Current (Id) | 11 A |
| On-State Resistance (Rds(on)) | 175 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Medium Current DC-DC Converters
- Battery Management Circuits
- Reverse Polarity Protection Modules
- Automotive Electronic Circuits
- Motor Drive Control Units
- Portable Power Supply Systems
- Industrial Load Switching
- General P-Channel Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is this part RoHS compliant?
A: Yes, IRFR9024NTRPBF fully meets RoHS requirements. - Q: Can I get free samples for testing?
A: Sample support is available, please send us an inquiry. - Q: What is the maximum continuous drain current?
A: The maximum continuous drain current is 11A. - Q: Are CAD design files available?
A: 3D model, symbol and footprint files are provided.
