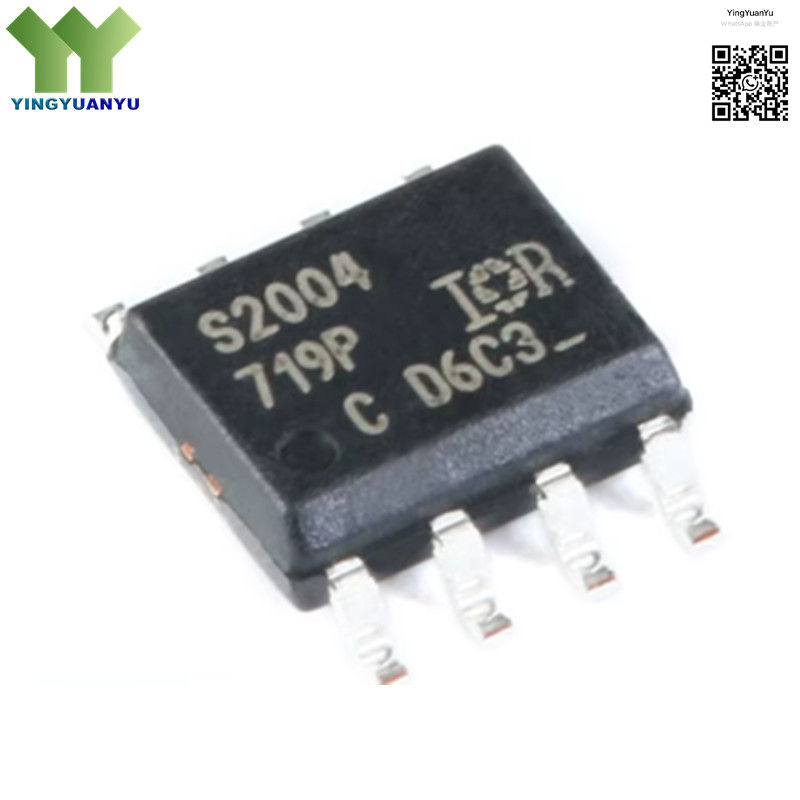

IRS2004STRPBF
IRS2004STRPBF
| Part Number | IRS2004STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 200V High-Side Low-Side Gate Driver, 1.5A Peak Output, High-Speed, SOIC-8 Package |
Product Overview
The IRS2004STRPBF is a high-speed, dual-channel gate driver IC designed for driving N-channel power MOSFETs and IGBTs in low-voltage power conversion applications. It supports up to 200V high-side floating operation, features 1.5A peak output current, matched propagation delays, and an integrated bootstrap diode for simplified circuit design. The device provides under-voltage lockout protection, high dv/dt noise immunity, and ultra-fast switching speed for high-efficiency power control systems. With wide operating temperature range and robust reliability, it ensures stable performance in industrial and consumer power electronics. Housed in a compact SOIC-8 surface-mount package, it enables high-density PCB integration for space-constrained designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Gate Driver |
| Voltage Rating | 200V |
| Output Current | 1.5A Peak |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- DC-DC Converters & Half-Bridge Inverters
- Low-Voltage Motor Control Drives
- Switch-Mode Power Supplies (SMPS)
- Class D Audio Amplifiers
- LED Lighting Drivers & Power Modules
- Battery Powered Power Systems
- High-Frequency Power Conversion
- Industrial & Consumer Power Control
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
