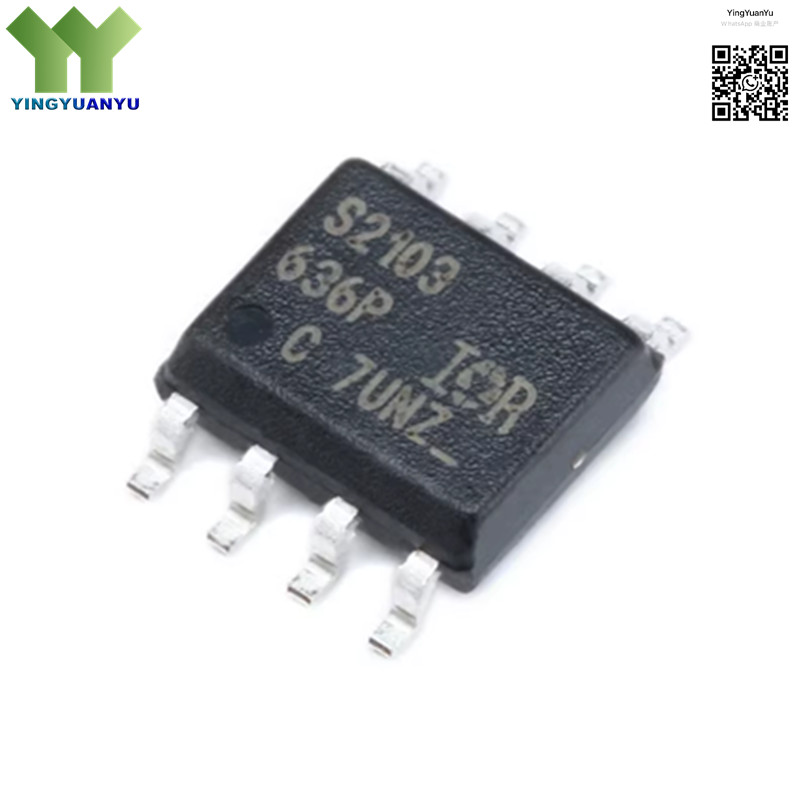

IRS2103STRPBF
IRS2103STRPBF
| Part Number | IRS2103STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 600V High-Side Low-Side Gate Driver, 160mA Output Current, Compact SOIC-8 Package |
Product Overview
The IRS2103STRPBF is a high-performance 600V dual-channel gate driver IC designed for driving N-channel power MOSFETs and IGBTs in low-power and high-frequency power conversion applications. It supports high-side floating operation up to 600V, features matched propagation delays, under-voltage lockout protection, and an integrated bootstrap diode for simplified circuit design. The device offers high noise immunity, stable switching performance, and low quiescent current, making it ideal for compact power electronics systems. With industrial-grade reliability and wide operating temperature range, it ensures consistent performance in harsh environments. Housed in a standard SOIC-8 surface-mount package, it enables cost-effective and space-efficient PCB integration.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Gate Driver |
| Voltage Rating | 600V |
| Output Current | 160mA Peak |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Low-Power Switch-Mode Power Supplies (SMPS)
- Half-Bridge DC-DC Converters
- Small Motor Control Drives
- LED Lighting Drivers & Electronic Ballasts
- Class D Audio Amplifiers
- Low-Power Inverters & Power Modules
- High-Frequency Low-Power Switching Circuits
- Industrial & Consumer Compact Power Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
