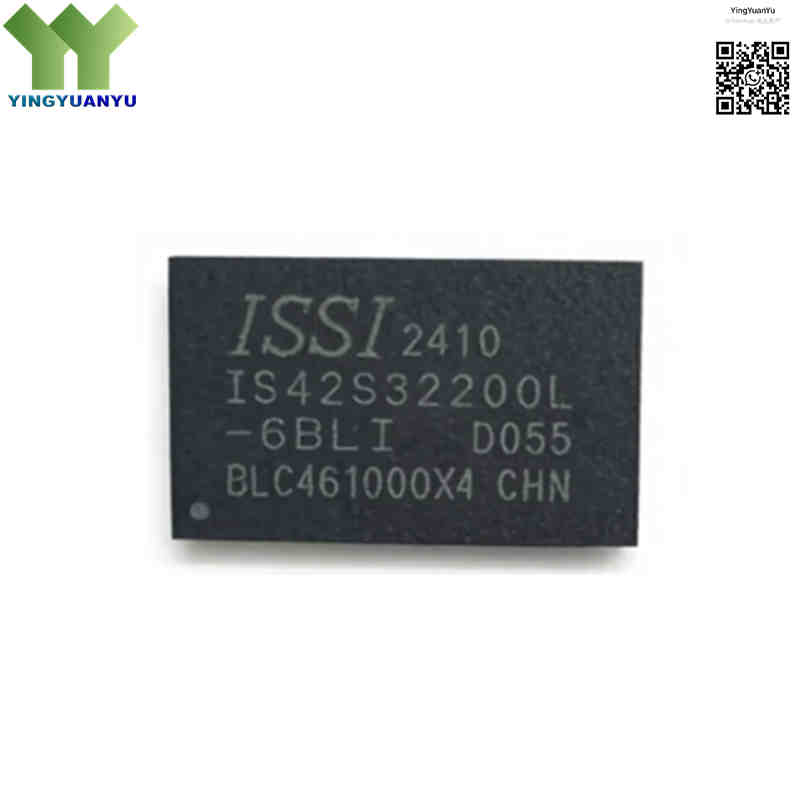

IS42S32200L-6BLI
IS42S32200L-6BLI
| Part Number | IS42S32200L-6BLI |
|---|---|
| Manufacturer | Integrated Silicon Solution Inc. (ISSI) |
| Category | Integrated Circuits (ICs) > Memory > SDRAM |
| Description | 64Mb (2M × 32) High-Speed Synchronous DRAM, 166MHz, 3.0V~3.6V Industrial Grade, 90-Ball TFBGA Package, NRND Obsolete. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IS42S32200L-6BLI is a low-voltage 64Mb SDRAM from ISSI, built with 4-bank 2M×32 architecture. It runs at 166MHz (6ns tCK, 5.4ns tAC) with 3.0~3.6V supply, supporting programmable burst and CAS latency. Industrial-grade (-40°C~+85°C) 90-ball TFBGA package, NRND obsolete with limited stock, fit for legacy industrial, communication and automotive embedded devices.
Core Advantages
Ultra-Wide 32-Bit Data Interface
32-bit parallel bus delivers high throughput, single chip meets system bandwidth demand.
166MHz High-Speed Operation
6ns cycle & 5.4ns access time eliminates data delay for embedded processors.
Industrial Wide Temperature Support
-40℃~+85℃ stable operation, separate from commercial 0~70℃ -6BL version.
Efficient 4-Bank Architecture
Interleaved bank design hides activate/precharge cycles to boost continuous read/write efficiency.
Key Specifications
| Brand | ISSI (Integrated Silicon Solution Inc.) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Package |
| EDA/CAD Model | Schematic symbols, 3D CAD step profiles, and 90-ball BGA landing pad layouts |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 90-TFBGA (8.00 mm × 13.00 mm) |
| Ball Pitch | 0.8 mm |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | IS42S32200L-6BLI Marking |
| Memory Technology | SDRAM (Synchronous Dynamic RAM) |
| Density | 64 Mb (Organized as 4 Banks × 512K × 32 bits) |
| Maximum Clock Frequency | 166 MHz |
| Speed Grade / Timing | -6 Speed Grade (6 ns clock cycle time at CL=3, tAC Access Time=5.4ns) |
| Access Time (tAC) | 5.4 ns |
| CAS Latency Support | Programmable CAS Latency: 2 or 3 |
| Burst Type & Length | Sequential or Interleave; Programmable length of 1, 2, 4, 8, or full page |
| Operating Voltage (VDD / VDDQ) | 3.0V ~ 3.6V (Nominal 3.3V, Power supply and interface matching layout) |
| Operating Temperature Range | -40°C to +85°C (Industrial-Grade Specification) |
| Suffix Definition | -6: 6ns clock speed grade; BL: lead-free TFBGA package; I: Industrial temperature grade (-40°C ~ +85°C) |
| Product Lifecycle Status | NRND / Obsolete (No Longer Manufactured, limited stock only) |
Typical Applications
- Legacy telecommunication network routing matrices, enterprise switches, and wireless access base stations
- Older industrial programmable logic controllers (PLCs), automation touch panels, and robust human-machine interfaces (HMI)
- Early automotive infotainment display consoles, digital dashboards, and older driver assistance modules
- Vintage embedded multimedia systems, digital video capture buffers, and audio mixing boards
- High-tier legacy instrumentation systems, automated medical monitors, and laboratory sensor processors
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days (subject to stock confirmation) |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, bulk pricing or compatible replacement part recommendations, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What do suffix codes -6BLI mean?
A: -6: 6ns speed grade, max 166MHz, tAC=5.4ns; BL: lead-free 90-ball TFBGA package; I: industrial grade (-40℃~+85℃), commercial version is -6BL (0~70℃).
Q2: What’s the benefit of 32-bit wide data bus?
A: It delivers higher bandwidth than ×8/×16 SDRAM. One single chip outputs full 32-bit data per clock, reducing PCB component count and layout area.
Q3: How often do I need to run refresh command?
A: Send 4K auto-refresh command every 64ms to keep data stable under full industrial temperature range.
Q4: Can this chip connect directly to 5V MCU?
A: No. Its core and IO only support 3.0V~3.6V supply. Level shift chips are required when interfacing with 5V logic, otherwise the chip will be damaged.
Q5: Is IS42S32200L-6BLI still in production?
A: This part is NRND (No Longer Manufactured). Only limited leftover stock available. New projects need to switch to compatible alternatives.
Q6: What compatible replacement models can I use?
A: 1. IS42S32200L-7BLI: 143MHz industrial grade, pin-to-pin fully compatible, wider stock supply; 2. IS45S32200-6BLI: upgraded low-power SDRAM with same footprint; 3. Micron MT48LC32M32-6A IT: cross-brand industrial 32-bit 64Mb SDRAM, same electrical specs.
Q7: Are there risks buying obsolete NRND chips?
A: Stock is limited, batch consistency varies. We test all inventory before delivery; for mass long-term projects, replacement models are strongly recommended to avoid stock outage risks.
Q8: Do replacement chips need PCB redesign?
A: The recommended alternative models share identical 90-ball TFBGA footprint, same voltage and bus definition. No PCB layout modification is needed for direct drop-in replacement.
Q9: Can I get free samples for alternative models?
A: Yes, we provide small free samples of all compatible replacement parts for customer testing. Submit your sample demand via the inquiry form with project details.
