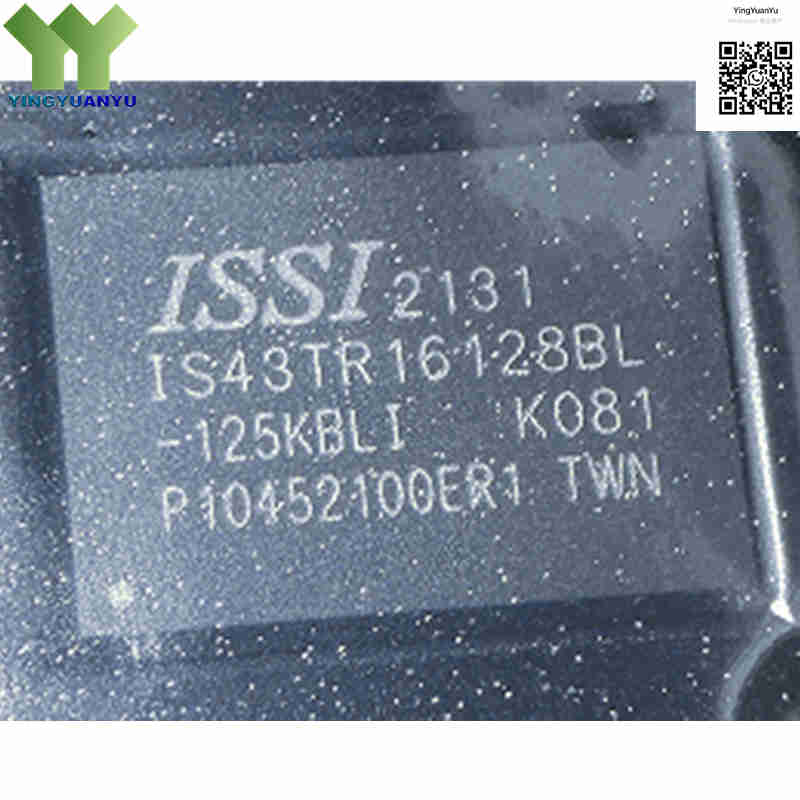

IS43TR16128BL-125KBLI
IS43TR16128BL-125KBLI
| Part Number | IS43TR16128BL-125KBLI |
|---|---|
| Manufacturer | ISSI (Integrated Silicon Solution, Inc.) |
| Category | Integrated Circuits (ICs) > Memory – DRAM |
| Description | High-performance 2Gb DDR3L SDRAM, 128M x 16 organization, 1.35V low voltage, 1600Mbps speed grade, Industrial Temperature. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IS43TR16128BL-125KBLI is a high-performance, low-voltage DDR3L SDRAM solution from ISSI (Integrated Silicon Solution, Inc.). Built with an 8-bank architecture organized as 128M × 16, this 2Gb memory device operates at an energy-efficient 1.35V core voltage while maintaining full backward compatibility with standard 1.5V DDR3 systems. It delivers the high bandwidth of the DDR3-1600 specification (CL11 timing) over an extended industrial temperature range of -40°C to +95°C. Packaged in a compact, lead-free BGA-96(13x9mm), it provides reliable volatile storage for industrial computing, telecom infrastructure, embedded medical equipment, and automotive tracking applications.
Core Advantages
1.35V DDR3L Enhanced Power Efficiency
Operates efficiently at a reduced 1.35V voltage profile, which fundamentally lowers active power consumption budgets and thermal generation characteristics by up to 20% compared to legacy 1.5V components.
Wide x16 Bit Configuration High-Bandwidth
Features a native 16-bit wide synchronous data bus layout that maximizes data throughput speeds per clock cycle, eliminating system routing bottlenecks between high-speed microprocessors, FPGAs, and the volatile storage array.
Industrial-Grade Thermal Endurance
Fully qualified to maintain strict operational accuracy across extended industrial operating temperatures (-40°C to +95°C), ensuring long-term structural reliability in outdoor communication boxes or high-heat automated factories.
Advanced Signal Integrity Features
Integrates robust On-Die Termination (ODT), asynchronous reset pins, and precise ZQ calibration loops that minimize parasitic signal reflections, cross-talk noise, and data transmission jitter over high clock speeds.
Key Specifications
| Brand | ISSI (Integrated Silicon Solution, Inc.) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Halogen-Free |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | BGA-96(13x9mm) |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | IS43TR16128BL-125KBLI Marking |
| Memory Technology Architecture | DDR3L SDRAM (Double Data Rate 3 Low-Voltage) |
| Density Capacity | 2 Gb (2 Gigabit / 256 Megabytes total storage array) |
| Internal Bit Organization | 128M x 16 (128 Meg words x 16 bits layout configuration) |
| Clock Frequency Speed Grade | 800 MHz Clock (DDR3-1600, Effective 1600 Mbps data transfer rate per pin line) |
| Standard Timing Latency | CL = 11 (Column Address Strobe Latency Timing) |
| Supply Operating Voltages | 1.35V Nominal (Fully functional at standard 1.5V electrical grids) |
| Refresh Frequency Constraint | 8K Refresh cycles / 64 ms (Auto & Self-Refresh Support) |
| Operating Temperature Range | -40°C to +95°C (Extended Industrial Grade Operational Profile) |
Typical Applications
- Industrial Programmable Logic Controllers (PLCs) and HMI Automation Panels
- Telecom Base Stations, High-Speed Routers, Network Switches, and IOT Gateways
- Embedded Single Board Computers (SBCs), Computer-on-Modules (COM), and FPGA Boards
- Medical Imaging Systems, Patient Diagnostics Monitors, and Clinical Equipment
- Smart Grid Controllers, Commercial Security Surveillance NVR/DVR Processing Units
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your current stock inventory of the IS43TR16128BL-125KBLI completely genuine and original?
A: Yes, we guarantee that all IS43TR16128BL-125KBLI memory ICs in our stock are 100% brand-new, original factory parts from ISSI, stored securely under standard moisture-sensitive level (MSL) and anti-static ESD requirements.
Q2: Can this memory chip operate on standard 1.5V DDR3 memory architectures?
A: Yes. The “L” in the part series designation notes DDR3L low voltage (1.35V), but the IS43TR16128BL architecture is fully backward compatible with older, conventional 1.5V legacy power rails without losing physical parameters.
Q3: What exact information is decoded by the “-125KBLI” suffix sequence?
A: The “-125K” identifies the speed grade running at DDR3-1600 (clock cycle time of 1.25ns). The “BL” represents the specific 96-ball FBGA physical format package, and the trailing letter “I” signifies that it is officially qualified for extended Industrial Temperature conditions (-40°C to +95°C).
Q4: How can our hardware design engineers request specific IBIS modeling configurations or layout recommendations?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
