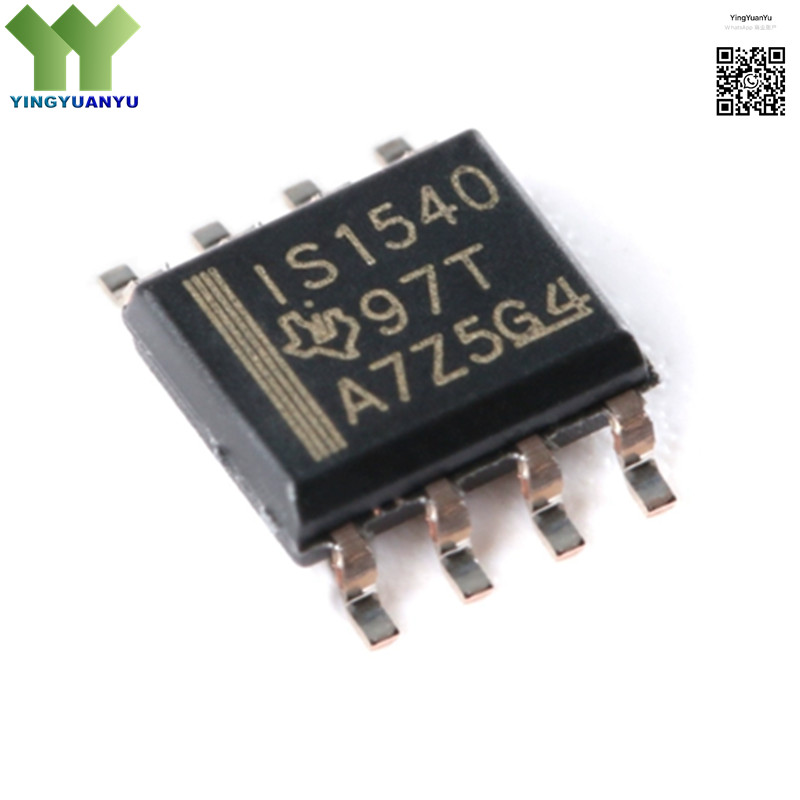

ISO1540DR
ISO1540DR
| Part Number | ISO1540DR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Isolators; Digital Isolators |
| Description | 2-Channel Bidirectional I2C Digital Isolator, 2.5kVrms, 1Mbps, SOIC-8 Package |
Product Overview
The ISO1540DR is a high-reliability, bidirectional digital isolator specifically designed for I2C communication interfaces. It provides galvanic isolation up to 2.5kVrms while supporting bidirectional data transfer without external direction control, making it ideal for isolated I2C, SMBus, and PMBus systems. The device features low power consumption, high noise immunity, wide operating voltage range, and integrated glitch filtering for stable communication in harsh industrial environments. With its compact SOIC-8 surface-mount package and industry-standard pinout, it enables easy integration into isolated sensor interfaces, industrial controls, and power management systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Isolation Voltage | 2500 Vrms |
| Data Rate | 1 Mbps |
| Channels | 2-Channel Bidirectional (I2C) |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Isolated I2C / SMBus / PMBus Interfaces
- Industrial Automation & Control Systems
- Isolated Sensor Communication
- Power Supply Monitoring & Control
- Motor Drives & Inverter Systems
- Battery Management Systems (BMS)
- Ground Loop Elimination & Noise Isolation
- Embedded Isolated Communication Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
