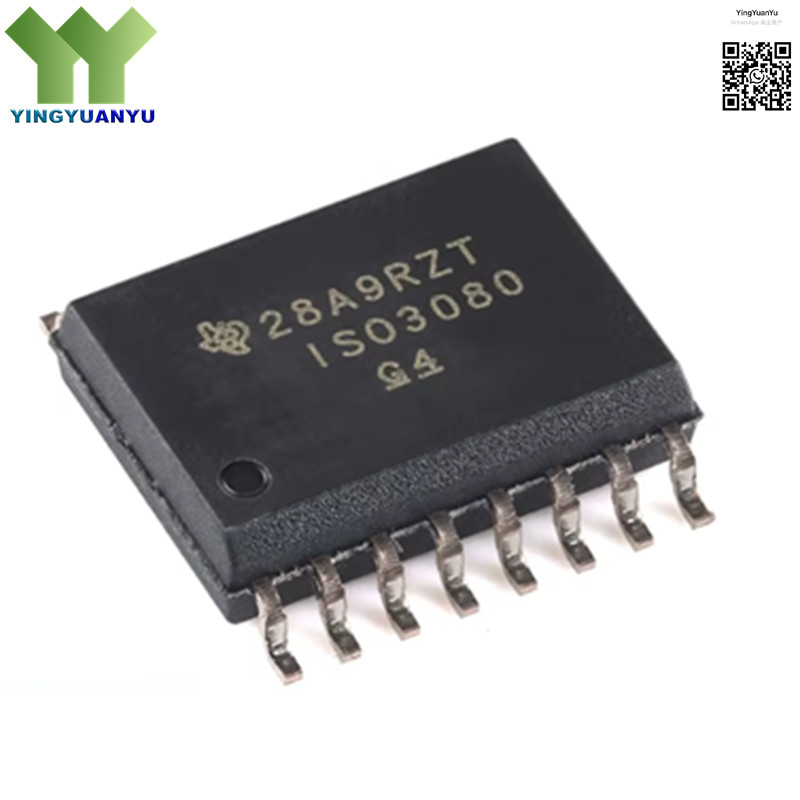

ISO3080DWR
ISO3080DWR
| Part Number | ISO3080DWR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Isolated RS-485/RS-422 Transceivers; Digital Isolators |
| Description | Isolated Half-Duplex RS-485/RS-422 Transceiver, 5V, 2500Vrms Isolation, 50Mbps, SOIC-16 Package |
Product Overview
The ISO3080DWR is a robust, galvanically isolated half-duplex RS-485/RS-422 transceiver integrating high-performance isolation and differential bus communication in a single device. It provides 2500Vrms galvanic isolation to eliminate ground loops, reduce noise, and protect sensitive control circuits in harsh industrial environments. Supporting data rates up to 50Mbps, the device features low power consumption, wide common-mode voltage range, and high ESD protection for bus pins. Compliant with TIA/EIA-485-A standards, it includes thermal shutdown, overcurrent protection, and bus fault protection for reliable operation. Housed in a compact SOIC-16 surface-mount package, it is ideal for isolated industrial communication, factory automation, and long-distance serial data transmission.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Isolation Voltage | 2500Vrms |
| Supply Voltage | 5V |
| Max Data Rate | 50Mbps |
| Package Type | SOIC-16 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Industrial RS-485 Communication Networks
- Factory Automation & Process Control
- Motor Drives & Industrial Inverters
- Isolated Serial Data Transmission
- Power Grid & Energy Management Systems
- Long-Haul Industrial Sensor Networks
- High-Noise Embedded Control Systems
- Industrial IoT Gateways & Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
