IST8310
IST8310
| Part Number | IST8310 |
|---|---|
| Manufacturer | Isentek |
| Category | Sensors > Magnetic Sensors – 3D Compass / Digital Magnetometer |
| Description | 3-axis digital AMR magnetic sensor, LGA-16 3×3mm package, 14-bit ADC, I2C interface, built-in temperature compensation & self-test circuit for drone navigation and indoor positioning. |
| Stock Status | In Stock |
| Origin | Original Factory Authentic Parts |
Product Overview
The IST8310 is a high-performance 3-axis digital geomagnetic sensor developed by Isentek, adopting advanced Anisotropic Magnetoresistive (AMR) sensing technology. It integrates 3 orthogonal magnetic sensing elements, a 14-bit high-precision ADC, temperature compensation circuit and built-in self-test module inside a tiny 3.0×3.0×1.0mm LGA-16 package. This chip only supports I2C Fast Mode 400kHz communication without SPI function, providing ±1.6mT magnetic measuring range for X/Y axes and ±2.5mT for Z axis. With ultra-low sleep current and multiple selectable working modes, it is widely used for drone flight control, robot navigation, wearable positioning and AR/VR tracking equipment.
Core Advantages
High Precision AMR Sensing Technology
Higher sensitivity and lower noise than traditional Hall-effect magnetometers, delivering stable heading output for navigation systems.
Single I2C Bus Simplified Design
Pure I2C interface without SPI, fewer peripheral components, simple PCB layout and easy MCU integration.
Multi-Mode Low Power Control
Support continuous measurement, single sampling and sleep mode, sleep current only 0.1μA to extend battery life of portable devices.
Built-In Calibration Auxiliary Circuit
On-chip temperature compensation and BIST self-test reduce post-production calibration workload and improve long-term stability.
Key Specifications
| Brand | Isentek |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Halogen-Free Manufacturing Standard |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB Layout Footprint packages available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | LGA-16 (3.0 × 3.0 × 1.0 mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

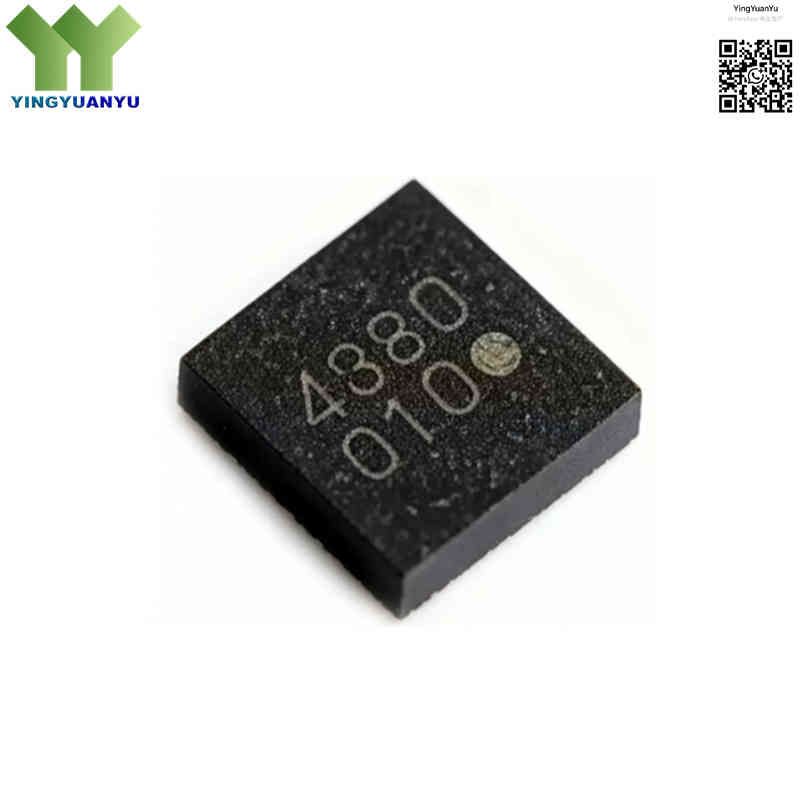

| Surface Marking / Silkscreen | 010 Marking |
| Measurement Axis Configuration | 3-Axis Magnetic Vector Integration (X, Y, and Z Orthogonal Planes) |
| Magnetic Dynamic Range | ±1600 uT (1.6 mT, X, Y Axis) / ±2500 uT (2.5 mT, Z Axis), Extended Full Scale Range |
| ADC Internal Resolution | 14-Bit (Adjustable to 16-Bit) Analog-to-Digital Converter Array |
| Magnetic Field Sensitivity | Typically 0.3 uT/LSB (1320 LSB/Gauss) Output Scale Factor Index |
| Digital Communication Bus | I2C Fast Mode (Up to 400 kHz) Only, No SPI Peripheral Interface Support |
| Supply Operating Voltage Range | 1.72 V to 3.6 V DC (VDD Core Rail), 1.14 V to VDD (VDDIO Interface Range) |
| Max Output Data Rate | 200 Hz Maximum Continuous Sampling Rate |
| Typical Operating Supply Current | 0.6 mA Typical Active Measurement Current |
| Built-in Function | On-Chip Temperature Compensation & Built-In Self-Test (BIST) Circuit |
| Operating Temperature Range | -40°C to +85°C (Industrial-Grade Operational Environment Envelope) |
| Sleep Standby Current | 0.1 μA Typical Low-Power Sleep Mode Current |
| Max Zero Magnetic Offset Drift | ±10 uT Maximum Static Zero Offset Drift |
| Selectable Working Modes | Continuous Sampling / Single-Shot Measurement / Low-Power Sleep Modes |
| Default I2C Slave Address | 0x0E Fixed Device I2C Communication Address |
| Mechanical Shock Resistance | 1000g Peak Mechanical Shock Tolerance |
Typical Applications
- UAV Multicopter Flight Controllers, Pixhawk Open-Source Autopilot Compass Modules
- Autonomous Mobile Robots (AGVs), Indoor Navigation Dead-Reckoning Equipment
- Smart Watch, Fitness Band, AR/VR Headset Motion Tracking Sensors
- Handheld Mapping Devices, Marine Navigation Electronic Compasses
- Industrial Antenna Position Controllers, Automatic Orientation Detection Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Ship Lead Time | Ship within 1-2 business days after payment confirmation |
| Global Delivery Cycle | 3-7 working days worldwide via express courier |
| Shipping Carriers | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T Wire Transfer, PayPal, Credit Card, Western Union |
Technical Support
Submit your inquiry through the page form to obtain full datasheets, PCB footprints, sample support and bulk preferential quotations, we will reply within 24 hours.
Frequently Asked Questions
Q1: Are IST8310 sensors genuine original Isentek stock?
A: All inventory chips are brand new original Isentek factory parts, shipped in ESD anti-static packaging with complete batch traceability.
Q2: Does IST8310 support SPI communication interface?
A: No, this model only supports I2C Fast Mode up to 400kHz, SPI bus is not integrated inside the chip.
Q3: What is the advantage of AMR magnetometer compared with Hall effect compass?
A: AMR technology has higher sensitivity, lower noise and smaller zero drift, effectively avoiding heading drift caused by motor electromagnetic interference on drones.
Q4: How to reduce magnetic interference on PCB layout?
A: Place IST8310 far away from DC-DC power chips, large inductors, lithium batteries and iron metal structural parts to reduce stray magnetic field interference.
