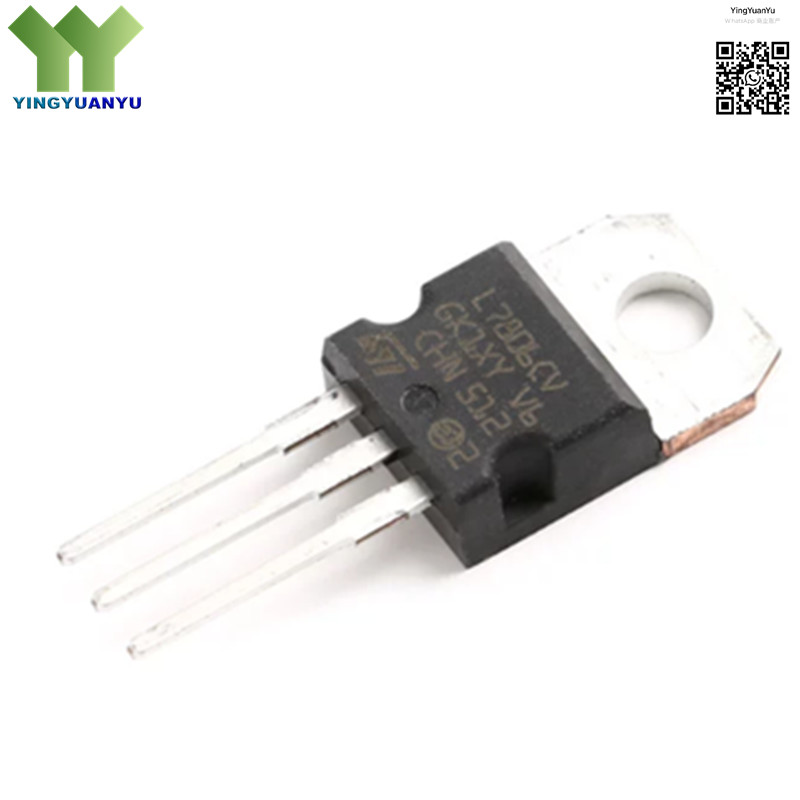

L7806CV
L7806CV
| Part Number | L7806CV |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | Voltage Regulators; Linear Positive Fixed Voltage Regulators |
| Description | 6V Fixed Output Linear Voltage Regulator, 1.5A, TO-220 Package, High Ripple Rejection |
Product Overview
The L7806CV is a robust, industrial-grade positive linear voltage regulator designed to deliver a stable fixed 6V output voltage with a maximum output current of 1.5A. It features built-in thermal shutdown, overcurrent protection, and safe operating area compensation to ensure reliable performance in harsh environments. This regulator offers high input voltage capability, excellent ripple rejection, and low standby current consumption, making it ideal for general-purpose power supply, industrial control, and consumer electronic applications. Housed in a standard TO-220 through-hole package, it provides excellent thermal dissipation and easy PCB mounting for various power management designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | STMicroelectronics |
| Output Voltage | Fixed 6V |
| Output Current | 1.5A Maximum |
| Input Voltage Range | 9V ~ 35V |
| Package Type | TO-220 (Through-Hole) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- General-Purpose Fixed Voltage Power Supplies
- Industrial Control Systems & Automation
- Consumer Electronic Devices
- Automotive Auxiliary Power Systems
- Linear Power Supply Modules
- Battery Charger & Power Management Circuits
- MCU & Digital Logic Power Regulation
- Test & Measurement Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
