LEE-29+

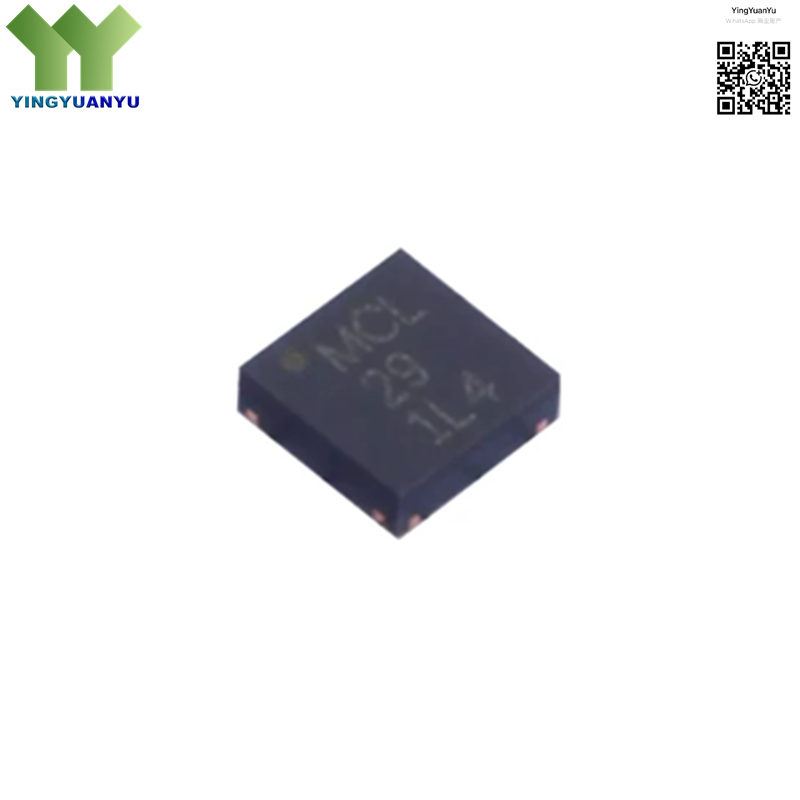

LEE-29+
| Part Number | LEE-29+ |
| Manufacturer | Mini-Circuits |
| Category | RF & Microwave Amplifiers / MMIC Gain Block Amplifiers |
| Description | LEE-29+ is a low-power, high-linearity MMIC gain block amplifier, operating from DC to 8 GHz,SMD-4P, with high gain and low noise figure for RF applications. |
Product Overview
The LEE-29+ from Mini-Circuits is a high-performance, low-power MMIC gain block amplifier designed for RF and microwave applications. It operates over a wide frequency range from DC to 8 GHz, delivering high gain with excellent linearity and a low noise figure. The device features a single 3.6V supply and low current consumption, making it ideal for battery-powered and space-constrained designs. Its compact surface-mount package ensures easy integration into high-frequency systems.
Key Specifications
| Brand | Mini-Circuits |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-4P(3x3mm) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | MCL29 Marking |
| Frequency Range | DC to 8 GHz |
| Gain | 10.6 dB Typical |
| Noise Figure | 5.5 dB Typical |
| Supply Voltage | 3.2V~4V |
| Supply Current | 40 mA Typical |
Typical Applications
- RF Receiver Front-Ends
- Test & Measurement Equipment
- Wireless Communication Systems
- Broadband RF Signal Processing
- Industrial & Automotive RF Systems
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
