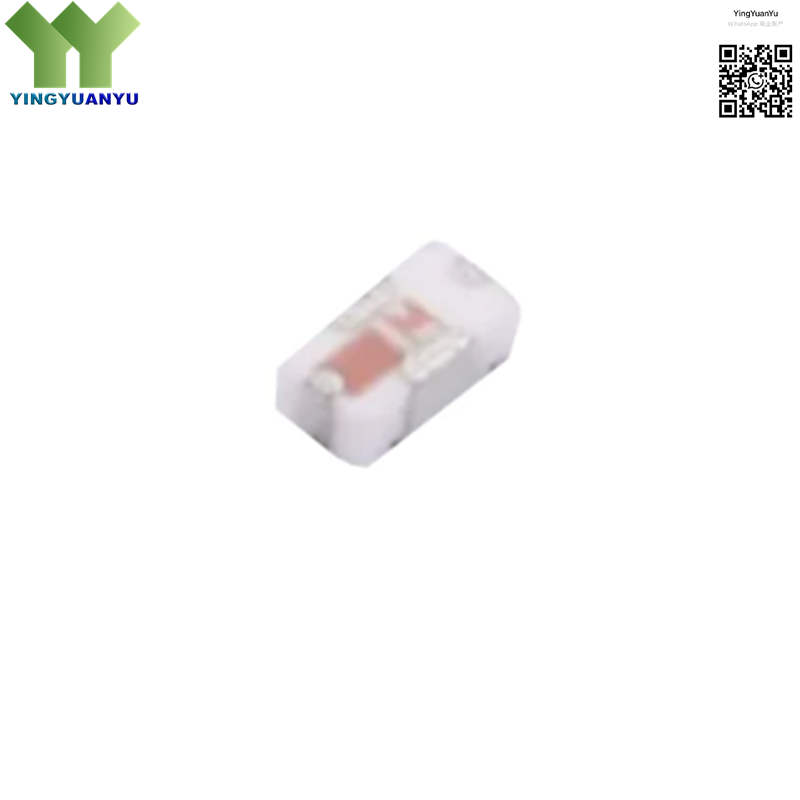

LFCW-7500+
LFCW-7500+
| Part Number | LFCW-7500+ |
| Manufacturer | Mini-Circuits |
| Category | RF Components > RF Filters > Wideband Multilayer Ceramic Low Pass Filter |
| Description | 50Ohm SMD Wideband Low Pass Filter, DC~7500MHz Cutoff, Microwave Harmonic & Spurious Signal Suppression,0603 6.3mm x 3.2mm Package |
Product Overview
The LFCW-7500+ is a wideband surface mount low-pass microwave filter manufactured by Mini-Circuits with 7500MHz cutoff frequency. Optimized with advanced wideband multilayer ceramic technology, this component maintains ultra-low insertion loss across full DC to 7500MHz passband and delivers outstanding stopband attenuation to suppress power amplifier harmonics, local oscillator leakage and high-frequency out-of-band interference. Compact SMD form factor is fully compatible with automated SMT pick-and-place production and ensures stable electrical performance over wide operating temperature range. It is widely used for front-end signal filtering, PA output harmonic elimination and signal conditioning in wideband microwave transceivers, 5G mmWave auxiliary circuits, UWB modules and high-frequency RF test instruments.
Key Specifications
| Brand | Mini-Circuits |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | 0603 6.3mm x 3.2mm Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | M Marking |
| Passband Range | DC ~ 7500MHz |
| Nominal Impedance | 50 Ohm |
| Passband Insertion Loss | Typ ≤1.1dB, Max ≤1.7dB @750MHz |
| Operating Temperature | -40°C ~ 100°C |
Typical Applications
- Wideband Microwave & Sub-6GHz 5G Transceiver Front-End Filtering
- UWB Ultra-Wideband High-Speed Wireless Communication Circuits
- High Frequency Microwave Power Amplifier Output Harmonic Suppression
- Broadband RF Signal Generator & Spectrum Analyzer Input Matching
- Next-Generation WiFi 7 High-Frequency Wireless Module Design
- Wideband SDR Software Defined Radio Intermediate Frequency Filter
- Industrial Microwave Radar & Distance Sensor Signal Processing
- Laboratory Microwave Test Bench Low Pass Filter Components
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is LFCW-7500+ RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts 0603 6.3mm x 3.2mm package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
