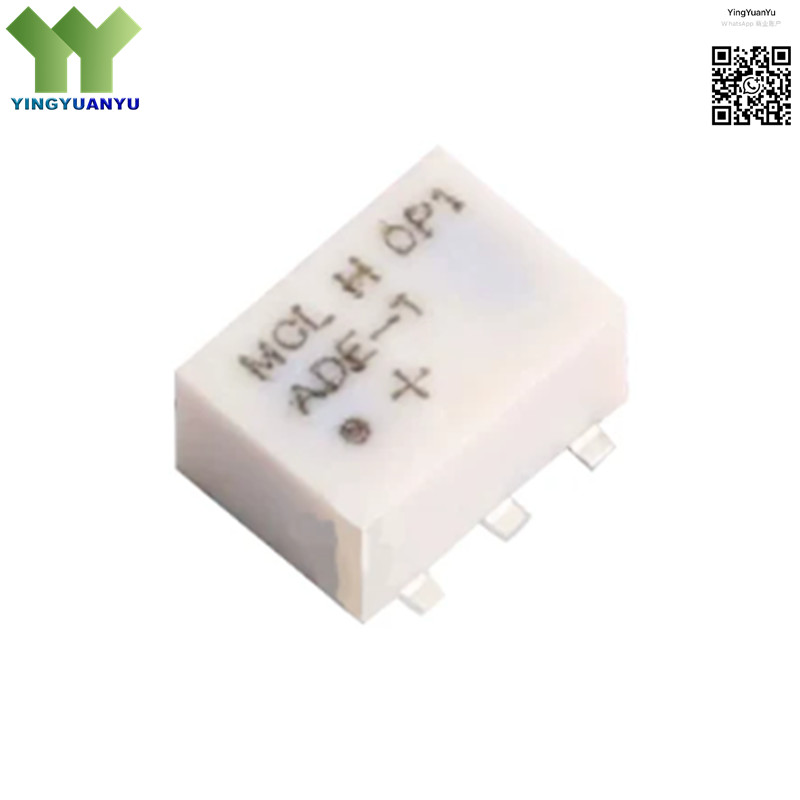

ADE-1+
ADE-1+
| Part Number | ADE-1+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Mixers; Passive Double-Balanced Mixers |
| Description | Passive Double-Balanced RF Mixer, 0.01 – 500 MHz, 50Ω Impedance, Surface Mount Package |
Product Overview
The ADE-1+ is a high-performance passive double-balanced RF mixer designed for frequency conversion, upconversion, downconversion, and phase detection in broadband RF and communication systems. It operates over a wide frequency range from 0.01 MHz to 500 MHz with 50Ω characteristic impedance, delivering excellent conversion loss, high port-to-port isolation, and consistent linearity across temperature and frequency variations. The device features a compact surface-mount package, rugged construction, and RoHS-compliant design for high-reliability operation in industrial, commercial, and test equipment applications. With stable RF performance and wide bandwidth, it supports seamless integration into high-frequency RF circuits and compact wireless systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 0.01 MHz – 500 MHz |
| Impedance | 50Ω |
| Type | Passive Double-Balanced Mixer |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF Frequency Upconversion & Downconversion
- Broadband Communication Transceivers
- Phase Detection & Phase Measurement
- RF Test & Measurement Instrumentation
- Industrial RF & Microwave Systems
- Radio & Wireless Receiver Modules
- Low-Frequency to Medium-Frequency RF Designs
- Compact Surface-Mount RF Conversion Circuits
Technical Support
