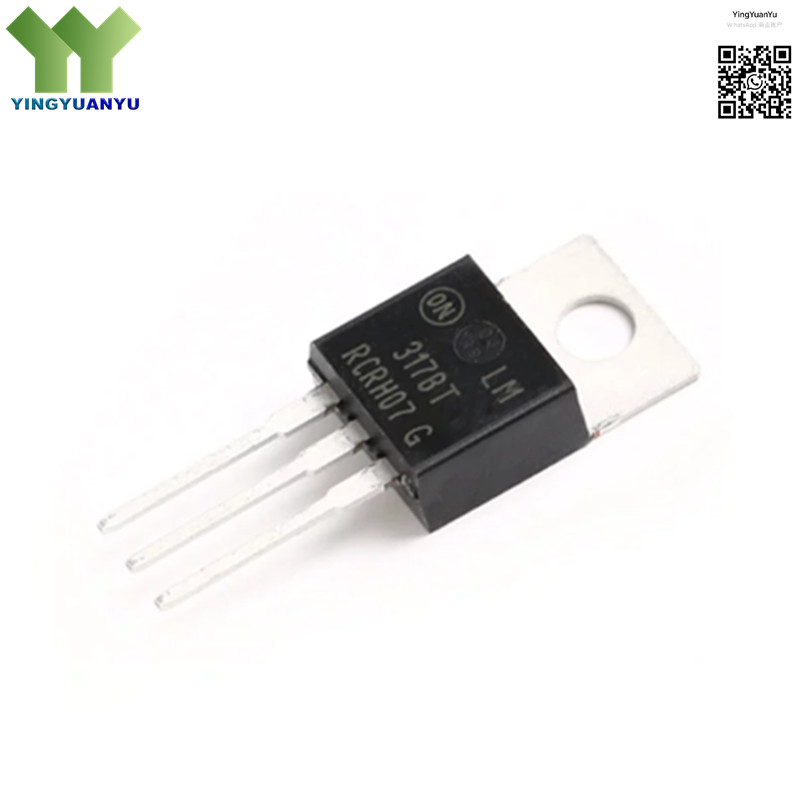

LM317BTG
LM317BTG
| Part Number | LM317BTG |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Power Management; Adjustable Linear Voltage Regulators |
| Description | 1.5A Adjustable Positive Voltage Regulator, 1.2V to 37V Output, TO-220 Package |
Product Overview
The LM317BTG is a versatile, 3-terminal adjustable positive voltage regulator capable of supplying 1.5A output current over an output voltage range of 1.2V to 37V. Designed using monolithic integrated circuit technology, it features high ripple rejection, low standby current, and excellent line and load regulation characteristics. The device includes built-in thermal overload protection, short-circuit current limiting, and safe-area compensation for reliable operation in demanding environments. Housed in a rugged TO-220 through-hole package, it is ideal for a wide range of power supply applications requiring adjustable and stable positive voltage regulation.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Output Current | 1.5 A (Maximum) |
| Output Voltage | 1.2V ~ 37V Adjustable |
| Input Voltage | Up to 40V |
| Package Type | TO-220 (Through-Hole) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Adjustable Laboratory Power Supplies
- Industrial Control Systems
- Battery Chargers and Power Adapters
- Automotive Electronics
- Consumer Electronic Devices
- Positive Voltage Regulator Modules
- Embedded System Power Regulation
- Constant Current Source Applications
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
