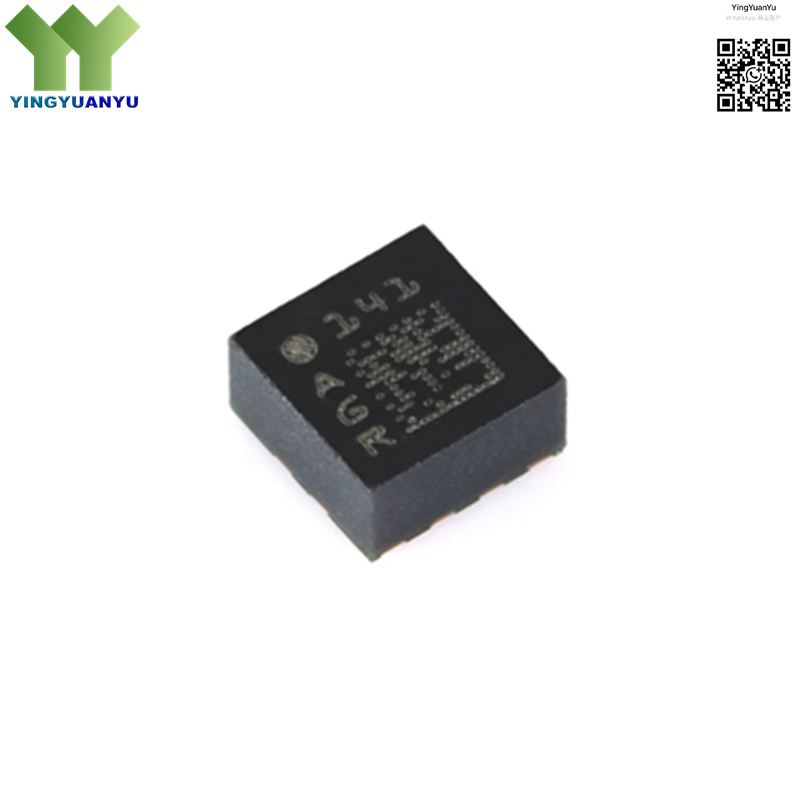

LSM303AGRTR
LSM303AGRTR
| Part Number | LSM303AGRTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | 6-Axis MEMS Motion Sensor; 3D Accelerometer + 3D Magnetometer |
| Description | 16bit Ultra-low-power 6-axis e-compass module with 3-axis accelerometer and 3-axis magnetometer, I2C/SPI interface, LGA-12(2×2) package |
Product Overview
The LSM303AGRTR is a high-performance, ultra-low-power 6-axis inertial sensor system from STMicroelectronics, integrating a high-precision 3-axis accelerometer and a 3-axis magnetometer in an ultra-compact LGA-12(2×2) package. It provides high stability, low noise, selectable measurement ranges, and embedded smart functions for motion detection, orientation sensing, and e-compass applications. The device supports I2C and SPI communication interfaces, making it ideal for battery-powered IoT, wearable, and consumer electronics.
| Key Specifications | |
|---|---|
| Brand | STMicroelectronics |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LGA-12 (2.0×2.0 mm) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | AGR Series Marking |
| Sensor Type | 3-Axis Accelerometer X,Y,Z + 3-Axis Magnetometer |
| Accelerometer Range | ±2g / ±4g / ±8g / ±16g |
| Magnetometer Range | ±50 gauss / ±5000 µT |
| Interface | I2C / SPI Serial Interface |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Smartphones, Tablets and Portable Navigation Devices
- Wearable Devices: Smart Watches, Fitness Trackers
- Electronic Compass (E-Compass) Applications
- IoT Nodes and Battery-powered Motion Detection Systems
- Orientation, Tilt and Position Sensing
- Map Navigation and Heading Detection
- Industrial Motion and Magnetic Field Monitoring
- Robotics, Drones and Smart Tracking Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
