LTC1060CSW#PBF
LTC1060CSW#PBF
| Part Number | LTC1060CSW#PBF |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Category | Integrated Circuits (ICs) > Interface – Filters – Active |
| Description | Dual High Performance Universal Switched Capacitor Building Block Active Filter IC, 20‑Lead SOIC Wide Package, Tape & Reel (#PBF). |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The LTC1060CSW#PBF is a dual universal switched‑capacitor filter building block from ADI. It integrates two independent 2nd‑order filter sections, supporting lowpass, bandpass, highpass, notch and allpass responses up to 4th‑order. Cut‑off frequency is controlled by external clock, works with single or dual power supplies for signal conditioning, data acquisition and telecom applications.
Core Advantages
Flexible Filter Modes
Supports multiple filter types, implement Butterworth, Chebyshev, Bessel and Elliptic responses without precision external capacitors.
Clock‑Tunable Frequency
50:1 / 100:1 selectable clock‑to‑center ratio, adjust filter frequency by changing input clock signal.
Wide Supply Compatibility
Operates from 4.75V‑18V single supply or ±2.375V‑±9V dual supply.
Stable Performance
Low distortion, good temperature tracking for precision analog filtering.
Key Specifications
| Brand | Analog Devices (ADI) / Linear Technology |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free (#PBF) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 20‑SOIC (0.295″, 7.50mm Width Wide) |
| Mounting Type | Surface Mount (SMD / SMT) |

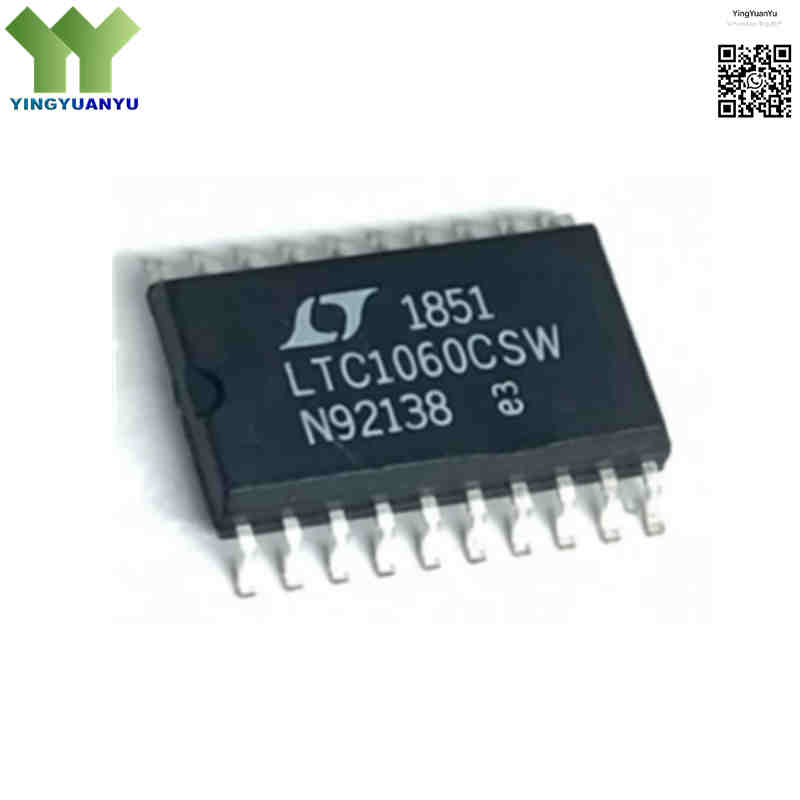

| Surface Marking / Silkscreen | LTC1060CSW / LT Logo |
| Filter Type | Universal Switched Capacitor Filter |
| Number of Filters / Order | 2 Independent Sections (up to 4th Order combined) |
| Center / Cutoff Frequency | Up to 30 kHz (Typical) |
| Clock‑to‑Center Frequency Ratio | 50:1 or 100:1 (Pin Selectable) |
| Max Input Clock Frequency | 1.6MHz (Typical) |
| Supply Voltage (Dual) | ±2.375V to ±9V |
| Supply Voltage (Single) | 4.75V to 18V |
| Quiescent Supply Current | 7mA (Typical) |
| Operating Temperature Range | 0°C to +70°C (Commercial Grade) |
| Storage Temperature Range | ‑65°C ~ +150°C |
Typical Applications
- Data Acquisition Systems and Precision Analog Signal Pre‑Conditioning
- Anti‑Aliasing Filters for Analog‑to‑Digital Converters (ADCs)
- Reconstruction Smoothing Filters for Digital‑to‑Analog Converters (DACs)
- Telecommunication Transceivers, Modems, and Audio Signal Processing
- Test & Measurement Equipment, Spectrum Analyzers, and Medical Instrumentation
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the function of LTC1060CSW#PBF?
A: Dual 2nd‑order switched‑capacitor active filter, supports lowpass, bandpass, highpass, notch and allpass filter responses.
Q2: How to adjust filter cutoff frequency?
A: Controlled by external clock. Selectable 50:1 or 100:1 clock‑to‑center frequency ratio.
Q3: What is the meaning of #PBF and #TRPBF suffix?
A: #PBF: lead‑free RoHS, tape‑and‑reel. #TRPBF: automated assembly tape‑and‑reel. Without #PBF is lead‑containing version.
Q4: Difference between LTC1060CSW, ISW, MSW?
A: Pin‑to‑pin compatible, same electrical specs, only temperature grade differs. CSW(Commercial):0‑70°C; ISW(Industrial):‑40~+85°C; MSW(Military):‑55~+125°C.
Q5: What are compatible alternative parts?
A: Direct replacements: LTC1060ISW#PBF, LTC1060MSW#PBF. Functional alternative: MF10, circuit review is required before replacement.
Q6: Can LTC1060CSW work on single 5V supply?
A: Yes, single supply range 4.75V‑18V, proper signal bias is required for single‑supply operation.
Q7: What is max clock frequency?
A: Typical maximum input clock frequency is 1.6MHz, filter cutoff typical up to 30kHz.
Q8: How to get datasheet and quotation?
A: Please submit inquiry form for datasheet, filter design resource and bulk price.
