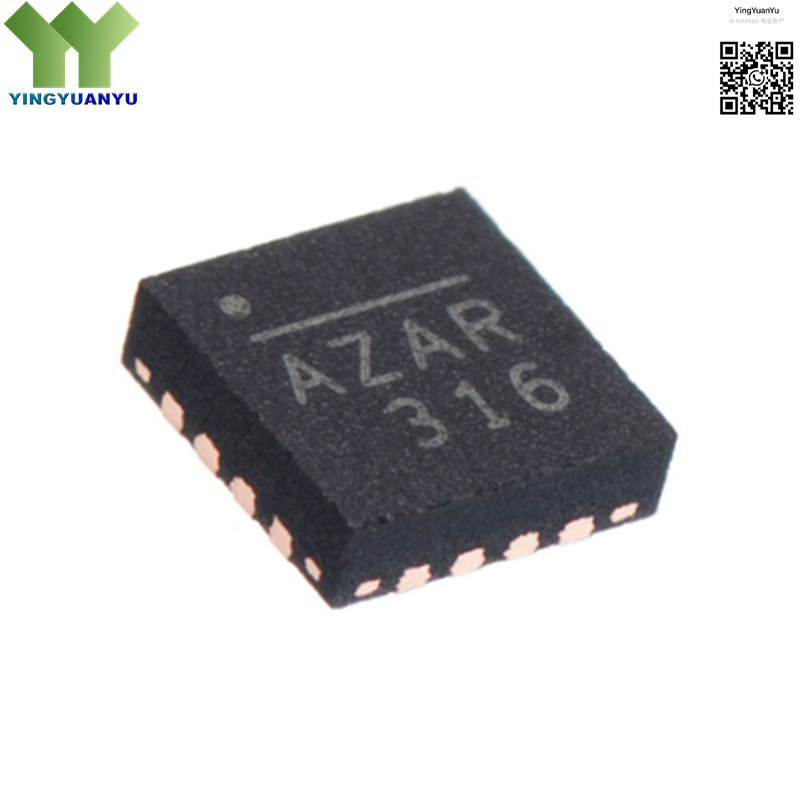

MA730GQ-Z
MA730GQ-Z
| Part Number | MA730GQ-Z |
|---|---|
| Manufacturer | Monolithic Power Systems (MPS) |
| Category | Magnetic Sensors; 14-Bit Magnetic Rotary Position Sensor |
| Description | High-Speed 14-Bit Contactless Magnetic Angle Sensor,3.3V, SPI Interface, QFN-16(3×3) Package |
Product Overview
The MA730GQ-Z is a high-performance, contactless magnetic rotary position sensor designed for high-speed and high-precision motion control applications. Manufactured by Monolithic Power Systems, it provides accurate 14-bit angular position measurement using an integrated magnetic Hall element, delivering fast response, low noise, and excellent temperature stability. The device supports high-speed SPI communication, programmable settings, and non-contact operation, making it ideal for motor control, robotics, industrial encoders, and automotive position sensing systems.
| Key Specifications | |
|---|---|
| Brand | Monolithic Power Systems (MPS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | QFN-16 (3×3 mm) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | AZA* |
| Resolution | 14 Bit |
| Interface | SPI Serial Interface |
| Supply Voltage | 2.7V ~ 3.6V |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Brushless DC Motor Commutation & Control
- Robotic Joint Position Sensing
- Industrial Servo Motor Encoders
- Automotive Steering & Throttle Position Sensors
- High-Speed Rotary Position Detection
- Consumer Electronics Haptic & Motion Systems
- Precision Medical Device Positioning
- Electric Bike & Power Tool Motor Sensors
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
