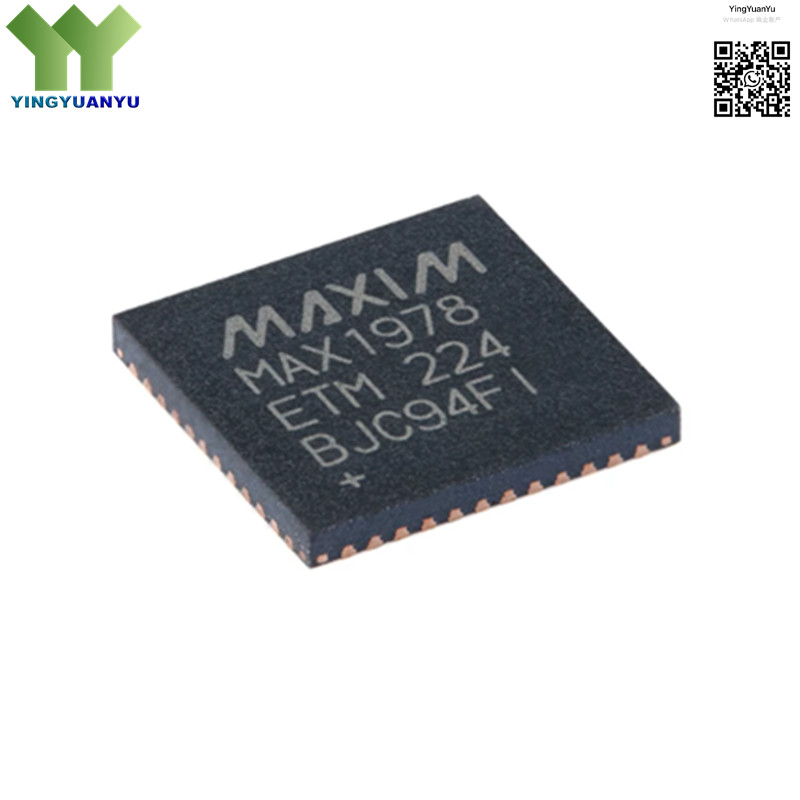

MAX1978ETM
MAX1978ETM
| Part Number | MAX1978ETM |
|---|---|
| Manufacturer | Maxim Integrated / Analog Devices |
| Category | TEC Controllers; Thermoelectric Cooler Driver IC |
| Description | Integrated TEC Controller with PID Control Loop, TQFN-48 Package, Surface Mount |
Product Overview
The MAX1978ETM is a fully integrated thermoelectric cooler (TEC) controller designed for precision temperature regulation of laser diodes, photodiodes, and other temperature-sensitive optical devices. It integrates a complete PID control loop, precision temperature sensing, high-current H-bridge driver, and power management in a single chip, delivering high-accuracy temperature stability with minimal external components. The device supports bidirectional TEC current control for both heating and cooling, programmable temperature setpoints, and comprehensive protection features. Housed in a compact TQFN-48 surface-mount package, it is ideal for optical communications, industrial lasers, and precision instrumentation.
| Key Specifications | |
|---|---|
| Brand | Maxim Integrated / Analog Devices |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TQFN-48 |
| Mounting Type | Surface Mount (SMD) |
| Function | TEC Heating/Cooling Bidirectional Control |
| Control Algorithm | Integrated PID Closed-Loop Control |
| Output Current | Up to ±3A TEC Drive Current |
| Supply Voltage | 3.0V ~ 5.5V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Laser Diode Temperature Stabilization
- Optical Communication Modules
- Precision Photodiode Control
- Fiber Optic Transceivers
- Medical Laser Systems
- Industrial Optical Instruments
- High-Precision Temperature Control Systems
- Test & Measurement Equipment
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
