MAX30102EFD+T
MAX30102EFD+T
| Part Number | MAX30102EFD+T |
| Manufacturer | Maxim Integrated (Analog Devices) |
| Category | Sensor IC > Optical Sensor > Heart Rate & SpO2 Biosensor Module |
| Description | 18bit Integrated SMD Optical Biosensor IC, Built-in Red/IR LED for Pulse Oximetry and Heart Rate Monitoring,Voltage 1.7V~2V,OESIP-14 Package |
Product Overview

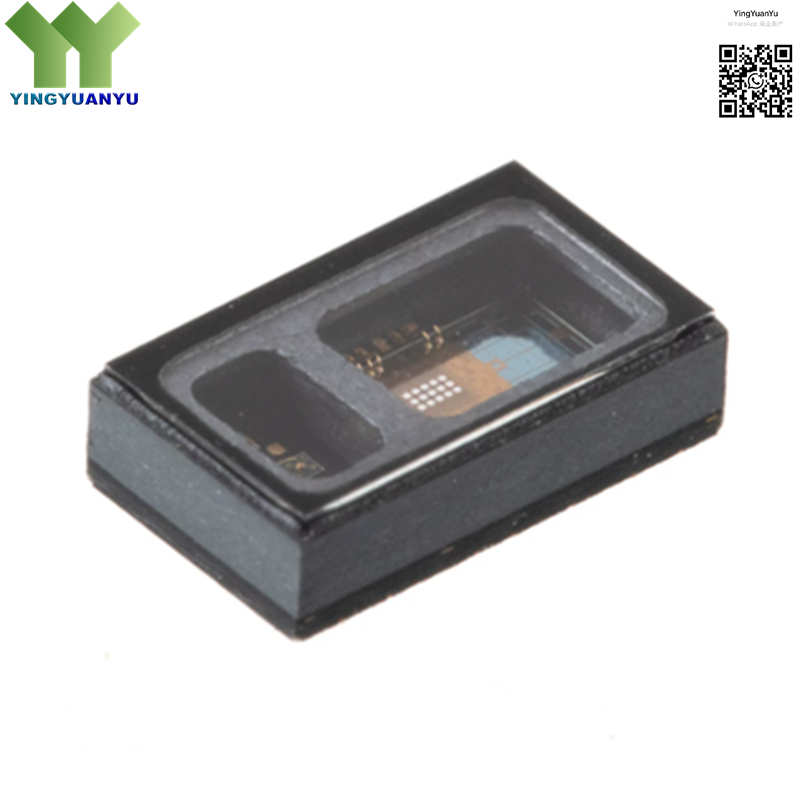

The MAX30102EFD+T is a highly integrated optical biosensor manufactured by Maxim Integrated, dedicated for non-invasive heart rate and blood oxygen saturation detection. This single-chip solution integrates red LED, infrared LED, photodetector, analog front-end circuit and digital control logic inside compact packaging, effectively minimizing peripheral circuit layout space. It features low power consumption design suitable for battery-powered wearable devices, stable anti-interference performance against ambient light disturbance, and standard I2C digital communication interface for easy MCU connection. Surface mount structure supports automated SMT production and maintains consistent sensing performance across regular working temperature range, widely adopted in smart wearable, portable medical monitoring and health detection electronics.
Key Specifications
| Brand | Maxim Integrated |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | OESIP-14 Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | MAX30102EFD+T |
| Built-in Components | Red LED, IR LED, Optical Photodiode, AFE Circuit |
| Communication Interface | I2C Digital Interface |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- Smart Watch & Smart Bracelet Heart Rate & SpO2 Monitoring Circuit
- Portable Household Pulse Oximeter Medical Detection Equipment
- Health Monitoring Wearable Electronic Consumer Products
- Fitness Sports Equipment Real-time Physiological Data Collection Module
- Home Care Portable Vital Signs Detector Main Control Sensor Unit
- Smart Earbuds Built-in Physical Health Tracking Circuits
- Medical Auxiliary Monitoring Portable Electronic Instrument Boards
- Custom Wearable IoT Health Sensing Terminal Design
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is MAX30102EFD+T RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts standard OESIP-14 SMD package and surface mount type for PCB assembly.
Q4: What communication interface does this sensor use?
A: It adopts standard I2C digital interface, easy to connect with MCU like Arduino, STM32 and Raspberry Pi.
