MC56F8335VFGE

Add to quote

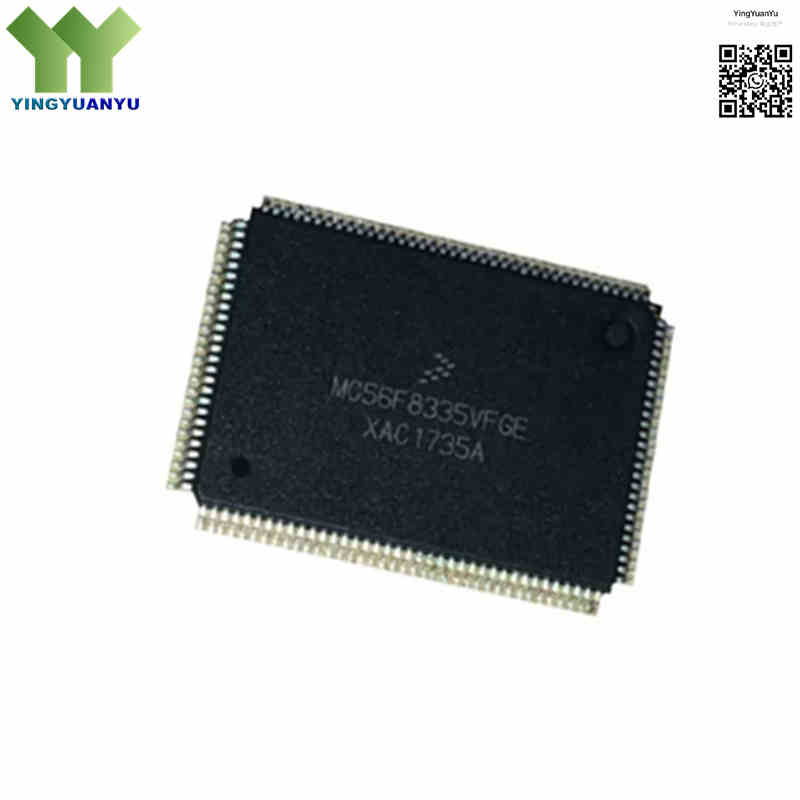

MC56F8335VFGE

Part NumberMC56F8335VFGE
ManufacturerNXP Semiconductors / Freescale
CategoryIntegrated Circuits (ICs) > Embedded – Microcontrollers / Digital Signal Controllers (DSC)
Description16‑bit Digital Signal Controller (DSC),56800E Core,64KB Flash,128‑LQFP,motor control with FlexCAN,PWM,ADC
Stock StatusIn Stock
OriginOriginal Factory

Product Overview

MC56F8335VFGE is NXP 16‑bit Digital Signal Controller(DSC) based on 56800E core, running at 60MHz/60MIPS. It integrates 64KB Flash, 12KB total RAM, FlexCAN, multi‑channel PWM and 12‑bit ADC peripherals, targeted for industrial motor control, digital power and factory automation applications.

Core Advantages

56800E High‑performance DSC Core

Combines DSP calculation capability and MCU control flexibility for real‑time industrial algorithm processing.

Specialized Motor‑control Peripherals

Built‑in fault‑protected high‑resolution PWM and synchronized multi‑channel ADC, ideal for BLDC, PMSM and AC motor drives.

Complete Industrial Interfaces

On‑board FlexCAN 2.0B, SPI, SCI/UART and quadrature decoder for industrial field‑bus connection.

Wide Industrial Temperature Support

-40℃~+105℃ operating range, with watchdog and low‑voltage detection for harsh industrial operating environments.

Key Specifications

BrandNXP Semiconductors / Freescale
RoHS StatusRoHS Compliant / Lead‑Free
EDA / CADPCB Footprint & 3D Model Available upon Request
Warranty1‑Year Standard Quality Warranty
Package / Case128‑LQFP (14mm × 20mm)
Mounting TypeSurface Mount Device (SMD/SMT)
Surface Marking / SilkscreenMC56F8335VFGE / NXP Logo
Core Processor56800E 16‑bit Core
Maximum Speed60 MHz / 60 MIPS
Program Memory Size64 KB (32K x 16) Program Flash
RAM Size12 KB Total RAM (4KB Program RAM + 8KB Data RAM)
Number of I/OsUp to 49 Programmable I/Os
A/D Converters4 x 12‑bit ADCs (Total 16 analog channels)
ConnectivityFlexCAN 2.0B, SPI, SCI / UART, Quadrature Decoder
Operating Supply Voltage2.25 V to 3.6 V
Operating Temperature-40°C to +105°C (Industrial Grade)
Timer / PWM4 x 16‑bit Quad Timers, Multi‑Channel Motor PWM with Fault Protection
Debug InterfaceJTAG / EOnCE Debug Port
Device StatusNot Recommended for New Designs (NRND)

Typical Applications

  • Industrial Motor Control (BLDC, PMSM, AC Induction, and Stepper Motors)
  • Digital Power Supplies, Uninterruptible Power Supplies (UPS), and Inverters
  • Automotive Auxiliaries and Industrial Transportation Control Systems
  • Factory Automation, Robotics, and Servo Drive Controllers
  • Renewable Energy Systems (Solar Inverters and Wind Turbine Pitch Controllers)

Order & Shipping Info

Minimum Order Quantity (MOQ)1 Piece
Shipping TimeShipped within 1‑2 business days
Delivery Time3‑7 working days worldwide
Shipping MethodsDHL, UPS, FedEx, EMS
Payment MethodsT/T (Bank Transfer), PayPal, Credit Card, Western Union

Technical Support

For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.

Frequently Asked Questions

Q1: What is the difference between MC56F8335VFGE DSC and standard MCU?

A: This DSC combines 56800E DSP computation engine with MCU architecture, delivering real‑time signal processing plus dedicated motor‑control peripherals such as PWM and multi‑channel ADC.

Q2: Which development tools work with MC56F8335VFGE?

A: NXP CodeWarrior IDE, JTAG/EOnCE debug probes and Processor Expert configuration tool are supported.

Q3: Does MC56F8335VFGE support FlexCAN bus?

A: Yes, integrated FlexCAN 2.0B module for industrial and automotive CAN‑bus networking.

Q4: Can MC56F8335VFGE pin‑to‑pin substitute MC56F8135VFGE?

A: Pin footprint compatible, but NOT drop‑in replacement. MC56F8135 lacks FlexCAN and has smaller memory. Firmware modification is required.

Q5: What does suffix VFGE stand for?

A: V=128‑LQFP package; F=‑40℃~+105℃ industrial grade; G=RoHS lead‑free; E=silicon revision. Different suffix changes package/temp rating, cannot swap directly.

Q6: Why is MC56F8335VFGE marked NRND?

A: NXP sets NRND status. Suitable only for existing project BOM maintenance. Choose newer DSC families for new‑product designs.

Q7: Why RAM value differs across supplier platforms?

A: Full total RAM =12KB (4KB Program RAM +8KB Data RAM). Some vendors list only 8KB Data RAM. Always refer to NXP original datasheet for hardware design.

Q8: How to get datasheet, pinout or bulk quotation?

A: Submit Quick Inquiry form for official datasheet, footprint document, stock status and volume pricing.
