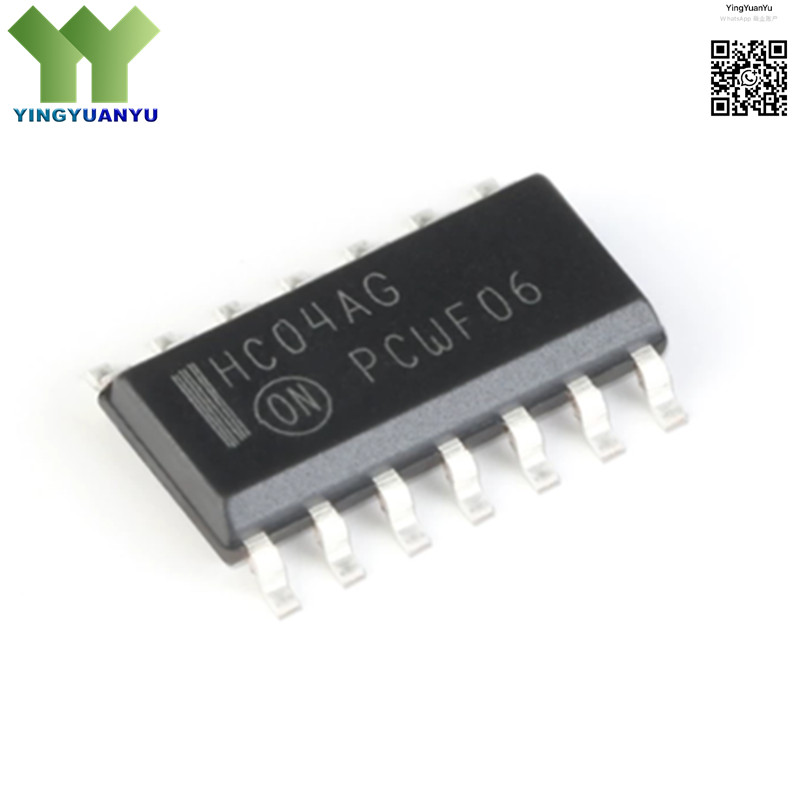

MC74HC04ADR2G
MC74HC04ADR2G
| Part Number | MC74HC04ADR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Logic ICs; Hex Inverter Gates |
| Description | High-Speed CMOS Hex Inverter, 6 Independent NOT Gates, 2V–6V, SOIC-14 Package |
Product Overview
The MC74HC04ADR2G is a high-performance CMOS hex inverter integrated circuit featuring six independent inverting logic gates. It operates with a wide supply voltage range from 2V to 6V, offers high switching speed, low power consumption, and excellent noise immunity compatible with TTL logic levels. The device is designed for general-purpose digital logic applications, signal inversion, clock generation, and interface circuits. Housed in a compact SOIC-14 surface-mount package, it provides reliable performance for industrial, consumer, and automotive electronic systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Logic Type | High-Speed CMOS (HC Series) |
| Function | Hex Inverter (6 NOT Gates) |
| Supply Voltage | 2.0V ~ 6.0V |
| Package Type | SOIC-14 (Surface Mount) |
| Operating Temperature | -55°C to +125°C |
Typical Applications
- General-Purpose Digital Logic Inversion
- Clock Signal Conditioning & Oscillator Circuits
- TTL/CMOS Logic Interface Conversion
- Industrial Control & Embedded Systems
- Consumer Electronics Digital Modules
- Automotive Electronics Circuits
- Signal Buffering & Waveform Shaping
- Educational Electronics & Prototyping
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
