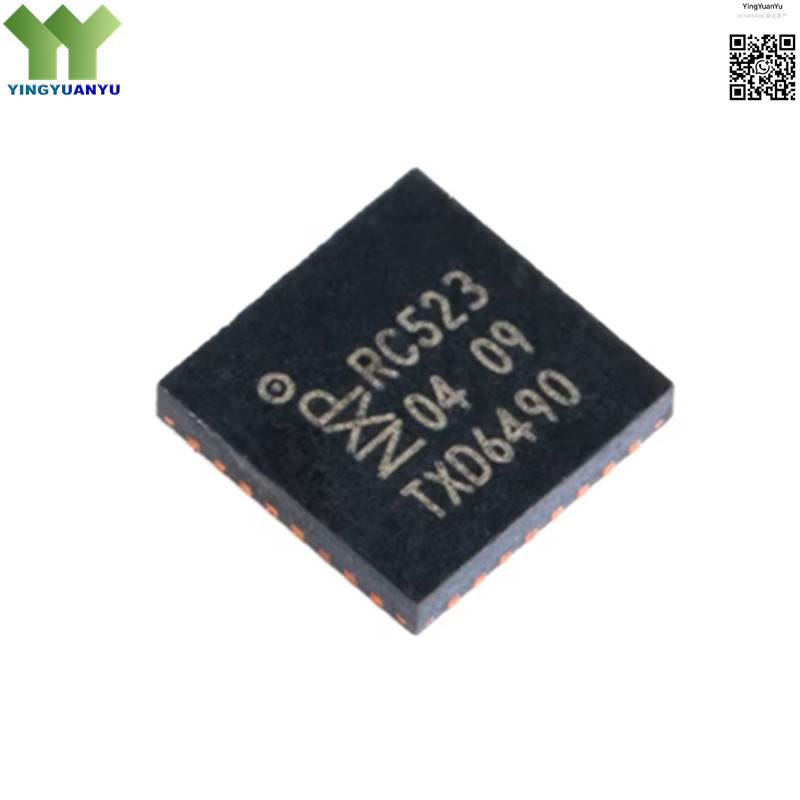

MFRC52302HN1
MFRC52302HN1
| Part Number | MFRC52302HN1 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | RFID Reader ICs; 13.56MHz Contactless Reader Transceivers |
| Description | 13.56MHz RFID/NFC Reader IC, ISO 14443 A/B Support, SPI/I2C/Serial Interface, HVQFN-32 Package |
Product Overview
The MFRC52302HN1 is a high-integration, low-power 13.56MHz RFID and contactless reader IC designed for secure proximity identification and data exchange applications. It fully supports the ISO 14443 A/B protocol standards, enabling reliable communication with RFID cards, tags, and NFC devices. The IC features flexible host interfaces including SPI, I2C, and UART serial for easy integration with microcontrollers, offers low power consumption for battery-powered devices, and includes built-in CRC parity generation and data buffering. With high receiving sensitivity and robust anti-collision functionality, it ensures stable and fast contactless communication. Housed in a compact HVQFN-32 package, it is ideal for space-constrained embedded and portable RFID systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | NXP Semiconductors |
| Frequency | 13.56MHz |
| Protocol | ISO 14443 A / B |
| Interface | SPI / I2C / UART |
| Package Type | HVQFN-32 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Contactless RFID Reader Modules
- Access Control & Security Systems
- NFC Payment & Identification Devices
- Smart Card Readers & Proximity Sensors
- Industrial RFID Data Collection
- Portable Handheld RFID Terminals
- Consumer Electronics NFC Interfaces
- Embedded IoT Contactless Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
