MLX90365LDC-ABD-000-RE
MLX90365LDC-ABD-000-RE
| Part Number | MLX90365LDC-ABD-000-RE |
|---|---|
| Manufacturer | Melexis Technologies NV |
| Category | Sensors > Magnetic Sensors – Position, Proximity, Speed (Modules) |
| Description | Triaxis Position Sensor IC, Absolute Rotary & Linear Position Sensing, Analog/PWM Output, Automotive Grade SOIC-8 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
MLX90365LDC-ABD-000-RE is an automotive-grade absolute position sensor built on Melexis Triaxis magnetic sensing tech. This monolithic IC integrates Hall sensor array, analog front-end, DSP and programmable output drivers. It detects 3-axis magnetic flux from parallel-magnetized magnets to calculate 0~360° linear or rotary position without mechanical contact. The ABD variant supports factory-calibrated analog/PWM output, supplied in 8-pin SOIC reel packaging, ideal for automotive and heavy industrial harsh environments.
Core Advantages
Patented Triaxis Non-Contact Sensing
Built-in IMC structure captures multi-axis magnetic signals, realizing full 360° contactless detection to avoid mechanical wear.
Strong Thermal & Stray Field Resistance
On-chip temperature compensation and cross-axis calibration guarantee stable accurate detection from -40℃ to +150℃.
Dual Analog & PWM Output
Programmable ratiometric analog or high-resolution PWM output, fully compatible with mainstream automotive ECUs.
Automotive Safety Grade Design
Equipped with self-diagnosis, wire break detection and overvoltage protection, meets auto functional safety standards for steering, throttle and transmission systems.
Key Specifications
| Brand | Melexis Triaxis Position Sensor Series |
|---|---|
| RoHS Status | RoHS Compliant / Green Material Matrix (Lead-Free SOIC) |
| EDA/CAD Model | Schematic Symbols, PCB footprints, and magnetic simulation profiles available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 8-SOIC |
| Mounting Type | Surface Mount |

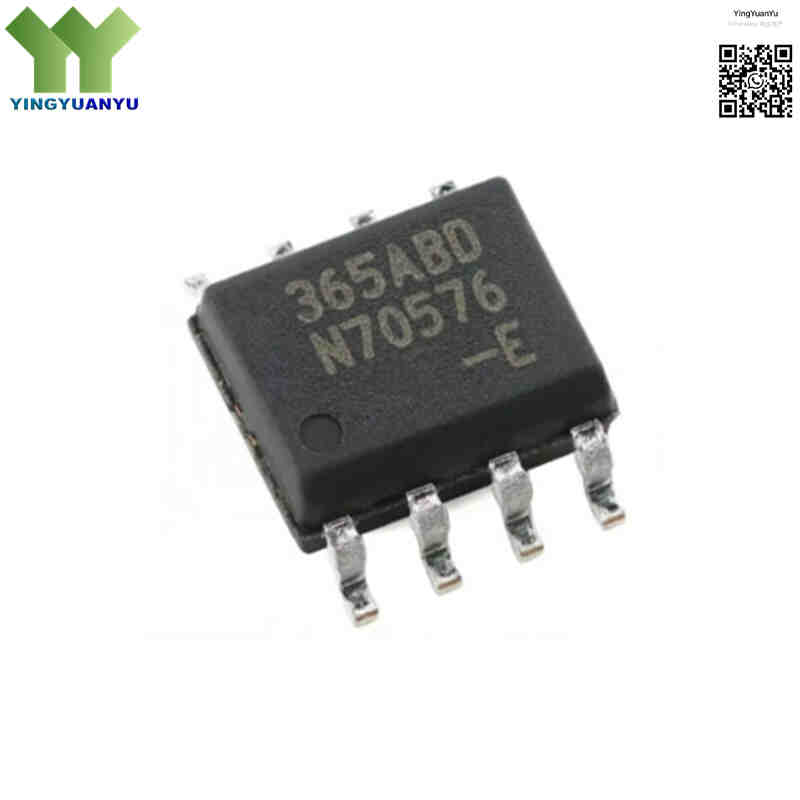

| Surface Marking / Silkscreen | 365ABD Marking |
| Sensing Technology | Triaxis Magnetic Hall Effect Technology with Integrated Magneto-Concentrator (IMC) |
| Measurement Range | Programmable up to 360° Absolute Rotary / Linear Travel Displacement |
| Output Protocol | Programmable Ratiometric Analog Voltage or PWM (Pulse Width Modulation) |
| Supply Voltage | 5.0V Nominal Supply (4.5V to 5.5V Operational Window, Overvoltage Protected up to +24V) |
| Supply Current | 10 mA Typical (Excluding output load draw) |
| Output Resolution | 12-bit DAC for Analog Output / 12-bit Resolution for PWM Drivers |
| Programming Interface | Melexis PTC-04 single-wire protocol via the supply/output pins |
| Operating Temperature Range | -40°C to +150°C (“L” Temperature Suffix) Extended Automotive Grade |
| Storage Temperature Range | -55℃ ~ +150℃ |
| AEC-Q100 Grade | AEC-Q100 Grade 0 Automotive Qualified |
| Reverse Polarity Protection | -12V Reverse Voltage Protection |
| Diagnostic Function | Open/Short Circuit Detection, Internal Fault Monitoring |
| Device Dimension | 4.9mm × 3.9mm × 1.62mm |
| Measurable Rotation Angle | 0° ~ 360° Full Range |
| Magnet Type Recommendation | Parallel Magnetized Permanent Magnet |
Typical Applications
- Automotive Throttle Position Sensors (TPS), Pedal Sensors, and Exhaust Gas Recirculation (EGR) Valves
- Gear Shift Position Sensing, Transmission Shifters, and Dual-Clutch Actuator Controls
- Ride Height Level Sensors, Electronic Suspension Tracking, and Active Chassis Stability Links
- Industrial Valve Actuators, Non-Contact Potentiometers, and Heavy Machinery Joystick Controls
- Robotic Articulated Joints, Steering-Angle Telemetry, and Factory Automation Steering Nodes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheets, samples, stock and bulk prices, submit inquiry form, reply within 24 hours.
Frequently Asked Questions
Q1: What do LDC and ABD mean in the part number?
A1: LDC = -40~+150℃ auto grade & SOIC8 single die package; ABD stands for factory calibrated firmware version.
Q2: Can this sensor detect linear displacement besides rotation?
A2: Yes. Triaxis technology supports both 360° rotary measurement and linear stroke detection with parallel magnet.
Q3: Does it need separate pins for programming?
A3: No. Calibration programming runs via power/output pins with PTC-04 programmer, no extra pins required.
Q4: What circuit protection features are built-in?
A4: Built-in -12V reverse polarity, short-circuit and +24V overvoltage protection for vehicle transient spikes.
Q5: What output signals does MLX90365 support?
A5: Two configurable outputs: ratiometric analog voltage and high-resolution PWM signal.
Q6: Is this chip AEC-Q100 automotive certified?
A6: Yes, Grade 0 qualified, designed for harsh automotive and heavy-duty industrial environments.
Q7: What magnet is recommended for stable sensing?
A7: Parallel magnetized permanent magnet is suggested for optimal measuring accuracy.
Q8: Does the IC include self-diagnosis function?
A8: Yes, internal diagnostics detect open wire faults and abnormal working status for safety-critical systems.
Q9: What’s the storage temperature range of this component?
A9: Storage temperature: -55℃ ~ +150℃.
