MPC562MZP56
MPC562MZP56
| Part Number | MPC562MZP56 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |

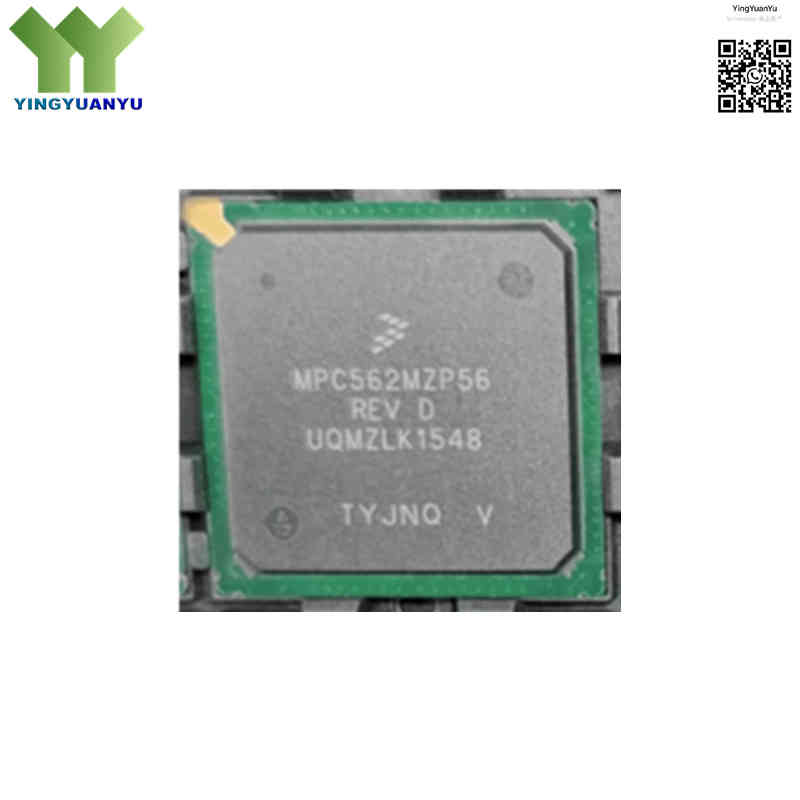

| Description | High-performance 32-bit PowerPC automotive & industrial MCU running at 56MHz, built-in 512KB Flash, TPU3 timing unit and memory controller, packaged in 388-pin PBGA. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MPC562MZP56 is a robust 32-bit PowerPC microcontroller from NXP (Freescale). Designed for automotive powertrain, industrial automation and heavy equipment control, it runs at fixed 56MHz with 512KB on-chip Flash and 32KB SRAM. Equipped with independent TPU3 co-processor to handle timing, PWM and motor control tasks without occupying main core resources. The 388-pin PBGA package supports rich serial interfaces and external memory expansion for high-stability embedded systems.
Core Advantages
Deterministic 32-Bit PowerPC Core Performance
Efficient superscalar 32-bit core with stable cycle processing, ideal for safety-critical real-time industrial control equipment.
Autonomous Time Processor Unit (TPU3)
Independent timing co-processor supports multi-channel PWM, angle and frequency signal processing, releasing main core load for complex algorithms.
High-Reliability Embedded Storage Array
512KB industrial-grade Flash withstands wide temperature fluctuations, featuring long data retention and abundant erase cycles for long-term firmware storage.
Flexible System Memory Interfacing
Built-in external memory controller realizes glitchless expansion of SRAM, Flash and peripherals, supporting customized modular hardware platforms.
Key Specifications
| Brand | NXP Semiconductors MPC5xx PowerPC Family |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Terminal Configuration Available |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and Pinout Footprint Configurations available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 388-BBGA / PBGA (27mm x 27mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | MPC562MZP56 Marking |
| Core Processor Architecture | 32-bit PowerPC Core Platform |
| Maximum Clock Speed | 56 MHz |
| Program Memory Capacity | ROMless, No Internal Embedded Flash, External Flash Memory Required |
| RAM Memory Capacity | 32 KB On-Chip Volatile Static RAM |
| Data Bus Width | 32-bit |
| Number of I/O Ports | Up to 112 GPIO Pins |
| Communication Interfaces | CAN, SPI, SCI, I2C |
| ADC Resolution | 10-bit Multi-channel ADC |
| MSL Moisture Sensitivity Level | MSL 3 (168hrs @30°C/60%RH) |
| Typical Active Supply Current | 120mA |
| Interrupt Controller | Multi-level Programmable Interrupt Vector |
| Peripherals and Co-Processors | Time Processor Unit (TPU3), Enhanced Serial Communications, Watchdog Timers |
| Operating Voltage Supply | Dual Rails Support: 2.5V Core Power and 5.0V I/O Interface Tolerance |
| Operating Temperature Range | -40°C to +125°C Automotive Grade Extended Thermal screening (TA) |
Typical Applications
- Automotive Powertrain Control Units (ECU), Transmission Controllers, and Vehicle Dynamics
- Heavy Industrial Motor Drives, CNC Automation Hubs, and Programmable Logic Controllers (PLC)
- Avionics Control Systems, Military Guidance Modules, and Ruggedized Flight Computers
- Railway Traction Controllers, Power Grid Inverters, and Substation Management Equipment
- High-Reliability Distributed Telemetry Gateways and Multi-Channel Data Loggers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is MPC562MZP56 stock 100% genuine new original?
A: All stock are brand-new original NXP chips with full traceability. As moisture-sensitive BGA components, all chips are stored in sealed moisture-proof ESD bags to avoid soldering defects.
Q2: What does MZP stand for in MPC562MZP56 part number?
A: MZP represents the 388-pin PBGA package, designed for automotive high vibration and wide temperature cycling environments with better reliability than leaded packages.
Q3: What advantages does built-in TPU3 bring to industrial control?
A: TPU3 works independently without occupying PowerPC core resources, realizing jitter-free PWM, motor commutation and timing control even when the main CPU runs complex communication protocols.
Q4: PCB layout suggestions for 388-pin PBGA package?
A: Multi-layer PCB (6~10 layers) is required for fan-out routing. Use blind/buried vias and complete ground planes, with decoupling capacitors placed near power pins. Contact us to get official reference layout files.
Q5: Can I order engineering samples for prototype testing?
A: Small sample orders are supported. Send an inquiry to get sample price and lead time.
Q6: How long is the quality warranty for this MCU?
A: We provide a 12-month factory defect warranty for all original MPC562MZP56 microcontrollers.
Q7: Can I get volume discount for bulk orders?
A: Yes, we offer tiered preferential prices for large quantities. Submit your demand quantity via inquiry for customized quotation.
Q8: Will you provide official NXP datasheet after inquiry?
A: We supply complete official datasheet, pin definition and PCB reference documents once you send an inquiry message.
Q9: Do you support full BOM one-stop component matching?
A: We support one-stop BOM sourcing service. Send your complete component list, we can prepare all required ICs and deliver in one batch.
