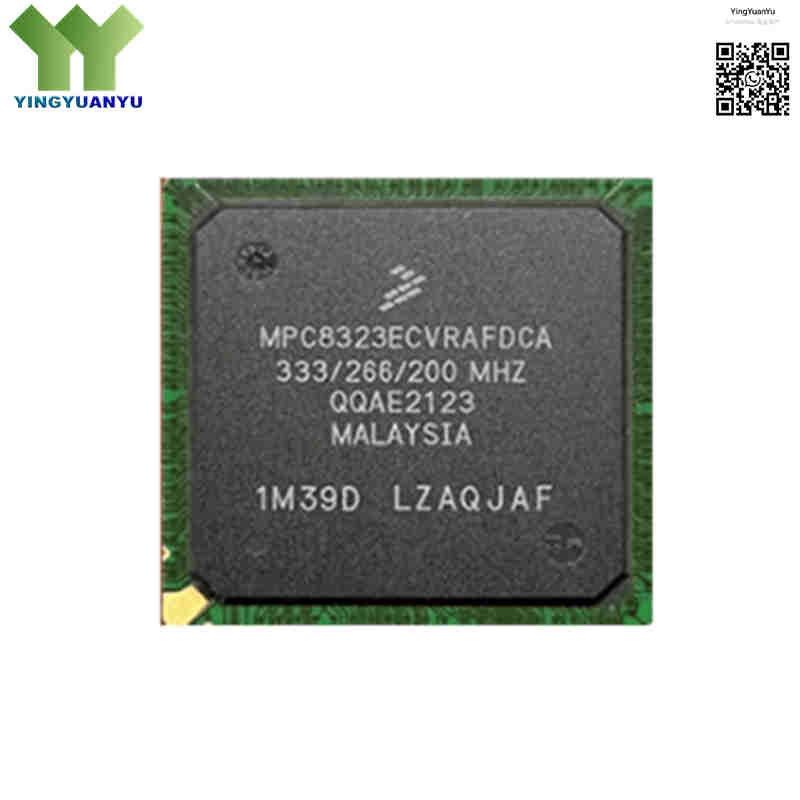

MPC8323ECVRAFDCA
MPC8323ECVRAFDCA
| Part Number | MPC8323ECVRAFDCA |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors (MPU) |
| Description | PowerQUICC II Pro 32-bit communications MPU, e300c2 core at 333MHz, integrated QUICC Engine & hardware SEC encryption accelerator, DDR1/DDR2 memory controller, PCI/USB2.0, 516-PBGA industrial temperature grade processor. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MPC8323ECVRAFDCA is a highly integrated communications system-on-chip (SoC) from NXP PowerQUICC™ II Pro series, built on 32-bit Power Architecture® e300c2 core running up to 333MHz. This single-chip processor integrates a programmable QUICC Engine® for offloading multi-protocol network processing, plus a dedicated on-chip Security Engine (SEC) marked by the “E” suffix for hardware cryptographic acceleration. It embeds native DDR1/DDR2 memory controller, multi-channel communication peripherals and industrial-grade thermal design, eliminating extra auxiliary chips for gateway, industrial control and telecom access equipment. The CVR temperature variant supports wide industrial ambient temperature range, delivering stable high throughput and low CPU overhead for mission-critical embedded networking hardware.
Core Advantages
Integrated QUICC Engine Multi-Protocol Offload
Programmable RISC-based QUICC Engine independently processes Fast Ethernet, ATM/UTOPIA, HDLC and TDM protocols, greatly reducing main e300 core load and improving multi-service network concurrent transmission performance.
On-Chip Hardware Cryptographic Acceleration Engine
Built-in SEC security module provides hardware acceleration for AES, DES, 3DES, MD5 and SHA-1 algorithms, supporting VPN, firewall and secure data transmission without consuming core computing resources.
Enhanced e300c2 32-bit Processing Core
Equipped with dual integer execution units and independent 16KB L1 instruction/data cache, optimized for embedded multi-task operation; no built-in floating-point unit to lower power consumption for battery-powered embedded devices.
Industrial-Grade Wide Temperature Reliability
CVR suffix industrial temperature qualification, stable continuous operation from -40°C to +85°C ambient temperature, suitable for factory automation, telecom field equipment and rugged industrial deployment scenarios.
Key Specifications
| Brand | NXP Semiconductors PowerQUICC Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Halogen-Free Manufacturing Standard |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB Layout Footprint packages available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 516-PBGA (27mm × 27mm × 1mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | MPC8323ECVRAFDCA Marking |
| Core Processor Architecture | Single e300c2 32-bit Power Architecture Core |
| L1 Cache Size | 16KB Instruction Cache + 16KB Data Cache |
| Operating Clock Frequency | 333 MHz Maximum Core Operating Speed |
| Supported Memory Types | 32-bit DDR1 SDRAM, DDR2 SDRAM Integrated Memory Controller |
| Integrated Peripheral Interfaces | 32-bit PCI, USB 2.0 Full/Low Speed, Dual 10/100 Fast Ethernet, UART, SPI, I2C, GPIO, UTOPIA, TDM |
| Ethernet Interface Rate | Dual 10/100 Mbps Fast Ethernet Controllers |
| I2C Max Clock Speed | 400kHz Fast Mode I2C Bus |
| Cryptographic Acceleration Algorithms | AES, DES, 3DES, MD5, SHA-1 Hardware Encryption/Hash Acceleration |
| Supply Operating Voltage Range | 1.0 V Core Logic, 1.8 V / 2.5 V / 3.3 V I/O Interface Rails |
| Voltage Tolerance | ±5% Tolerance for All Supply Voltage Rails |
| Typical Active Operating Current | 320mA Typical Full Load Active Mode Current |
| Low Power Standby Current | <10mA Idle Standby Power Consumption |
| Operating Temperature Range | -40°C to +85°C (Industrial-Grade Ambient TA) |
| Storage Temperature Range | -55°C ~ +125°C Long-Term Storage Temperature |
| Moisture Sensitivity Level (MSL) | MSL Level 3 (168 Hours Floor Life) |
Typical Applications
- SOHO Broadband Gateways, ADSL/VDSL Residential Modems & Service Provider Edge Routers
- SME VPN Security Routers, Hardware Encrypted Firewalls & Enterprise Secure Access Points
- Factory Automation PLC Controllers, Smart Grid Nodes & Industrial Embedded Control Hardware
- Telecom IAD Integrated Access Devices, Multi-Service ATM/IP Network Migration Equipment
- Laboratory Test & Measurement Instruments, Data Acquisition & Protocol Analyzer Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
