MPL3115A2R1
MPL3115A2R1
| Part Number | MPL3115A2R1 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Pressure Sensors; Digital Pressure & Temperature Sensor |
| Description | High Precision I2C Barometric Pressure & Altimeter Sensor,50Kpa~1.5bar,1.95V~3.6V, 20-bit Resolution, LGA-8(3×5) Package |
Product Overview
The MPL3115A2R1 is a high-precision, digital I2C pressure and temperature sensor from NXP Semiconductors. It integrates a piezoresistive pressure sensor, 20-bit ADC, and signal processing circuitry to deliver accurate barometric pressure, altitude, and temperature measurements. The device features ultra-low power consumption, high resolution, and built-in interrupt functions, making it ideal for portable navigation, weather monitoring, IoT devices, and altitude tracking applications.
| Key Specifications | |
|---|---|
| Brand | NXP Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LGA-8(3x5mm) |
| Mounting Type | Surface Mount (SMD) |

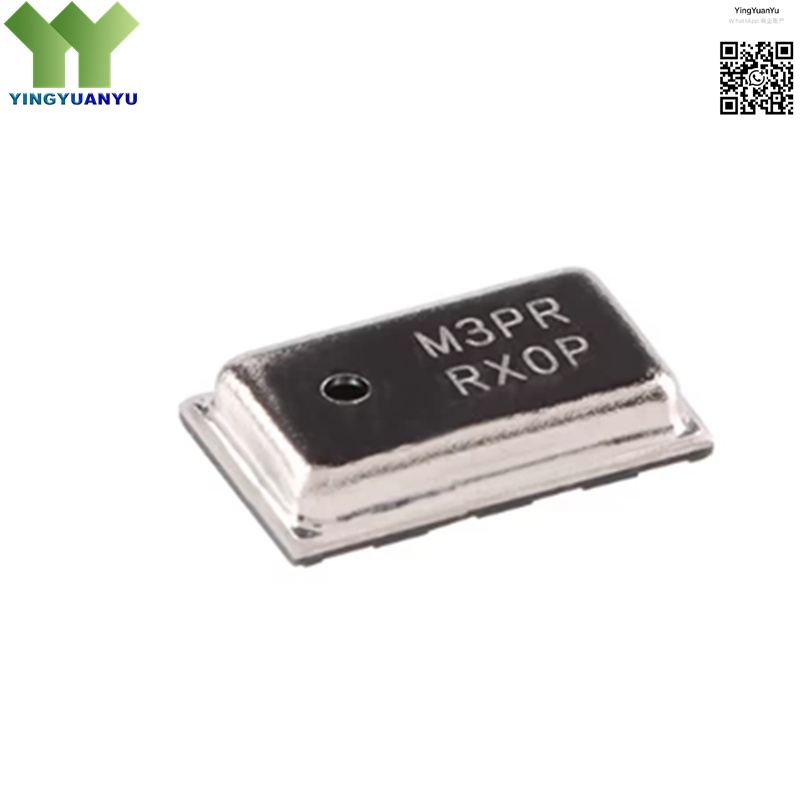

| Surface Marking / Silkscreen | M3PR |
| Pressure Range | 50Kpa~1.5bar (Absolute) |
| Interface | I2C Serial Interface |
| Supply Voltage | 1.95V~3.6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Smartphones, Tablets & Wearable Devices
- Altimeters for Drones, UAVs & GPS Systems
- Indoor & Outdoor Weather Monitoring Stations
- IoT Environmental Sensor Nodes
- Portable Navigation & Positioning Systems
- Industrial Pressure & Level Measurement
- Mobile Health & Fitness Equipment
- High-Accuracy Altitude Tracking Devices
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
