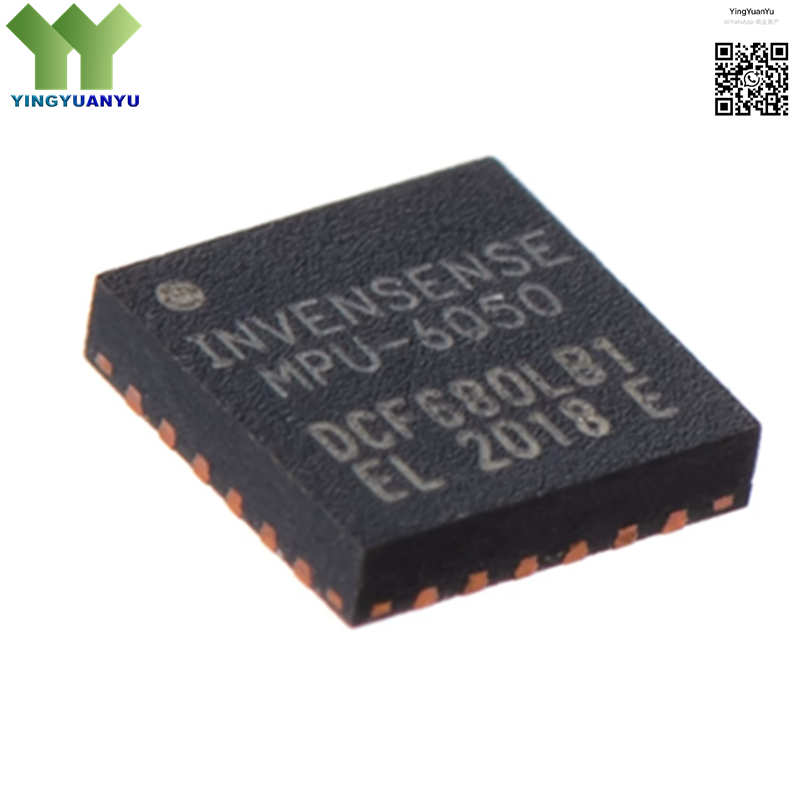

MPU-6050
MPU-6050
| Part Number | MPU-6050 |
| Manufacturer | InvenSense (TDK) |
| Category | Sensors > Motion Sensors > 6-Axis IMU |
| Description | 6-Axis MEMS Inertial Sensor,16-Bit Integrated 3-Axis Accelerometer + 3-Axis Gyroscope,QFN-24-EP(4×4) Package |
Product Overview
The MPU-6050 is a widely used 6-axis inertial measurement unit integrating high-performance 3-axis accelerometer and 3-axis gyroscope inside a single compact chip based on advanced MEMS technology. It features built-in 16-bit ADC converters, programmable measurement ranges and standard I2C communication interface, greatly simplifying peripheral circuit design and reducing PCB space occupation. With low power consumption, stable output and outstanding cost performance, this sensor realizes precise motion tracking, tilt detection and attitude calculation, extensively adopted in wearable devices, drones, IoT modules and various consumer electronic products.
Key Specifications
| Brand | InvenSense |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | QFN-24-EP(4×4) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | MPU-6050 Marking |
| Sensor Combination | 3-Axis Accelerometer (X,Y,Z) + 3-Axis Gyroscope (X,Y,Z) |
| Accelerometer Range | ±2g / ±4g / ±8g / ±16g |
| Gyroscope Range | ±250 / ±500 / ±1000 / ±2000 dps |
| Communication Interface | I2C |
| Operating Voltage | 2.375V ~ 3.46V |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- RC Drone & Aircraft Attitude Control
- Smart Wearable Fitness Equipment
- VR / AR Virtual Reality Devices
- Smart Home Motion Detectors
- Industrial Vibration Monitoring Modules
- Robot Motion Sensing
- Smartphone and Tablet Motion Functions
- IoT Wireless Sensing Nodes
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is MPU-6050 compliant with RoHS standard?
A: Yes, MPU-6050 fully meets RoHS environmental requirements.
Q2: Can customers get free samples for testing?
A: Sample service is available, submit your demand via Quick Inquiry form.
Q3: What package and mounting type does this sensor adopt?
A: It is QFN-24-EP(4×4) package with surface mount installation.
Q4: What is the internal ADC resolution of MPU-6050?
A: It is equipped with built-in 16-bit ADC for both accelerometer and gyroscope.
