MT25QU512ABB1EW9-0SIT
MT25QU512ABB1EW9-0SIT
| Part Number | MT25QU512ABB1EW9-0SIT |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Category | Integrated Circuits (ICs) > Memory > NOR Flash |
| Description | High-performance 512Mb Serial NOR Flash memory featuring a 1.8V supply voltage, SPI/SFI interfaces with Dual/Quad I/O and Twin-Quad DTR protocols, optimized for fast boot speeds and high-density industrial and automotive code storage. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
MT25QU512ABB1EW9-0SIT is Micron’s 512Mb (64MB) industrial serial NOR Flash operating at 1.8V. It supports Single/Dual/Quad SPI and Twin-Quad DTR interfaces for fast boot and high throughput. Built with uniform 4KB/32KB/64KB memory blocks, it delivers stable read performance, 100,000 program/erase cycles and 20-year data retention. Packaged in compact WPDFN-8 (8×6mm) SMD form, it fits FPGA configuration, automotive infotainment, network switches and industrial controller firmware storage.
Core Advantages
SuperSpeed Quad I/O and Twin-Quad Throughput
Up to 166 MHz STR clock and 90 MHz DTR frequency, delivering high-speed transmission to meet fast-boot demands of embedded processors and FPGAs.
Eco-Friendly Low 1.8V Power Architecture
1.7V~2.0V single-rail supply cuts dynamic & standby power draw versus old 3.3V flash, ideal for heat-limited compact PCBs.
Robust Security and Device Integrity Protection
Hardware sector write lock + lockable 64-byte OTP zone prevents accidental overwriting or tampering of boot firmware.
Uniform Block and Sector Architecture Flexibility
Standardized 4KB/32KB/64KB memory partitions simplify firmware partition management and wear leveling tuning.
Uniform Block and Sector Architecture Flexibility
Utilizes symmetrical 64KB blocks and 4KB sectors across the entire memory space, allowing embedded firmware developers to easily organize data storage, speed up page rewrite cycles, and optimize wear-leveling efficiency.
Key Specifications
| Brand | Micron Technology |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard Packaging (Green Material Matrix) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | WPDFN-8 (8mm x 6mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

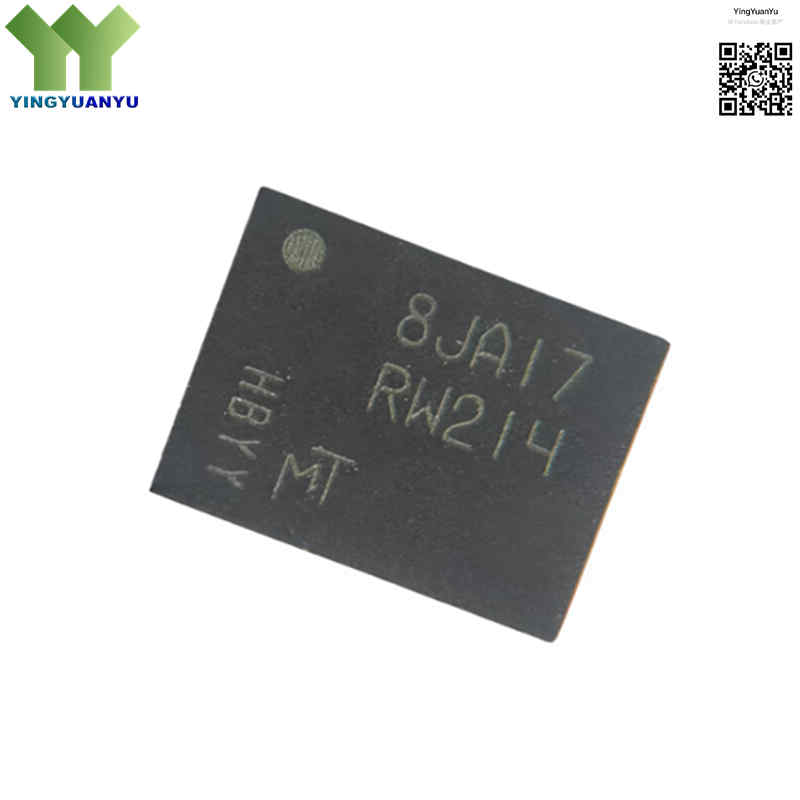

| Surface Marking / Silkscreen | RW214 Marking |
| Memory Density Capacity | 512 Mb (64 MB) Organized into 8-bit Word Width configurations |
| Interface Signaling Types | SPI, Dual SPI, Quad SPI (QSPI), and Twin-Quad DTR SPI Protocol Frameworks |
| Maximum Clock Operating Speed | 166 MHz Max (STR Mode); 90 MHz Max (DTR Twin-Quad Mode) |
| Operational Voltage Range (Vcc) | +1.7V to +2.0V (1.8V Nominal Operating Supply Domain Range) |
| Program / Erase Symmetrical Blocks | Uniform 4 KB Sectors, 32 KB Sub-blocks, and 64 KB Main Blocks |
| Page Programming Time | Typical 1.8ms per 256-byte page |
| OTP One-Time Programmable Storage | Dedicated lockable 64-byte OTP memory zone |
| Integrated Functional Features | XIP Execute-in-Place, CRC data error detection, multi-stage hardware write lock |
| Data Retention / Endurance Lifecycle | Minimally 20 Years Data Retention / Rated up to 100,000 Program/Erase Cycles per sector |
| Operating Temperature Range | -40°C to +85°C (Industrial Grade High-Performance Specification Window) |
Typical Applications
- FPGA Bitstream Configuration Storage, Complex CPLD Initialization Code, and ASIC Firmware Boots
- High-Speed Enterprise Networking Routers, Base Station Cellular Hubs, and Fiber Optic Switching Frameworks
- Automotive Advanced Driver Assistance Systems (ADAS), In-Vehicle Infotainment (IVI), and Smart Dashboard Display Clusters
- Industrial PLC controllers, Rugged Single Board Computers (SBCs), and Smart Grid Telemetry Stations
- High-End Computing Servers, Cloud Storage Array Controllers, and Automated Diagnostic Devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available inventory of the MT25QU512ABB1EW9-0SIT 100% genuine and factory-original?
A: Yes, we guarantee that all MT25QU512ABB1EW9-0SIT components in our warehouse are 100% brand-new, original factory stock from Micron Technology. Every order batch is tracked, logged, and shipped inside standard moisture-sensitive anti-static ESD shielding wrappers.
Q2: Can this 1.8V NOR Flash device be connected directly to a microcontroller operating on a 3.3V I/O bank?
A: No, the MT25QU512ABB1EW9-0SIT operates strictly within a 1.7V to 2.0V voltage tolerance window. Connecting it directly to 3.3V logic signals can permanently damage the silicon. If your main controller uses 3.3V, you must use a bidirectional logic level shifter between the interfaces.
Q3: What does the specific “1EW9” string designate in Micron’s package ordering hierarchy?
A: In Micron’s part numbering system, the “EW9” indicator specifies an 8-contact WPDFN package layout configuration measuring 8mm x 6mm. The preceding “1” designates that the package material utilizes a standard, lead-free green compound formulation.
Q4: How can our technical division request hardware initialization source code, reference layout guidelines, or ask for special volume pricing structures?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
