MT9J003I12STCU-DP
MT9J003I12STCU-DP
| Part Number | MT9J003I12STCU-DP |
|---|---|
| Manufacturer | onsemi (Aptina) |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.3″ 10.66 MP High‑Speed Digital Color CMOS Image Sensor, A‑Pix™ Pixel Technology, HiSPi/Parallel Output, 48‑pin LCC Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
MT9J003I12STCU‑DP is a 1/2.3‑inch 10.66‑MP CMOS image sensor from onsemi (Aptina). Adopting A‑Pix™ pixel technology, it delivers good low‑light performance and low crosstalk. It supports 10.66MP still capture and 1080p@60fps video, with dual HiSPi and parallel output interfaces, suitable for cameras, industrial vision and biometric equipment.
Core Advantages
Proprietary A‑Pix™ Pixel Architecture
Improves quantum efficiency and light‑sensing capability, effectively suppresses crosstalk under low‑light conditions.
High‑Resolution 10.66 MP Imaging & Full HD Video
3856 × 2764 pixel array, max 15fps at full resolution, supports smooth 1080p@60fps video output.
Flexible Dual High‑Speed Output Interfaces
4‑lane HiSPi and parallel dual interfaces, high bandwidth, fewer pins and lower EMI interference.
Advanced On‑Chip Programmability
Built‑in binning, sub‑sampling and windowing functions, quick switch between full‑resolution shooting and video preview.
Key Specifications

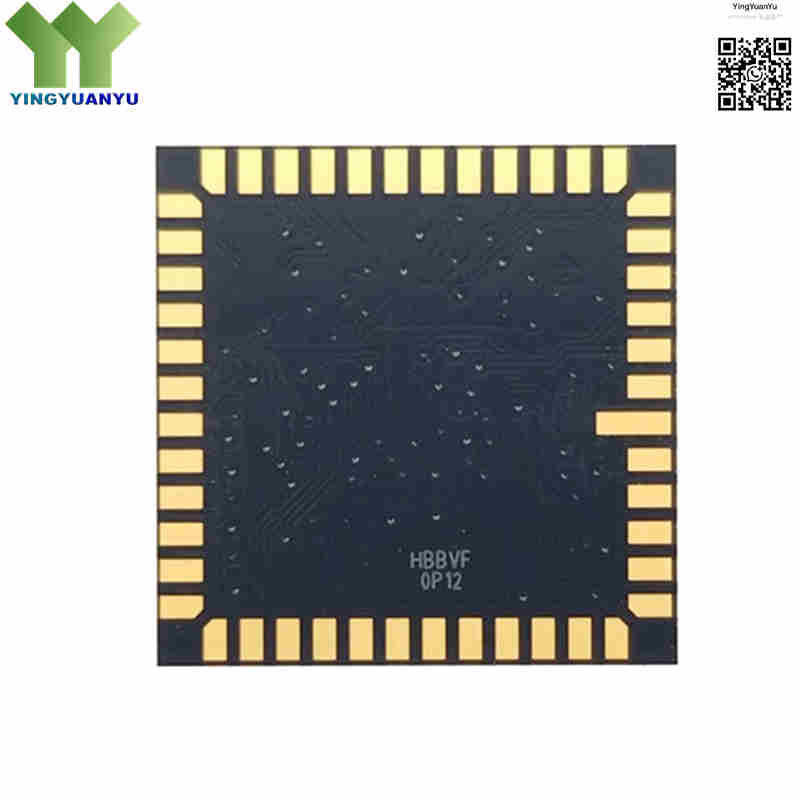

| Brand | onsemi / Aptina |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 48‑pin LCC (10 mm × 10 mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | MT9J003I12STCU |
| Active Array Size | 3856 (H) x 2764 (V) approx. 10.66 Megapixels |
| Optical Format | Type 1/2.3 inch (Diagonal 7.70 mm) |
| Pixel Size | 1.67 µm (H) x 1.67 µm (V) |
| Chroma | Color (RGB Bayer Pattern) |
| Maximum Frame Rate | 15 fps @ Full 10.66 MP, 60 fps @ 1080p Full HD |
| Output Interface | HiSPi (4‑lane) / Parallel Data Output |
| ADC Resolution | 12‑bit On‑Chip A/D Converter |
| Input Clock Frequency | 48 MHz |
| HiSPi Maximum Data Rate | 2.8 Gbps |
| Operating Temperature Range | -30°C to +70°C |
| CRA (Chief Ray Angle) | 0° |
| Supply Voltage | Analog: 2.8‑3.3 V; Digital: 1.7‑2.8 V; I/O: 1.7‑2.8 V |
Typical Applications
- Digital Still Cameras (DSC) and High‑Definition Video Camcorders (DVC)
- Industrial Machine Vision, Quality Control Inspection, and Document Scanners
- Medical Imaging Devices, Digital Microscopy, and Biometric Scanners
- High‑Resolution Action Cameras, Drones, and Aerial Imagery Systems
- Intelligent Traffic Systems (ITS), Security Cameras, and AI Edge Vision Equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are the main specifications of the MT9J003I12STCU‑DP sensor?
A: 1/2.3‑inch optical format, 10.66MP(3856×2764), 1.67µm pixel, 0° CRA, 12‑bit ADC, A‑Pix™ technology, 48‑pin iLCC‑48 package.
Q2: What output interfaces does MT9J003I12STCU‑DP support?
A: 4‑lane HiSPi serial interface(max 2.8Gbps) and parallel output for flexible hardware integration.
Q3: What frame rates can this sensor achieve?
A: 15fps for full‑resolution 10.66MP still capture; up to 60fps for 1080P Full‑HD video.
Q4: What do suffix ‑DP,‑DR,‑TP mean for MT9J003 series?
A:‑DP:Dry‑pack tray with protective film;‑DR:Dry‑pack tray without film;‑TP:Tape & Reel. Die core is identical, only packaging differs.
Q5: Difference between MT9J003I12STCU‑DP and MT9J003I12STCV2‑DP?
A: Same die and package.‑CU=0° CRA,‑CV2=2° CRA. CRA must match lens, cannot direct swap without lens modification.
Q6: Is there pin‑to‑pin drop‑in replacement for MT9J003I12STCU‑DP?
A: No direct pin‑compatible replacement. Alternatives require PCB redesign and firmware tuning. Submit inquiry for recommended parts.
Q7: What is MT9J003D00STMUC2CBC1‑200?
A: Bare‑die version for COB bonding. Not SMT‑compatible, different from packaged iLCC‑48 MT9J003I12STCU‑DP.
Q8: How to get datasheet, register code or bulk price?
A: Request datasheets, sample units and bulk quotations through our Quick Inquiry form.
