MT9V022IA7ATM-DP
MT9V022IA7ATM-DP
| Part Number | MT9V022IA7ATM‑DP |
|---|---|
| Manufacturer | onsemi (Aptina / Micron) |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/3″ WVGA Monochrome CMOS Image Sensor, TrueSNAP Global Shutter, AEC‑Q100 Automotive Qualified, HiDy HDR, 52‑Pin IBGA Dry‑Pack Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

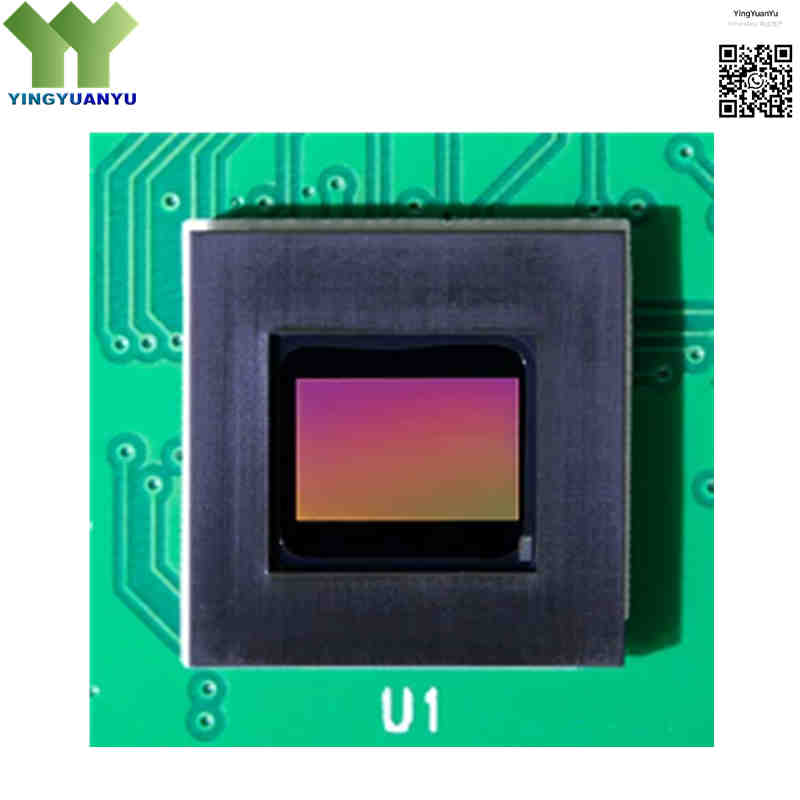

MT9V022IA7ATM‑DP is onsemi AEC‑Q100 automotive‑grade 1/3‑inch WVGA monochrome CMOS image sensor with TrueSNAP global‑shutter. 752×480 array with 6.0 μm pixels, delivers 60 fps full‑resolution and HiDy HDR performance. Suitable for automotive vision, machine vision and barcode scanning, supplied in 52‑pin IBGA dry‑pack package.
Core Advantages
TrueSNAP Global Shutter
Simultaneous exposure eliminates rolling‑shutter distortion for high‑speed object capture.
HiDy High Dynamic Range
>55 dB typical dynamic range, >80 dB with HiDy HDR for high‑contrast lighting scenarios.
6.0 μm Large Monochrome Pixel
High quantum‑efficiency for low‑light and near‑infrared imaging.
AEC‑Q100 Automotive‑Grade
-40℃ ~ +85℃ operating range; ROI, AEC/AGC built‑in for easy system integration.
Key Specifications
| Brand | onsemi / Aptina / Micron |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 52‑Pin IBGA (9×9mm, Dry‑Pack) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | MT9V022IA7ATM |
| Active Array Size | 752 (H) x 480 (V) Wide VGA Resolution |
| Optical Format | Type 1/3 inch (Diagonal 5.35 mm) |
| Pixel Size | 6.0 µm (H) x 6.0 µm (V) Square Pixels |
| Shutter Type | TrueSNAP True Global Shutter |
| Chroma | Monochrome |
| Dynamic Range | >55 dB typical; >80 dB in HiDy HDR mode |
| Maximum Frame Rate | 60 fps @ full WVGA resolution; Higher frame rates with ROI cropping |
| Master Clock | 26.6 MHz |
| ADC Resolution | 10‑bit Column‑Parallel ADC |
| Responsivity | 4.8 V/lux‑sec @ 550 nm |
| Output Interface | 10‑bit Parallel Digital Output, LVDS optional variant |
| Supply Voltage | 3.0V ~ 3.6V, typical 3.3V |
| Operating Temperature Range | ‑40°C to +85°C, AEC‑Q100 Automotive Qualified |
Typical Applications
- High‑Speed Industrial Machine Vision, Robotics, Factory Automation
- High‑Speed 1D / 2D Barcode Scanners & Logistics Reading Equipment
- Automotive Vision Systems, ADAS peripheral sensing
- ITS Intelligent Transportation, License Plate Recognition
- High‑speed optical inspection, infrared assisted imaging
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What shutter type for MT9V022IA7ATM‑DP?
A: TrueSNAP global shutter, eliminates rolling‑shutter distortion for fast‑moving objects.
Q2: What is its resolution and pixel size?
A: 752(H) × 480(V) WVGA, 6.0 μm square pixel, 1/3‑inch, monochrome output.
Q3: What is HiDy HDR performance?
A: >55 dB typical dynamic range; >80 dB after enabling HiDy HDR mode.
Q4: Difference among ‑DP / ‑DR / ‑TP suffixes?
A: Same chip and IBGA‑52 package.‑DP:Dry‑Pack tray；‑DR:Dry‑Reel；‑TP:Tape & Reel. Only packaging differs.
Q5: MT9V022IA7ATM‑DP vs MT9V022IA7ATC‑DP?
A: Same sensor performance. ATM‑DP:IBGA‑52 with AEC‑Q100 automotive grade. ATC‑DP:CLCC‑52 industrial version, no auto qualification. Not pin‑compatible, PCB modification needed.
Q6: Is MT9V022IA7ATM‑DP AEC‑Q100 qualified?
A: Yes,‑40℃ ~ +85℃ operating range for automotive projects.
Q7: Any pin‑to‑pin drop‑in replacement?
A: No direct drop‑in alternative. Other global‑shutter WVGA mono sensors need full hardware & software re‑validation.
Q8: What is its supply voltage?
A: 3.0V‑3.6V operating voltage, typical 3.3V.
Q9: How to get datasheet and bulk price?
A: Submit quick inquiry for datasheet and volume quotation.
