MT9V034C12STM-DP
MT9V034C12STM-DP
| Part Number | MT9V034C12STM-DP |
|---|---|
| Manufacturer | onsemi (formerly Aptina) |
| Category | Sensors, Transducers – Image Sensors, Camera |

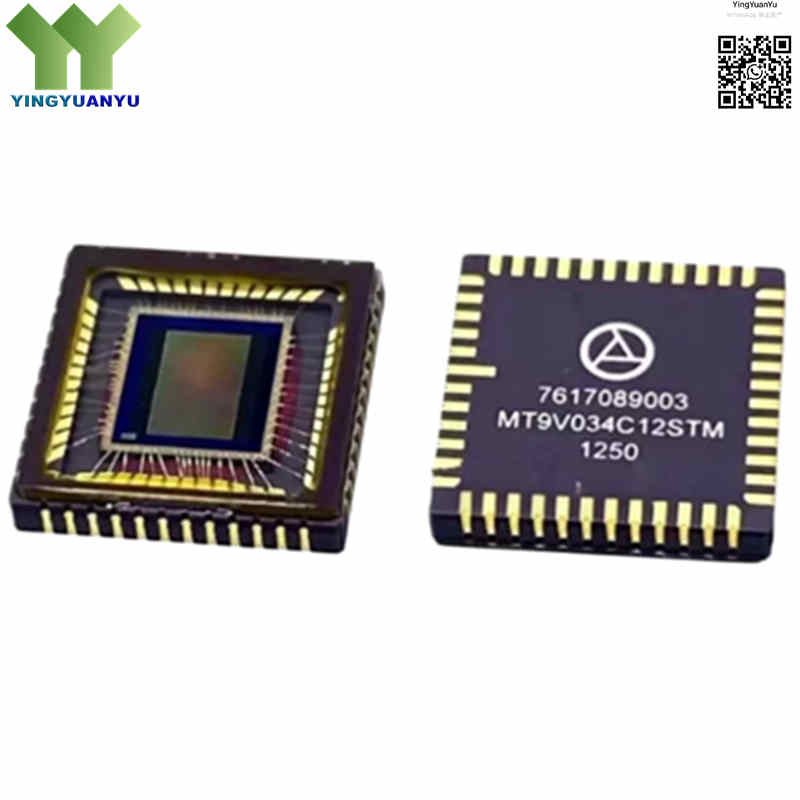

| Description | Wide VGA CMOS Digital Image Sensor, Monochrome,LCC-48(11.4×11.4mm) Package |
Product Overview
The MT9V034C12STM-DP is a high-performance, Wide VGA-format CMOS digital image sensor designed for demanding industrial, automotive, and machine vision applications. Featuring onsemi’s advanced DigitalClarity® technology, this monochrome sensor excels in challenging low-light environments and high-dynamic-range scenes. Its global shutter architecture ensures distortion-free capture of fast-moving objects, making it an ideal choice for high-speed imaging systems. Packaged in a robust LCC-48(11.4×11.4mm) package, it delivers reliable operation across extreme temperature ranges while maintaining exceptional signal-to-noise ratios.
Core Advantages
True Global Shutter Technology
Unlike standard rolling shutter sensors that introduce motion blur and skewing, the MT9V034 utilizes a true global shutter. This allows the sensor to expose all pixels simultaneously, capturing fast-moving targets with precise geometric accuracy and zero motion artifacts.
Superior High Dynamic Range (HDR)
Equipped with an advanced linear-logarithmic response mode, the sensor can capture scenes with wide intrascene dynamic range (up to 100dB). This ensures that details in both extremely bright highlights and deep shadows are preserved in a single frame.
Exceptional Low-Light Performance
With high quantum efficiency and low dark current, the MT9V034 delivers crisp, clear monochrome images even in near-dark conditions, minimizing the need for high-intensity external illumination.
Flexible Frame Rate and ROI Control
Supports variable frame rates up to 60 frames per second (fps) at full WVGA resolution. Users can also program a specific Region of Interest (ROI) to significantly increase frame rates for specialized tracking applications.
Key Specifications
| Parameter | Specification Details |
|---|---|
| Brand | onsemi |
| RoHS Status | RoHS Compliant / Lead Free |
| EDA / CAD Models | PCB Footprint and Symbol Available |
| Warranty | 1-Year Manufacturer Warranty |
| Package / Case | LCC-48(11.4×11.4mm) |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking | MT9V034C12STM Marking |
| Active Pixel Array | 752 H x 480 V (Wide VGA) |
| Optical Format | 1/3-inch |
| Pixel Size | 6.0 µm x 6.0 µm |
| Shutter Type | True Global Shutter |
| Frame Rate | Up to 60 fps at full resolution |
| Supply Voltage | 3.3V Real (3.0V to 3.6V I/O) |
| Operating Temperature | -30°C to +70°C (Industrial Grade) |
Typical Applications
- Factory Automation: High-speed sorting, quality control inspection, and pick-and-place alignment systems.
- Barcode Scanning: Industrial 1D and 2D barcode readers requiring fast motion decoding.
- Robotics & UAVs: Simultaneous Localization and Mapping (SLAM), obstacle avoidance, and machine vision guidance.
- Automotive Electronics: Driver monitoring systems (DMS), lane departure warning, and cabin sensing.
- Biometrics: High-precision iris scanning, fingerprint recognition, and facial geometry systems.
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the main advantage of the MT9V034C12STM-DP’s global shutter?
A1: The global shutter exposes all pixels at the exact same moment. This completely eliminates the motion skew and distortion found in rolling shutter sensors, making it perfect for freezing fast-moving objects in machine vision applications.
Q2: Does this sensor support High Dynamic Range (HDR) imaging?
A2: Yes, the MT9V034 features an advanced linear-logarithmic pixel response that enables a dynamic range of up to 100dB, capturing clear details in highly contrastive lighting environments.
Q3: Is the MT9V034C12STM-DP a color or monochrome image sensor?
A3: This specific part number is a monochrome (black and white) sensor, which provides higher quantum efficiency and sharper details compared to color variants, as it does not require a Bayer filter.
Q4: Can I increase the frame rate beyond 60 fps?
A4: Yes. By defining a smaller Region of Interest (ROI) via register configurations, you can achieve significantly higher frame rates for tracking applications.
