MW6S010GNR1
MW6S010GNR1
| Part Number | MW6S010GNR1 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Category | Discrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFETs / Power Transistors |
| Description | 10W CW LDMOS RF Power Transistor, 28V N‑Channel Lateral MOSFET, 450MHz‑1.5GHz Frequency Range, TO‑270‑2 Surface‑Mount Gull‑Wing Package, Obsolete EOL component with residual stock available. |
| Stock Status | In Stock (Obsolete ) |
| Origin | Original Factory |
Product Overview
The MW6S010GNR1 is NXP (Freescale) 10W N‑channel LDMOS RF power transistor for broadband driver / pre‑driver amplifiers across 450MHz‑1.5GHz. Operating at 28V, it delivers typical 18dB gain with good VSWR ruggedness for A‑class / AB‑class base‑station, multi‑carrier and digital‑tuning systems. This device is officially obsolete, only residual stock is available.
Core Advantages
Wide Bandwidth Coverage
450MHz‑1.5GHz broadband performance, ideal for multi‑band wireless infrastructure pre‑driver circuits.
High Gain & Good Ruggedness
Typical 18dB gain @900MHz, strong load‑mismatch tolerance, stable under CW and modulated‑signal operation.
SMT Gull‑Wing Package
TO‑270‑2 (Case 1265A‑03) surface‑mount gull‑wing package, supports automated PCB assembly.
Mature LDMOS Technology
6th‑generation LDMOS process, proven reliability for legacy wireless communication equipment maintenance.
Key Specifications
| Brand | NXP Semiconductors / Freescale |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | TO‑270‑2 (Case 1265A‑03) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

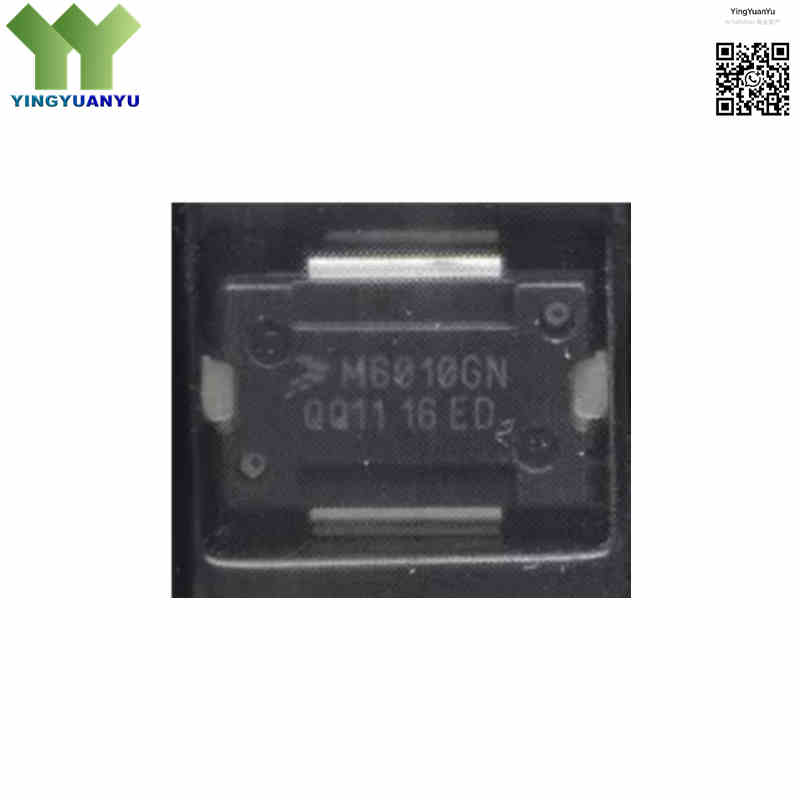

| Surface Marking / Silkscreen | MW6010GN Marking |
| Transistor Technology | 6th Generation N‑Channel LDMOS RF Power FET |
| Frequency Range | 450 MHz to 1.5 GHz |
| RF Output Power (Pout) | 10 W CW (Typical @ 900MHz, 28V) |
| Drain‑Source Breakdown Voltage (Vdss) | 68 V |
| Operating Drain Voltage (VDS) | 28 V DC (Nominal Test Condition) |
| Power Gain (Gp) | Typ. 18 dB (@ 900 MHz, 28V) |
| Continuous Drain Current (Id) | 125 mA (Test Condition) |
| Input Capacitance (Ciss) | Approx 23 pF |
| Reverse Transfer Capacitance (Crss) | Approx 0.32 pF |
| Gate Threshold Voltage (Vgs(th)) | Approx 3 V |
| Device Configuration | Single |
| Operating Junction Temperature (Tj) | -65°C to +150°C |
| Packaging Format | Tape & Reel (-R1 suffix) / Anti‑Static Tray |
| Lifecycle Status | Obsolete / End‑of‑Life |
Typical Applications
- A‑class / AB‑class base station power amplifier pre‑driver for 450MHz‑1.5GHz band
- Multi‑carrier RF power amplification
- Digital tuning wireless communication equipment
- Broadband RF test instrument driver stage
- Legacy wireless infrastructure maintenance & repair
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days subject to residual stock check |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock verification, BOM quotation or cross‑reference replacement consultation, please submit your inquiry via contact form, we will reply you within 24 hours.
Frequently Asked Questions
Q1: What does the “R1” suffix stand for in MW6S010GNR1?
A: The “R1” suffix indicates standard Tape & Reel packaging (typically 500 units per reel) designed for SMT automated assembly.
Q2: What operating voltage range is recommended for the MW6S010GNR1?
A: The nominal drain supply voltage (VDS) is 28V DC, though it can operate reliably within typical 26V to 30V working range.
Q3: Is the MW6S010GNR1 suitable for continuous wave (CW) operations?
A: Yes, the device is fully rated for 10W CW output power and features excellent thermal dissipation characteristics for CW applications.
Q4: Can MW6S010GNR1 be directly replaced with MW6S010NR1?
A: They share nearly identical electrical parameters, only minor difference on package lead‑form. It can be referenced for replacement, brief circuit verification is suggested.
Q5: Are there cross‑brand alternative parts for MW6S010GNR1?
A: Ampleon series LDMOS can be taken as reference. Different brands differ in capacitance and thermal performance, matching network needs re‑tuning.
Q6: Is MW6S010GNR1 still in active mass production?
A: This part is officially obsolete / EOL. Only residual stock is available, not suggested for new‑project mass production.
Q7: How can I request datasheets, S‑parameter files, or volume pricing?
A: Please submit your request via our Quick Inquiry form, and our technical engineering and sales team will reply you within 24 working hours.
