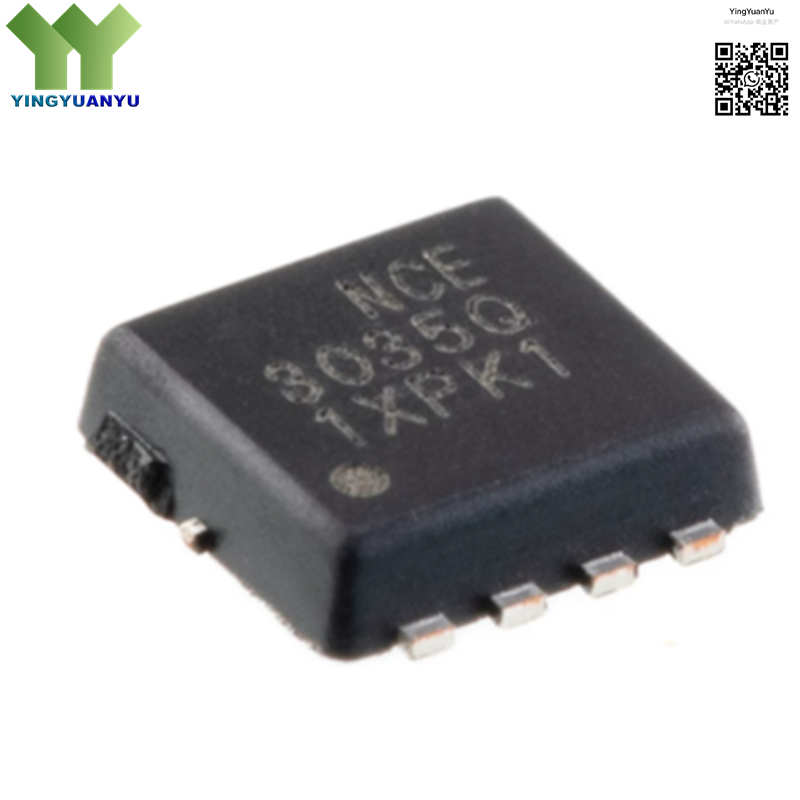

NCE3035Q
NCE3035Q
| Part Number | NCE3035Q |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 30V, 35A,11 mΩ, Low On-Resistance, DFN-8(3×3) SMD Package |
Product Overview
The NCE3035Q is an N-channel surface-mount power MOSFET developed by NCE Electronics based on advanced trench process technology. It features low drain-source on-resistance to reduce conduction loss and improve power conversion efficiency, with fast switching performance and good thermal stability. Designed in compact SMD package for automated SMT assembly, it saves PCB layout space effectively. With reliable large-current load capability, this cost-effective component is widely applied in portable electronics power management, DC-DC conversion and various load switching circuits.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | DFN-8(3×3) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | NCE3035Q |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Id) | 35 A |
| Drain-Source On Resistance (Rds(on)) | 11 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- DC-DC Step Down Converter Modules
- Battery Powered Device Management Circuits
- Portable Charger Control Boards
- Load Switching Protection Circuits
- Smart Home Electronic Equipment
- IoT Wireless Module Power Supply
- Consumer Adapter Power Circuits
- Small Motor Drive Control Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE3035Q RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts DFN-8(3×3) package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
