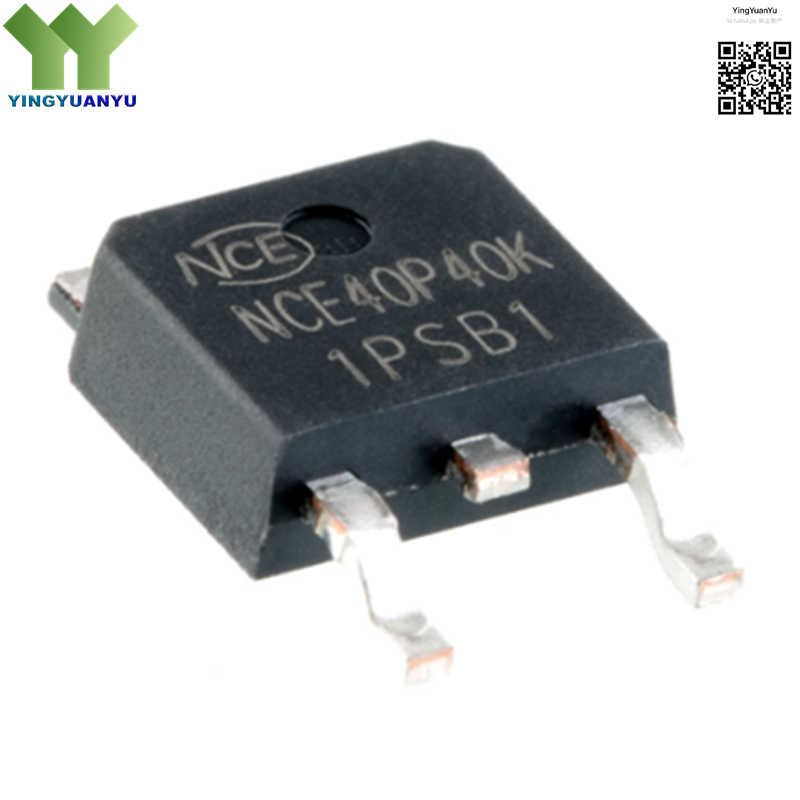

NCE40P40K
NCE40P40K
| Part Number | NCE40P40K |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | P-Channel Power MOSFET, 40V, 40A,14 mΩ, Low On-Resistance,TO-252-2L Package |
Product Overview
The NCE40P40K is a high-performance P-channel power MOSFET developed by NCE Electronics. It adopts advanced trench technology to achieve ultra-low on-resistance, minimizing conduction loss and improving overall system efficiency. This device features large current carrying capacity, fast switching speed and excellent thermal stability, ensuring reliable operation under various load conditions. Packaged in standard TO-220-3 package for easy installation and heat dissipation, it is a cost-effective solution widely used in battery protection, power management, load switching and low-voltage power conversion systems for consumer and industrial electronics.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-252-2L |
| Mounting Type | surface mounting |
| Surface Marking / Silkscreen | NCE40P40K |
| Channel Type | P-Channel |
| Drain-Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Id) | 40 A |
| Drain-Source On Resistance (Rds(on)) | 14 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- Battery Protection and Management Circuits
- Load Switching Modules
- Reverse Polarity Protection Circuits
- DC-DC Converters
- Power Supply Units
- Automotive Electronic Systems
- Motor Drive Circuits
- Industrial Low Voltage Control Equipment
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE40P40K RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-252-2L package and surface mounting design.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
