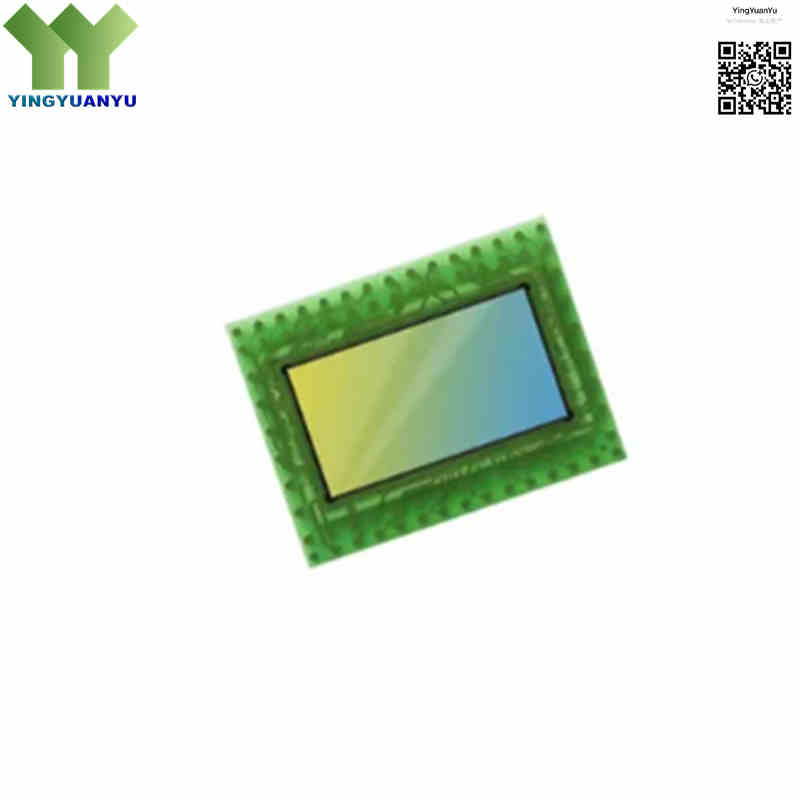

OS04A10-J72A-1B
OS04A10-J72A-1B
| Part Number | OS04A10-J72A-1B |
|---|---|
| Manufacturer | OmniVision Technologies |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 4 Megapixel PureCel®Plus‑S CMOS Image Sensor, 2688 x 1520 Resolution, Nyxel® NIR Technology, 72‑Pin CSP Fan‑out Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
OS04A10‑J72A‑1B is OmniVision’s 4‑MP stacked CMOS image sensor built on PureCel®Plus‑S technology. Featuring Nyxel® NIR enhancement, it delivers excellent low‑light and near‑infrared performance for surveillance, smart home and AI vision devices. It supports 30fps full‑resolution output, housed in compact 72‑pin CSP fan‑out package.
Core Advantages
Superior NIR & Low‑Light Performance
High quantum efficiency: 60%@850nm, 40%@940nm, improves night‑vision and lowers IR LED power consumption.
DCG High Dynamic Range
Dual conversion gain architecture achieves high‑dynamic‑range output for complex mixed‑lighting scenes.
4‑MP 2.9 um Pixel
2688×1520 resolution, 1/1.79‑inch optical format, well‑suited for face recognition and license‑plate capture.
Compact CSP Fan‑out Package
72‑pin chip‑scale package reduces board space, ideal for compact battery‑powered camera modules.
Key Specifications
| Brand | OmniVision Technologies |
|---|---|
| RoHS Status | Lead‑Free / RoHS Compliant |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 72‑Pin CSP Package |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | OS04A10 |
| Active Array Size | 2688 x 1520 (4 Megapixel) |
| Pixel Size | 2.9 um x 2.9 um |
| Optical Format | 1/1.79″ |
| Image Area | 7841.6 um × 4454.4 um |
| Maximum Frame Rate | 30 fps @ 2688 x 1520 |
| Output Interface | MIPI CSI‑2 2‑/4‑lane / LVDS |
| Output Data Format | 12‑bit RAW RGB, HDR combined RAW |
| Analog Supply Voltage | 2.8 V |
| Digital Core Voltage | 1.2 V |
| I/O Supply Voltage | 1.8 V |
| Active Power Consumption | 300 mW Typical |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +105°C |
| Shutter Type | Rolling Shutter |
Typical Applications
- Professional Indoor and Outdoor IP Surveillance Cameras
- Smart Home Security Cameras and Video Doorbells
- AI Edge Analytics Cameras and Facial Recognition Systems
- Industrial Inspection and Machine Vision Equipment
- Action Cameras, Dashcams and Vehicle Monitoring Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the resolution and optical format of OS04A10‑J72A‑1B?
A: 4‑megapixel 2688 × 1520 array, 1/1.79‑inch optical format, 2.9 um pixel size.
Q2: What advantages does Nyxel® NIR technology provide?
A: Boosts near‑infrared quantum efficiency for clearer night‑vision, lowers IR LED power consumption.
Q3: What output interfaces are supported?
A: MIPI CSI‑2 2‑/4‑lane and LVDS for ISP connection.
Q4: What do the part suffixes mean? Are there other variants?
A: ‑J72A = 72‑pin fan‑out CSP package; ‑1B = color version. Monochrome OS04A10‑J72A‑0B shares identical pinout and package, without color filter array.
Q5: What are functional alternative sensors for OS04A10‑J72A‑1B?
A: No direct pin‑to‑pin drop‑in replacement. Similar options: SmartSens SC4236, OV2735. PCB redesign and ISP tuning are required for migration.
Q6: What shutter type is used and any design note?
A: Rolling shutter. Motion distortion may occur when capturing fast‑moving objects.
Q7: How can I get datasheet, pinout and bulk price?
A: Submit quick inquiry for datasheets, CAD files and volume quotation. Response within 24 hours.
