PPC405EP-3LB266C
PPC405EP-3LB266C
| Part Number | PPC405EP-3LB266C |
|---|---|
| Manufacturer | AMCC / IBM (Applied Micro Circuits Corporation) |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors |
| Description | 32‑Bit Embedded PowerPC 405EP Microprocessor, 266MHz, Integrated SDRAM Controller, Dual Ethernet MACs, PCI Interface, 385‑E‑PBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The PPC405EP‑3LB266C is a 266MHz 32‑bit PowerPC 405 RISC embedded processor built on 0.18μm CMOS process. Designed by IBM and marketed by AMCC, this SoC integrates dual 10/100 Ethernet MACs, PCI 2.2 (up to 66MHz), SDRAM and EBC memory controllers. Packaged in 385‑ball E‑PBGA (31×31mm), it is widely used in networking, telecom and industrial embedded systems.
Core Advantages
High‑Efficiency 32‑Bit PowerPC 405 RISC Core
Delivers 266MHz performance with hardware multiply/divide instructions. Equipped with 16KB I‑cache, 8KB D‑cache and 4KB on‑chip OCM memory for low‑power embedded operation.
Rich Integrated Peripherals
Built‑in dual 10/100 Ethernet MACs, PCI 2.2, dual UART, I2C and 4‑channel DMA. Reduces external component count for system design.
Flexible Memory Subsystem
Integrated SDRAM controller and EBC external bus interface support SRAM, Flash and various peripheral devices.
Proven Reliability for Embedded Applications
Mature architecture supports long‑term stable operation for network routers, industrial controllers and storage equipment.
Key Specifications
| Brand | AMCC / IBM |
|---|---|
| RoHS Status | Standard Lead‑Based / RoHS Compliant Options Available |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 385‑PBGA (Ball Grid Array, 31mm x 31mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

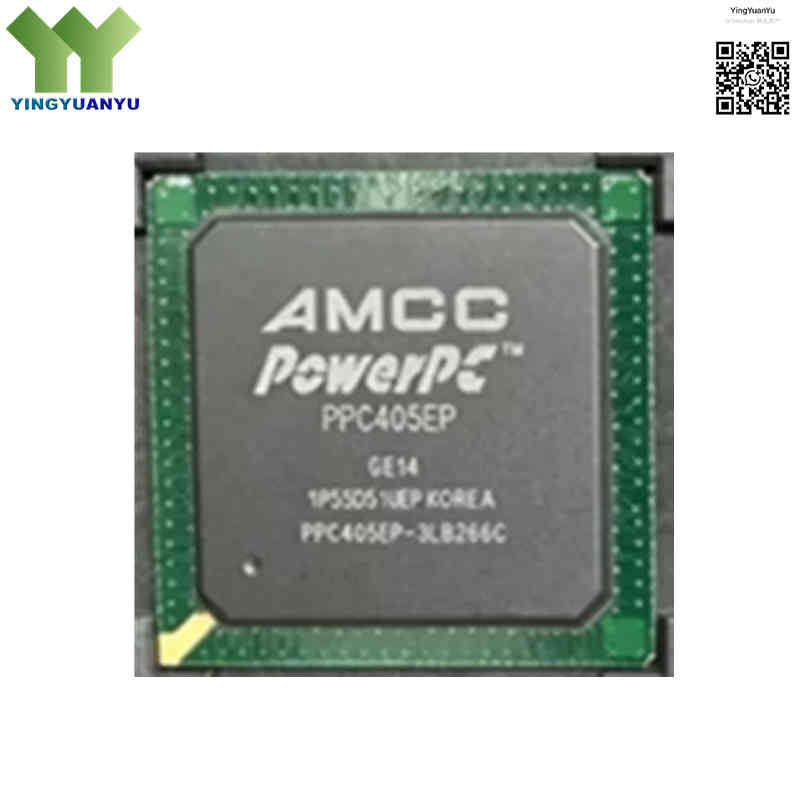

| Surface Marking / Silkscreen | PPC405EP‑3LB266C / AMCC Logo |
| Core Architecture | PowerPC 405 32‑Bit RISC |
| Clock Frequency Speed | 266 MHz |
| Cache Memory | 16 KB Instruction Cache / 8 KB Data Cache; 4KB On‑Chip Memory (OCM) |
| Core Voltage | 1.8V Core Supply (operating range:1.65V‑1.95V) |
| I/O Supply Voltage | 3.3V I/O Tolerant |
| Operating Temperature | 0°C to +70°C (Commercial Grade, suffix‑C); Industrial variant‑I:‑40°C to +85°C |
| Peripherals & Interfaces | Dual 10/100 Ethernet MAC(MII), PCI 2.2 (up to 66MHz), SDRAM Controller, EBC External Bus, Dual UART, I2C, 4‑Channel DMA, GPIO, JTAG, Watchdog Timer |
| Typical Power Consumption | 0.72W @ 266MHz |
| Manufacturing Process | 0.18μm CMOS SA‑27E |
Typical Applications
- Networking Routers, Security Gateways, and Enterprise Switches
- Industrial Automation Controllers and Programmable Logic Controllers (PLCs)
- Telecommunication Access Equipment and Base Station Controllers
- Storage Area Network (SAN) Management and Storage Controllers
- Print Servers, Network‑Attached Storage (NAS), and Embedded Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What core architecture does PPC405EP‑3LB266C adopt?
A: It features a 32‑bit PowerPC 405 RISC core running at 266 MHz, manufactured on 0.18μm CMOS process.
Q2: What is the package of PPC405EP‑3LB266C?
A: 385‑ball E‑PBGA, 31 mm × 31 mm surface‑mount package. Package suffix “LB” stands for this E‑PBGA form factor.
Q3: Does PPC405EP‑3LB266C have built‑in Ethernet controllers?
A: Yes, dual 10/100Mbps Ethernet MACs with MII interface are integrated on‑chip.
Q4: What do the suffixes ‑3LB266C mean?
A: 3 = 266 MHz clock speed; LB = 385‑E‑PBGA package; C = commercial temperature grade (0°C~+70°C). Suffix‑I denotes industrial grade (-40°C~+85°C).
Q5: What are compatible alternative parts for PPC405EP‑3LB266C?
A: Similar alternatives: PPC405GP, PPC405GPr. Important: These are pin‑incompatible. You cannot swap them directly on existing PCB; hardware and firmware modifications are required.
Q6: What is the key difference between PPC405EP and PPC405GP?
A: PPC405EP integrates dual Ethernet MACs, while PPC405GP only has one Ethernet MAC. Their pin‑outs differ, direct PCB replacement is not supported.
Q7: Can different package suffixes of PPC405EP be used interchangeably?
A: No. Different suffixes correspond to different ball counts and package dimensions. They are not pin‑compatible and cannot be substituted without board redesign.
Q8: Does PPC405EP‑3LB266C support PCI 66MHz operation?
A: Yes, PCI Revision 2.2 supports up to 66MHz bus speed, subject to motherboard circuit configuration.
Q9: What is the typical power consumption of PPC405EP‑3LB266C?
A: Typical power dissipation is 0.72W at 266MHz operating frequency.
Q10: Is there an industrial‑temperature version of PPC405EP‑3LB266C?
A: Yes, the industrial variant uses suffix‑I, operating from -40°C to +85°C. The‑C suffix version is commercial grade only.
Q11: How do I get datasheet, pin‑out diagram or quotation?
A: Request datasheets, footprint drawings, stock status and bulk pricing via our Quick Inquiry form.
