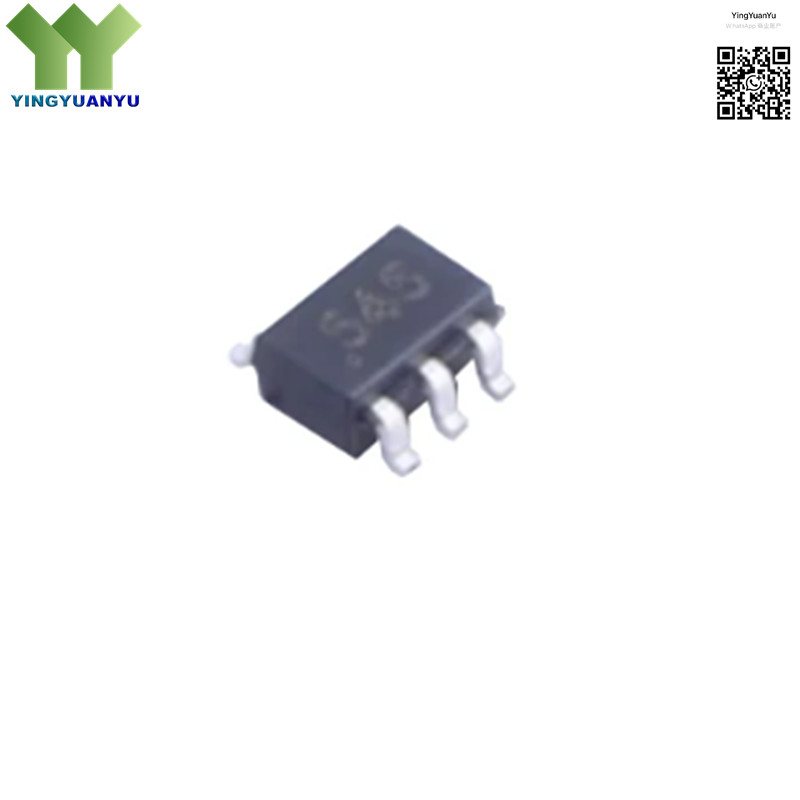

PSA-5451+
PSA-5451+
| Part Number | PSA-5451+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Amplifiers; Low Noise Amplifier (LNA) |
| Description | Ultra-Low Noise MMIC Amplifier, 50MHz to 4GHz, 3V, SOT-363 Package |
Product Overview
The PSA-5451+ is an E-PHEMT-based ultra-low noise MMIC amplifier designed for high-performance RF receiver front-end applications. Operating across a wide frequency range of 50 MHz to 4 GHz, it delivers an exceptional combination of ultra-low noise figure (0.7 dB typical), high linearity (29 dBm IP3), and moderate power consumption. The device is internally matched to 50 ohms, requires no external matching components, and operates from a single 3V supply at only 30 mA. Housed in a compact SOT-363 (SC-70-6) surface-mount package, it offers excellent thermal efficiency and space-saving integration for portable, wireless, and high-frequency communication systems.
| Key Specifications | |
|---|---|
| Brand | Mini-Circuits |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOT-363 (SC-70-6, 6-VSSOP) |
| Mounting Type | Surface Mount (SMD) |
| Frequency Range | 50 MHz to 4 GHz |
| Gain (Typical) | 18.8 dB @ 1 GHz |
| Noise Figure (Typical) | 0.7 dB @ 0.5 GHz |
| Input IP3 (Typical) | 29 dBm @ 1 GHz |
| P1dB Output Power | 16.8 dBm (Typical) |
| Supply Voltage | 3 V |
| Supply Current | 30 mA (Typical) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Low Noise Receiver Front-Ends (RFE)
- Wireless Communication Systems (GSM, LTE, WCDMA)
- ISM Band Applications (2.4 GHz, 5.8 GHz)
- Wi-Fi, WiMAX, and WLAN Modules
- RF Signal Conditioning & Amplification
- Portable & Battery-Powered Devices
- High-Frequency Test & Measurement Equipment
- Satellite & Microwave Communication Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
