REF2030AIDDCR
REF2030AIDDCR
| Part Number | REF2030AIDDCR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) > PMIC – Voltage Reference |
| Description | Dual-output, low-drift, low-power, high-precision series voltage reference providing a 3.0V primary reference output alongside an isolated VREF/2 bias voltage, housed in a thin SOT-23 package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The REF2030AIDDCR is a low-drift, low-power dual-output voltage reference from Texas Instruments for single-supply signal conditioning. It delivers stable 3.0V VREF and matched buffered 1.5V VREF/2 bias output, eliminating external op-amps and resistor dividers for differential ADC/DAC inputs. With typical 8 ppm/°C temperature coefficient and ±0.05% max initial accuracy, it maintains stable precision across -40°C to +125°C industrial range. Ultra-low 10mV dropout only requires minimal supply headroom, extending battery runtime. Compact SOT-23-5 package fits space-limited sensor signal circuits, portable DAQ and precision control systems.
Core Advantages
Integrated Dual-Output Precision (VREF and VREF/2)
Natively delivers a 3.0V reference coupled with an isolated, buffered 1.5V bias output, eliminating external circuit components needed for mid-point referencing in differential data converter systems.
Excellent Thermal Stability
Features a low temperature drift specification of 8 ppm/°C (typical) across a wide industrial thermal spectrum, guaranteeing reliable, long-term precision without calibration shift issues.
Highly Compressed Low-Dropout Performance
Exhibits an ultra-low dropout voltage rating of just 10mV at low loads, allowing developers to design tight voltage regulation margins and extract maximum operation duration from battery systems.
Minimized Board Area and BOM Overhead
Consolidates reference generation, voltage division, and decoupling buffer amplifier blocks into a singular miniature SOT-23 structure, directly reducing board footprint overhead and component cost.
Key Specifications
| Brand | Texas Instruments (TI) |
|---|---|
| Output Type | Fixed Dual Voltage Reference |
| RoHS Status | RoHS Compliant / Lead-Free / Green Package Material Envelope |
| EDA/CAD Model | 3D CAD Model & PCB Layout Footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | SOT-23-5 / TSOT-23-5 |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

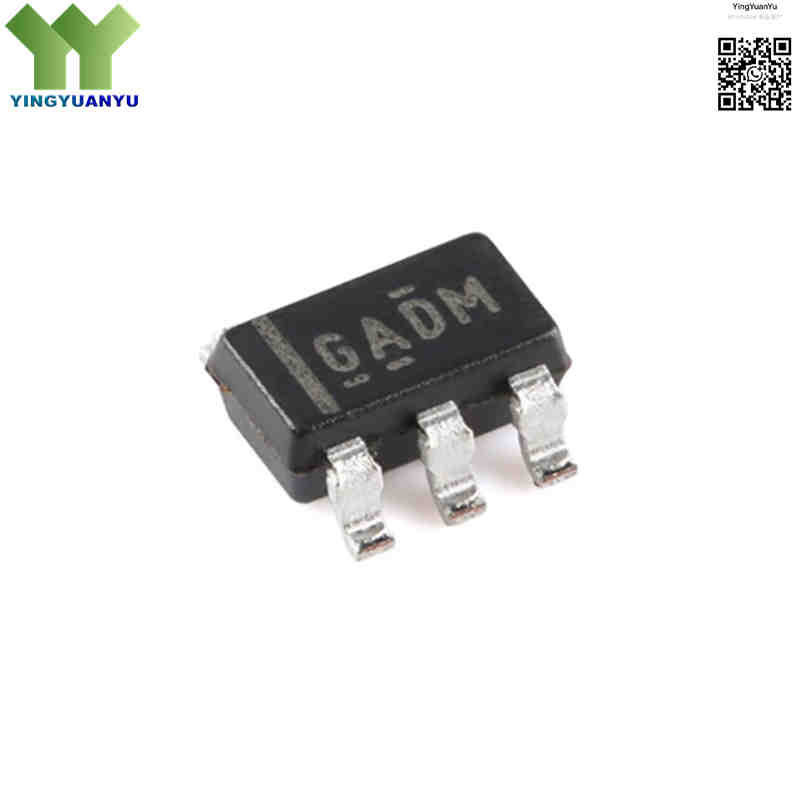

| Surface Marking / Silkscreen | GADM Marking |
| Reference Type | Series, Dual-Output Reference Core |
| Primary Output Voltage (VREF) | 3.0 V |
| Bias Output Voltage (VBIAS) | 1.5 V (VREF/2) |
| Output Current | 20mA |
| Initial Output Accuracy | ±0.05% Maximum (High Precision Grade) |
| Temperature Coefficient (Drift) | 8 ppm/°C (Typical) / 20 ppm/°C (Maximum) |
| Input Voltage Range (VIN) | 3.02 V to 5.5 V DC Power Supply Input |
| Maximum Output Current | ±20 mA Source/Sink Capability (VREF) / ±20 mA Source/Sink (VBIAS) |
| Quiescent Operating Current (IQ) | 360 μA Typical / 460 μA Maximum |
| Operating Temperature Range | -40°C to +125°C (Extended Industrial Temperature Window) |
| Minimum Order Reel Quantity | 3000 Pieces per Tape & Reel |
Typical Applications
- Precision Biasing and Reference Generation for High-Resolution 16-Bit / 24-Bit ADCs and DACs
- Portable Instrumentation, Medical Monitors, and Remote Battery-Powered Diagnostic Devices
- Industrial Process Automation Control Loops, PLC Transmitters, and Test Bench Equipment
- Automotive Sensor Interfaces, Electronic Control Unit (ECU) Data Logging, and Powertrain Modules
- Precision Weight Scales, Strain Gauge Signal Conditioners, and Smart Pressure Transducers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your current stock of the REF2030AIDDCR 100% original and genuine factory stock?
A: Yes, we guarantee that all REF2030AIDDCR units in our warehouse are 100% brand-new, genuine components sourced directly from Texas Instruments. Every batch features clean lot codes and is stored and shipped in strict compliance with moisture-barrier and antistatic ESD protocols.
Q2: What is the main design benefit of having both a VREF and a VREF/2 output on the same IC?
A: Modern high-resolution data converters running on single-ended power rails require a stable reference voltage for full-scale measurement along with a mid-supply common-mode voltage (VREF/2) to bias differential analog input signals. Conventionally, this requires external resistor networks and voltage-follower operational amplifiers, which introduce drift errors. The REF2030AIDDCR provides both on a single substrate, ensuring thermal matching and reducing the external bill of materials (BOM).
Q3: What is the dropout voltage constraint for this chip when operating close to a 3.0V output target?
A: The REF2030AIDDCR is a low-dropout (LDO) series reference requiring very little operational headroom. Under zero-load conditions, the minimum headroom is essentially negligible, and it tracks at approximately 10mV under standard 5mA loads. This feature allows it to provide a highly stable 3.0V output even if the input battery rail drops down to 3.02V.
Q4: How can our technical division request an official PDF datasheet, step models, or request volume price quotes?
A: Please submit your request through our Quick Inquiry form available on this product profile page. Our customer and technical engineering support desks will process your criteria and respond within 24 hours.
