S9S08DZ60F2MLC
S9S08DZ60F2MLC
| Part Number | S9S08DZ60F2MLC |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers / Automotive MCUs |
| Description | High-reliability 8-bit automotive microcontroller featuring an enhanced HCS08 core clocked up to 40MHz, 60 KB Flash, 2 KB EEPROM, 4 KB RAM, integrated MSCAN (CAN 2.0B) controller, and 24-channel 12-bit SAR ADC, housed in a 32-pin LQFP package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
S9S08DZ60F2MLC is an integrated 8-bit automotive MCU from NXP MC9S08DZ60 series, designed for vehicle body electronics, automotive sensors and industrial control nodes. Equipped with enhanced HCS08 core (40MHz CPU / 20MHz bus), 60KB program Flash, 4KB RAM and independent 2KB byte-erasable EEPROM for parameter storage. It integrates MSCAN CAN2.0B bus and 24-channel 12-bit SAR ADC for multi-sensor collection. Packaged in compact 32-pin LQFP, it meets AEC-Q100 Grade 1 for wide temperature automotive working conditions.
Core Advantages
Hardware MSCAN 2.0B Interface Integration
Built-in CAN controller with independent filters and multi-level transmit/receive buffers, realizing fast automotive bus communication with low CPU load.
Dedicated True Byte-Erasable Data EEPROM
2KB independent EEPROM supports single-byte rewrite, 100,000 times erase-write cycles, stores calibration data without occupying program Flash.
High-Channel Precision Analog Interfacing
24-channel 12-bit SAR ADC with built-in comparison function, supporting multi-channel sensor sampling and automatic threshold judgment.
AEC-Q100 Grade 1 Compliance Framework
Automotive-grade certified, stable operation in -40°C ~ +125°C extreme temperature environment.
Key Specifications
| Brand | NXP Semiconductors S08 Automotive Microcontroller Series |
|---|---|
| Manufacturer Part No. | S9S08DZ60F2MLC |
| RoHS Status | RoHS Compliant / Lead-Free / Green Halogen-Free Materials Verified |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and Pinout Footprint Configurations available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 32-LQFP (7mm × 7mm × 0.80mm) |
| Mounting Type | Surface Mount |

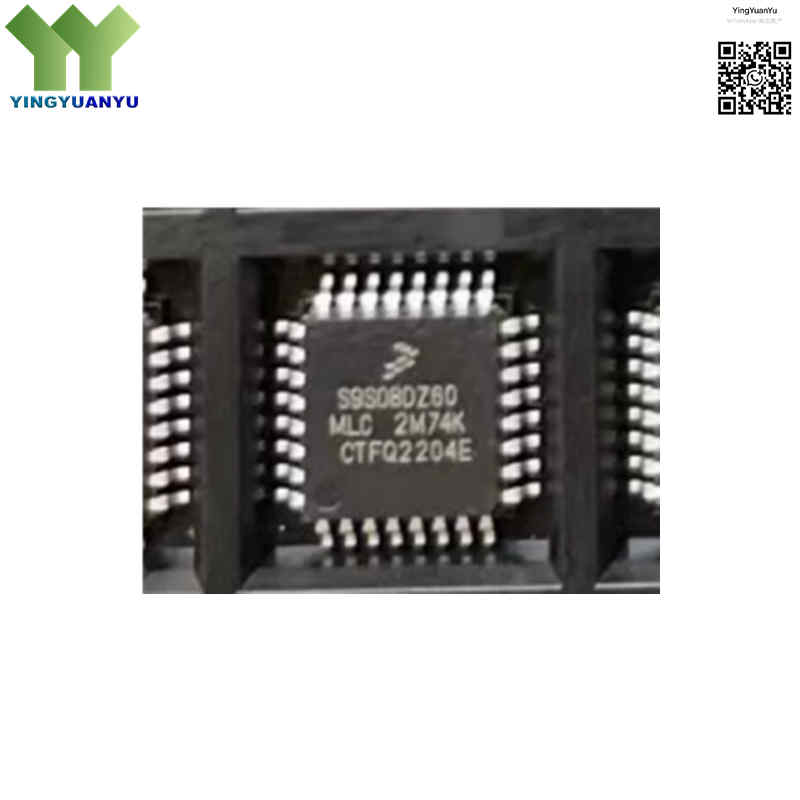

| Surface Marking / Silkscreen | S9S08DZ60MLC Marking |
| Core Architecture Processor | 8-Bit Enhanced HCS08 Processing Engine with active Background Debug Mode (BDM) |
| Maximum Clock Speed Frequency | 40 MHz CPU Core / 20 MHz Bus Operating Threshold |
| Program Memory Type | Flash Non-Volatile Memory |
| On-Chip Flash Memory Space | 60 KB (61,440 Bytes) Non-Volatile Program Flash with advanced sector protection |
| On-Chip RAM Memory Space | 4 KB (4,096 Bytes) Internal Static RAM |
| On-Chip Data EEPROM Capacity | 2 KB (2,048 Bytes) true byte-writable data memory block, 100,000 erase/write cycles |
| Total GPIO I/O Count | 25 General Purpose I/O Pins (Multiplexed with Analog & Communication Peripherals) |
| Integrated Networking Ports | 1x MSCAN (CAN 2.0B), 1x SCI/LIN interface, 1x SPI serial link, 1x I2C bus module |
| Analog Converter Module | 16-Channel, 12-Bit Successive Approximation (SAR) ADC with automatic compare features, 2.5μs conversion time, internal temperature sensor & bandgap reference |
| Additional On-Chip Peripherals | 8-channel PWM generator, Independent Watchdog Timer (WDT), Power-On Reset (POR), Low Voltage Detect (LVD) |
| Oscillator Support | Internal RC Oscillator + External Crystal Oscillator Input |
| Operating Input Supply Voltage | 2.7 V to 5.5 V Single Supply Range (optimized for stable 5.0V vehicle batteries) |
| Operating Temperature Range | -40°C to +125°C Ambient Automotive AEC-Q100 Grade 1 Standard |
Typical Applications
- Automotive Door Modules, Window Lifters, Seat Adjusters, and Electronic Sunroof Controllers
- Compact Vehicle Instrument Clusters, Climate Control HVAC Knobs, and Under-dash Smart Switches
- Localized Industrial CAN Sensor Nodes, Distributed Factory Machinery Links, and Valve Actuators
- Commercial Telematics Modules, Fleet Tracking Gateways, and Automated Environmental Data Loggers
- Medical Fluid Dosing Units, Patient Care Diagnostic Telemetry Trays, and Secure Lab Controls
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is S9S08DZ60F2MLC 100% original new stock?
A1: All MCUs are brand new genuine NXP original parts. We inspect batch codes under ESD protection and ship in original anti-static trays to prevent pin deformation.
Q2: What does the suffix F2 mean for this part?
A2: F2 refers to Mask Set 2, featuring optimized clock circuit, enhanced Flash security and stronger anti-interference performance for automotive harsh environments.
Q3: Why does the datasheet mention 16 ADC channels for this 32-pin LQFP chip?
A3: This 32-LQFP package hardware only supports 16 analog ADC inputs. The 24-channel spec belongs to 48-pin larger package variants; pins support multiplexing between ADC input and GPIO via internal register configuration.
Q4: How to get datasheet, development tools and bulk quotation?
A4: Submit your demand through our inquiry form. Our automotive MCU technical team will send datasheets and exclusive bulk prices within 24 hours.
Q5: What is the minimum order quantity (MOQ)? Can I order samples?
A5: MOQ is 1 piece, small sample orders are supported. Sample stock can be checked via inquiry form.
Q6: What is the warranty period of the IC?
A6: We provide 1-year quality warranty for all original NXP microcontrollers.
Q7: Does this chip support CAN 2.0B bus communication?
A7: Yes, it integrates MSCAN module fully compliant with CAN 2.0B standard, widely used for automotive control systems.
Q8: Are compatible replacement parts available if this model is out of stock?
A8: We have 8 alternative compatible models in stock. Contact us to get cross-reference comparison list.
Q9: Is this MCU AEC-Q100 Grade 1 qualified for automotive applications?
A9: Yes, it meets AEC-Q100 Grade 1 standard, working stably from -40°C to +125°C automotive temperature range.
