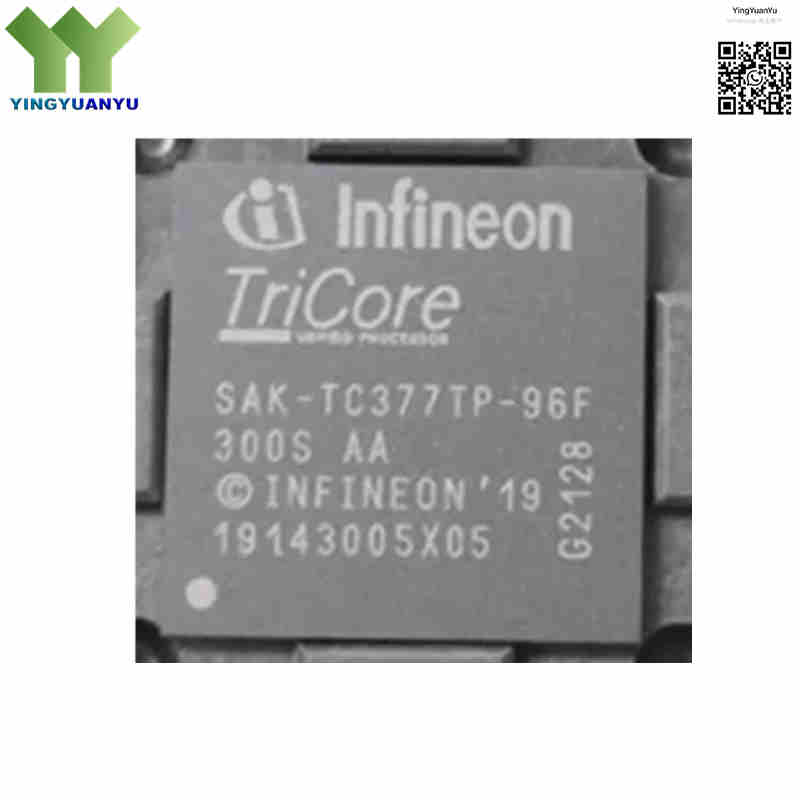

SAK-TC377TP-96F300S AA
SAK-TC377TP-96F300S AA
| Part Number | SAK-TC377TP-96F300S AA |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded > Microcontrollers (MCU) > Automotive Microcontrollers |
| Description | AURIX™ TC3xx Family 32‑bit TriCore™ Microcontroller, Triple 300MHz Cores, 6MB Flash, ASIL‑D Functional Safety, PG‑LFBGA‑292 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The SAK‑TC377TP‑96F300S AA is Infineon AURIX™ TC3xx automotive 32‑bit TriCore™ MCU. It features triple 300 MHz cores with dual lockstep, 6 MB ECC Flash and 1.1 MB ECC SRAM. Supporting ISO 26262 ASIL‑D safety grade and EVITA‑Full HSM security module, it integrates Gigabit Ethernet, 8‑channel CAN FD, FlexRay and multi‑channel ADC. Packaged in PG‑LFBGA‑292 (19×19 mm), it serves EV powertrain, BMS, ADAS domain controller and safety‑critical industrial control.
Core Advantages
High‑Performance Triple‑Core
Triple 300 MHz TriCore™ with FPU, dual‑core lockstep, delivers high throughput for real‑time automotive domain control.
ASIL‑D Functional Safety
Lockstep CPU, memory ECC and built‑in BIST hardware meet ISO 26262 ASIL‑D for safety‑critical vehicle systems.
EVITA‑Full Hardware Security
Integrated HSM supports secure boot, AES/ECC/SHA acceleration and secure OTA firmware upgrade to defend automotive network threats.
Rich Automotive‑Grade Peripherals
Gigabit Ethernet, 8×CAN FD, FlexRay, LIN, QSPI and multi‑channel ADC, well‑suited for modern zonal vehicle electronic architecture.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| Series | AURIX™ TC3xx (TC377TP) |
| RoHS Status | RoHS Compliant / AEC‑Q100 Qualified |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PG‑LFBGA‑292 (19×19 mm, 0.8mm Ball Pitch) |
| Mounting Type | Surface Mount (SMT) |
| Surface Marking / Silkscreen | SAK-TC377TP-96F300S AA / Infineon Logo,Marking |
| Core Architecture | 32‑Bit TriCore™ v1.6.2 (Triple Cores, Dual Lockstep Support) |
| Maximum Clock Frequency | 300 MHz |
| Program Flash Memory | 6 MB (6144 KB) Embedded Flash with ECC |
| SRAM / RAM Capacity | 1.1 MB (992 KB) Internal SRAM including Cache, with ECC |
| Functional Safety Level | ISO 26262 ASIL‑D Capable, IEC 61508 SIL‑3 |
| Security Module | EVITA Full HSM Hardware Security Module |
| A/D Converter (ADC) | 18‑Channel Multi‑Channel 12‑Bit SAR ADC & Fast Delta‑Sigma Converters |
| Communication Interfaces | Gigabit Ethernet, 8x CAN FD, 1x FlexRay, 12x ASCLIN (LIN), 5x QSPI, PSI5, SENT |
| DMA Channels | 128‑Channel DMA Controller |
| Operating Supply Voltage | 3.3 V / 5.0 V I/O, 1.125V‑1.375 V Core Supply |
| Operating Temperature Range | -40°C to +125°C (Automotive Grade) |
| Autosar Version Support | AUTOSAR 4.2.x Compliant |
Typical Applications
- Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) Inverter & Motor Control Units
- Battery Management Systems (BMS) and On‑Board Chargers (OBC)
- Advanced Driver Assistance Systems (ADAS) radar/sensor fusion and domain controllers
- Engine Control Units (ECU), transmission control, and chassis safety platforms
- Industrial automation, robotics, and high‑reliability functional safety controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Which product family does SAK‑TC377TP‑96F300S AA belong to?
A: It belongs to Infineon second‑generation AURIX™ TC3xx 32‑bit automotive MCU family for high‑reliability vehicle and industrial safety applications.
Q2: What functional safety level can this MCU achieve?
A: Supports ISO 26262 ASIL‑D and IEC 61508 SIL‑3, equipped with lockstep cores, memory ECC and built‑in BIST self‑test hardware.
Q3: What security features are integrated?
A: Built‑in EVITA‑Full HSM hardware security module, supporting secure boot, AES/ECC/SHA encryption acceleration and secure OTA firmware update.
Q4: What do suffix TP and AA stand for?
A: TP = triple‑core configuration with HSM enabled. AA = automotive‑grade temperature grade ‑40℃ ~ +125℃, PG‑LFBGA‑292 package variant.
Q5: What is the difference between TC377TP and TC377TE?
A: TC377TP: 8‑channel CAN FD, HSM enabled; TC377TE: 12‑channel CAN FD. They are not drop‑in replacements. Hardware and software modification is required for migration.
Q6: Are there compatible alternative part numbers?
A: SAK‑TC377TP‑96F300S BA is an alternative with different temperature grade. For larger flash capacity, check TC378 series. Always confirm pin‑to‑pin compatibility from official datasheet before replacement.
Q7: What is its operating temperature range?
A: Automotive grade operating temperature: -40°C to +125°C.
Q8: How can I get datasheet, evaluation board or bulk quotation?
A: Submit an inquiry form for datasheets, BSDL files, sample availability and volume pricing.
