SAK-XC2224L-20F66V AA
SAK-XC2224L-20F66V AA
| Part Number | SAK-XC2224L-20F66V AA |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |
| Description | 16/32-Bit Single-Chip Microcontroller, C166SV2 Core, 66 MHz, 160 KB Flash, PG-VQFN-48 Package, End‑of‑Life. |
| Stock Status | In Stock |
| Origin | Original Factory |
| Product Status | End‑of‑Life (Discontinued) |
Product Overview
The SAK‑XC2224L‑20F66V AA is a 16/32‑bit automotive MCU from Infineon XC2200L family. Featuring C166SV2 core up to 66 MHz, 160 KB Flash and 10 KB user‑accessible SRAM (total on‑chip 12 KB). Designed for automotive body & comfort control, it delivers real‑time performance in compact PG‑VQFN‑48 (7×7 mm) package. Note: This part is End‑of‑Life (discontinued) by manufacturer.
Core Advantages
Efficient C166SV2 Core
5‑stage pipeline C166SV2 core runs up to 66 MHz, offering fast interrupt response for real‑time control.
Automotive‑Grade Reliability
AEC‑Q100 qualified, operating from -40°C to +125°C for harsh automotive environments.
Compact SMD Package
Small PG‑VQFN‑48 (7×7 mm) footprint, good thermal and electrical performance.
Rich Integrated Peripherals
Multi‑channel USIC supporting CAN/LIN/SPI/I2C, 10‑ch 12‑bit ADC, PWM and DMA controller.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PG‑VQFN‑48 (7×7 mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| I/O Count | 33 |

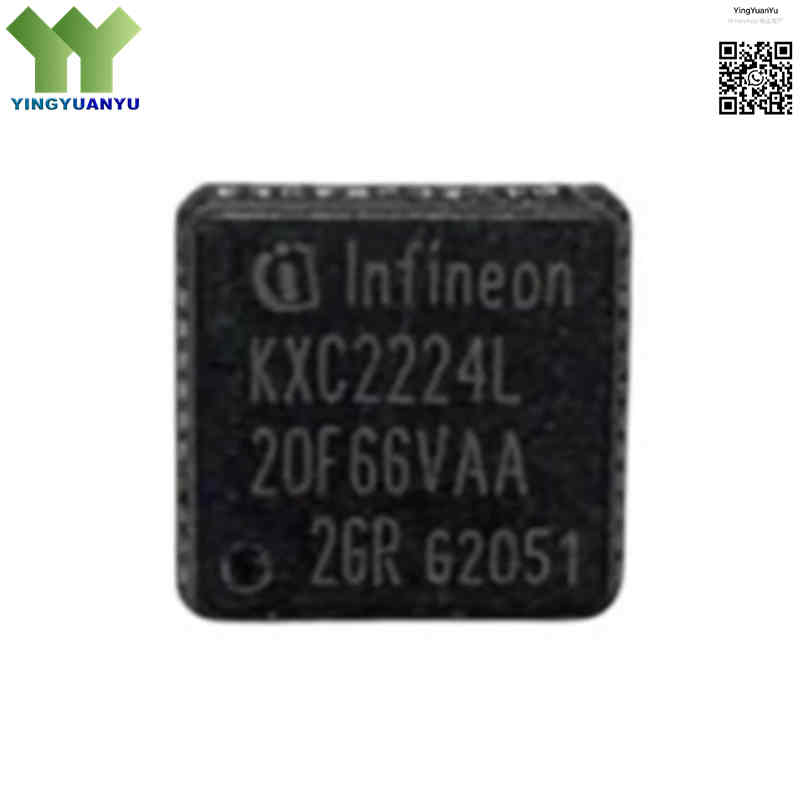

| Surface Marking / Silkscreen | KXC2224L20F66VAA |
| Core Processor | 16/32‑Bit C166SV2 Architecture |
| Max Clock Speed | 66 MHz |
| Program Memory Size | 160 KB Flash |
| RAM Capacity | 10 KB SRAM (10K ×8) |
| Connectivity | CAN, LIN, UART, SPI, I2C, SSC, USI (via USIC modules) |
| Peripherals | 10‑channel 12‑bit ADC, ~13‑channel PWM, Watchdog Timer (WDT), POR, DMA |
| Operating Voltage | 3.0 V to 5.5 V DC |
| Operating Temperature | -40°C to +125°C (Automotive Grade AEC‑Q100) |
Typical Applications
- Automotive Body Control Modules (BCM) and Door Control Units
- HVAC Systems, Climate Control, and Interior Lighting Controllers
- Electric Window Lifts, Sunroof Controllers, and Power Seat Modules
- Automotive Sensor Interface Nodes and LIN Bus Gateway Controllers
- Industrial Compact Automation, Smart Actuators, and Small Motor Controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What processor core and maximum operating speed does SAK‑XC2224L‑20F66V AA use?
A: It adopts Infineon 16/32‑bit C166SV2 core with maximum clock speed of 66 MHz.
Q2: What is the operating temperature range of this MCU?
A: AEC‑Q100 automotive qualified, operating temperature: -40°C to +125°C.
Q3: What package is SAK‑XC2224L‑20F66V AA supplied in?
A: PG‑VQFN‑48 (7×7 mm), 48‑pin SMD package with 33 general‑purpose I/O pins.
Q4: What do suffixes L, 20F, 66V, AA stand for?
A: L=low‑voltage variant; 20F=160 KB Flash; 66V=66 MHz frequency; AA=tape‑and‑reel. AB is tube‑packaged version.
Q5: Are there pin‑compatible variants within XC2200L family?
A: SAK‑XC2214L‑16F66V AA shares the same PG‑VQFN‑48 pin‑out, with 128 KB Flash. Check memory & peripherals before direct substitution.
Q6: What is the difference between PG‑VQFN‑48 and PG‑SDIP‑48?
A: PG‑VQFN‑48 is SMD lead‑less package; PG‑SDIP‑48 is through‑hole DIP. They are not pin‑compatible and cannot be swapped directly.
Q7: What are alternative and competitor models?
A: Pin‑compatible alternative: SAK‑XC2214L‑16F66V AA; higher‑flash option: SAK‑XC2234L‑24F66V AA. Competitor: NXP S12G series for automotive body control.
Q8: Is SAK‑XC2224L‑20F66V AA still in production?
A: No, it is End‑of‑Life (discontinued). Please contact us for suitable replacement solutions.
Q9: Why are there two SRAM values: 10 KB and 12 KB?
A: 10 KB is user‑accessible SRAM; total on‑chip SRAM is 12 KB, including 2 KB system‑reserved area.
Q10: Can this MCU be used for non‑automotive industrial applications?
A: Yes, for small motor & actuator control. Please verify temperature requirements for your industrial project.
Q11: How to get datasheets, manuals or volume pricing?
A: Request datasheets, footprint files and volume offers via our Quick Inquiry form, reply within 24 hours.
